Control Module, Transfer Case

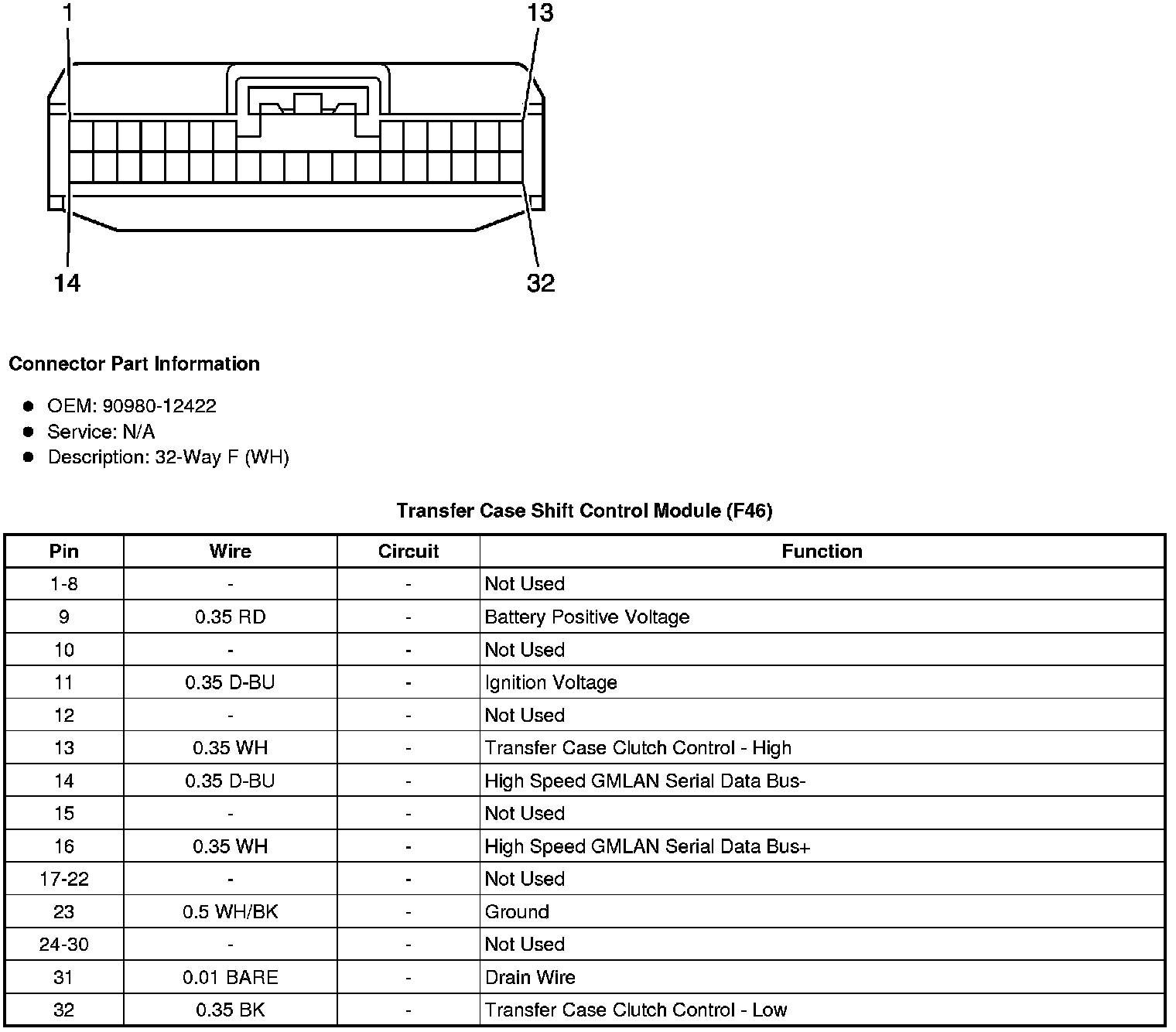

Component Connector End Views

Transfer Case Shift Control Module (F46)
