Control Module HVAC: Service and Repair

HVAC Control Module Replacement

Removal Procedure




1. Disconnect the battery. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair).

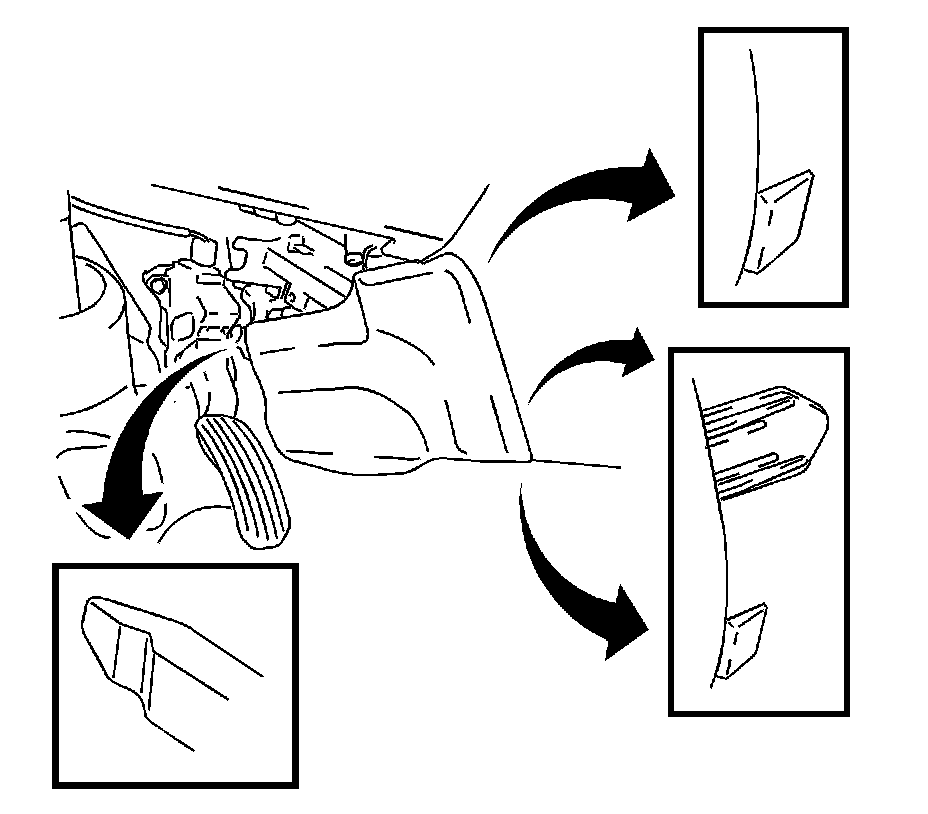

2. Disconnect the three clips and guide, and remove the left front console insert panel.

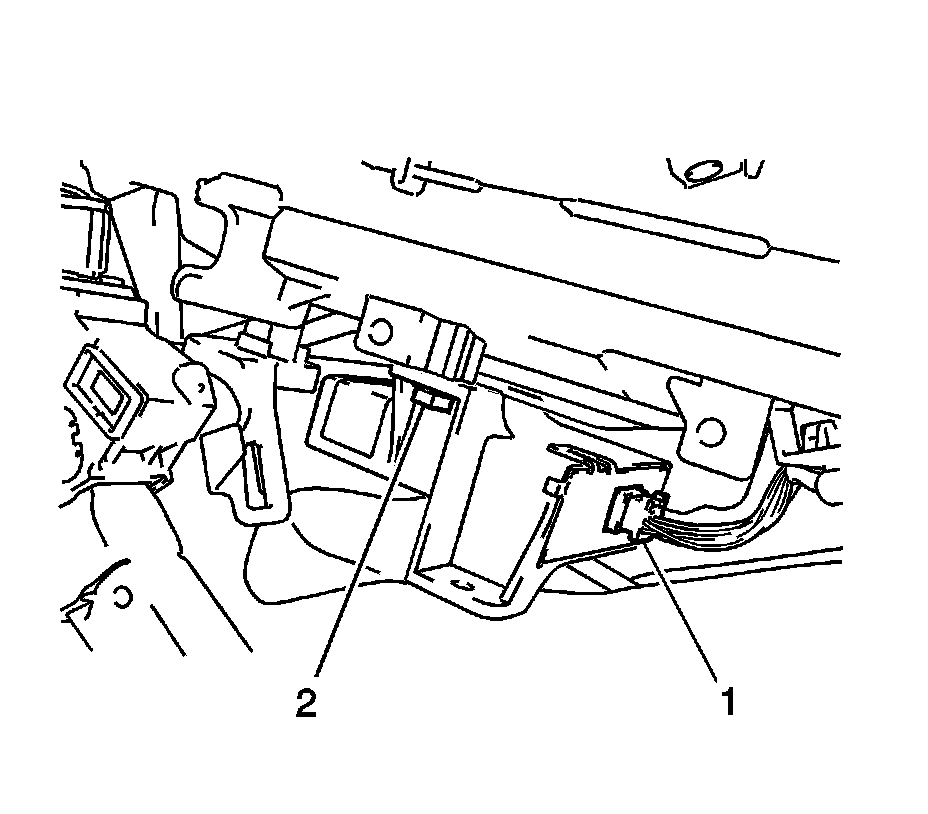

3. Disconnect the electrical connector (2).
4. Remove the screw (1).

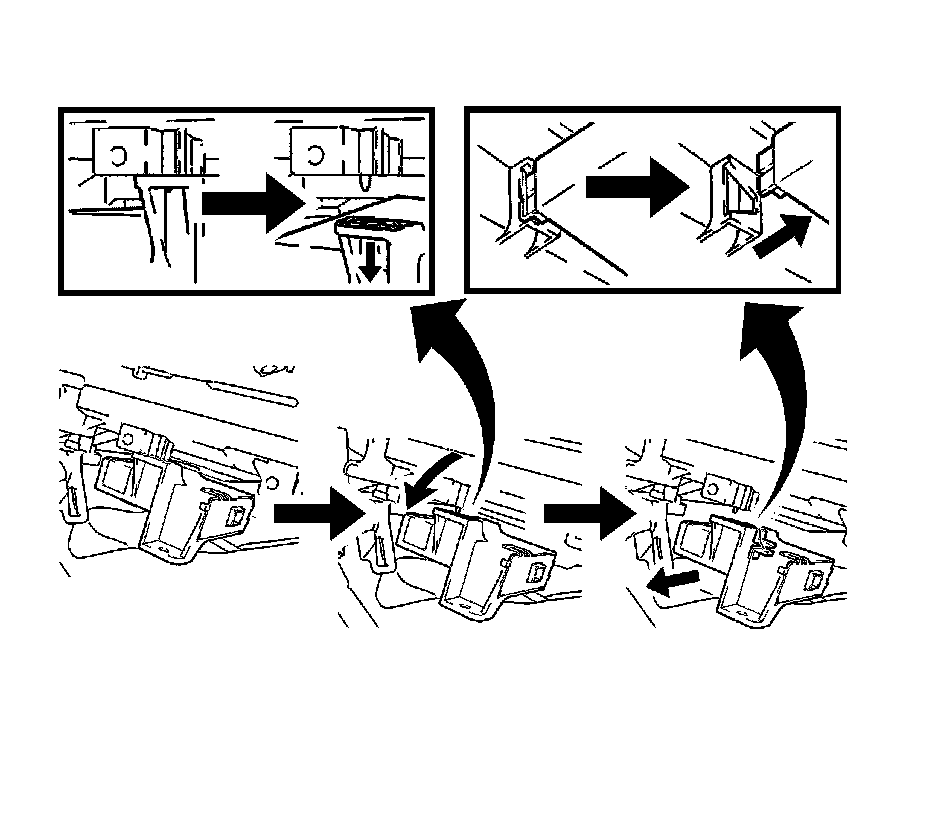

5. Remove the HVAC control module from the vehicle.

Installation Procedure

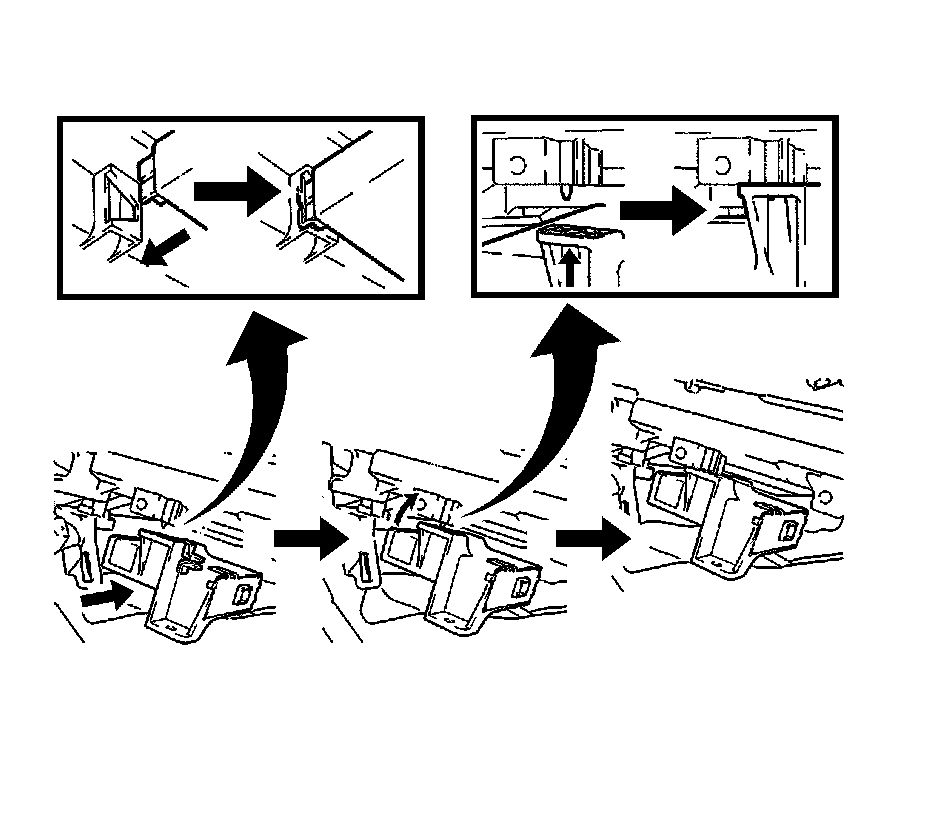

1. Install the HVAC control module from the vehicle.




2. Connect the electrical connector (2).
3. Install the screw (1).




4. Connect the three clips and guide, and install the left front console insert panel.
5. Connect the battery. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair).
