Instrument Panel/Center Console Component Views

Instrument Panel/Center Console Component Views

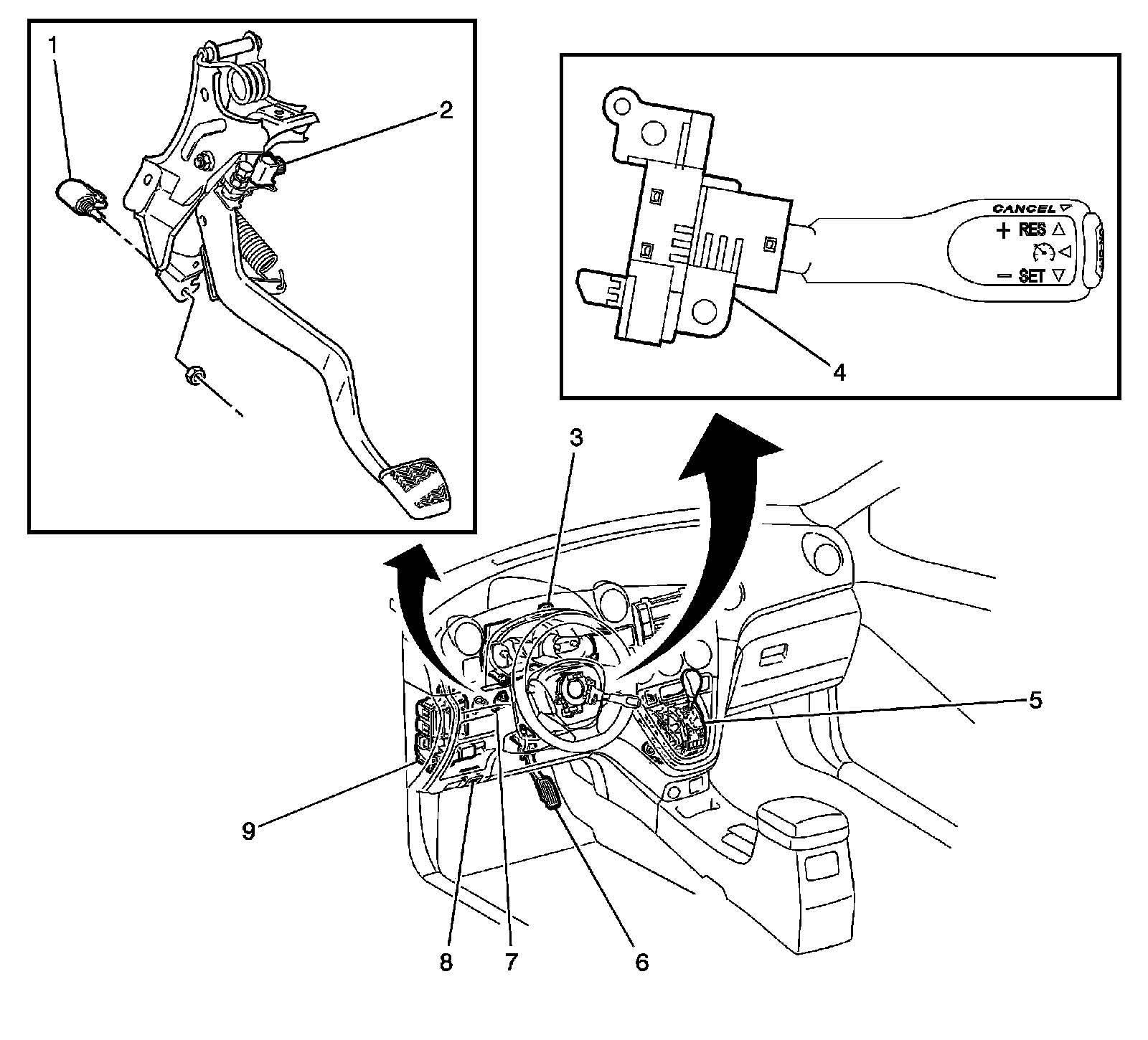

Cruise Control Components




1 - Clutch Start Switch (without K34)
2 - Clutch Start Switch (K34)
3 - Instrument Panel Cluster (IPC)
4 - Cruise Control Switch
5 - Automatic Transmission Shift lever
6 - Accelerator Pedal Position (APP) Sensor
7 - Stop Lamp Switch
8 - Data Link Connector (DLC)
9 - Fuse Block - I/P
