Radiator Cooling Fan Control Module: Service and Repair

Fan Control Module Replacement

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Service Precautions).
1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair).

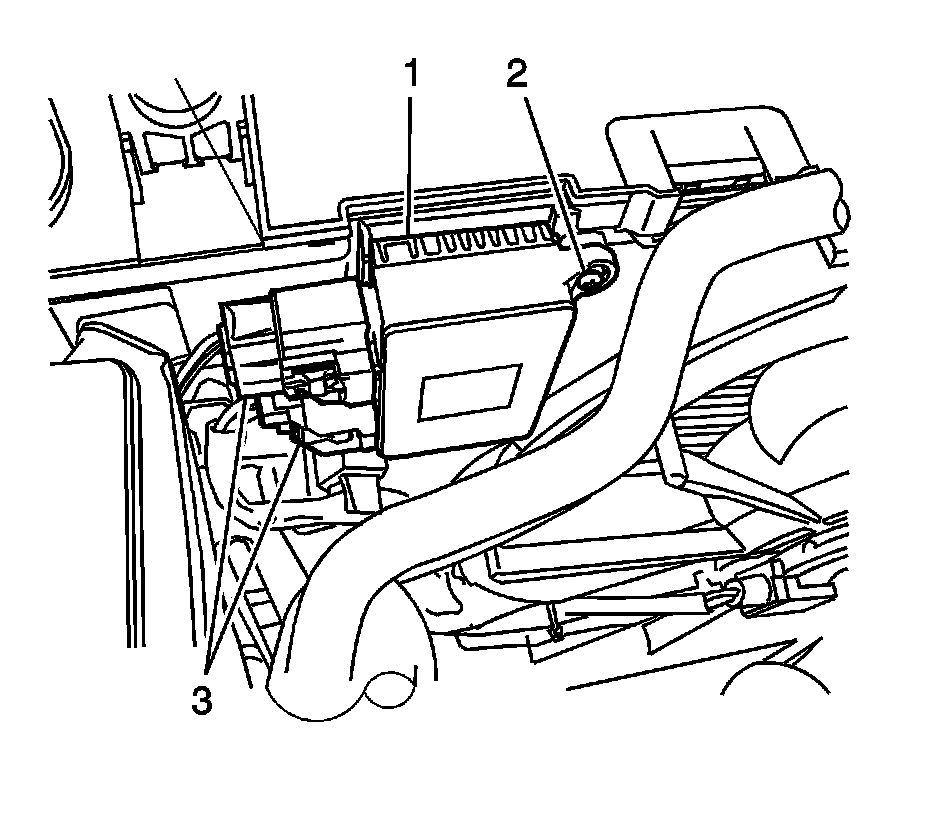

2. Disconnect the cooling fan control module connectors (3).
3. Remove the two screws (2).
4. Remove the cooling fan control module (1).

Installation Procedure




1. Install the cooling fan control module (1) with two screws (2).
2. Connect the cooling fan control module connectors (1).
3. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair).
