Air Bag Control Module: Locations

Passenger Compartment/Roof Component Views

Cellular Communication Components




1 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
2 - Radio
3 - Inside Rearview Mirror (ISRVM)
4 - Cellular and Navigation Antenna
5 - Vehicle Communication Interface Module - Auxiliary
6 - Vehicle Communication Interface Module (VCIM)
7 - Data Link Connector (DLC)

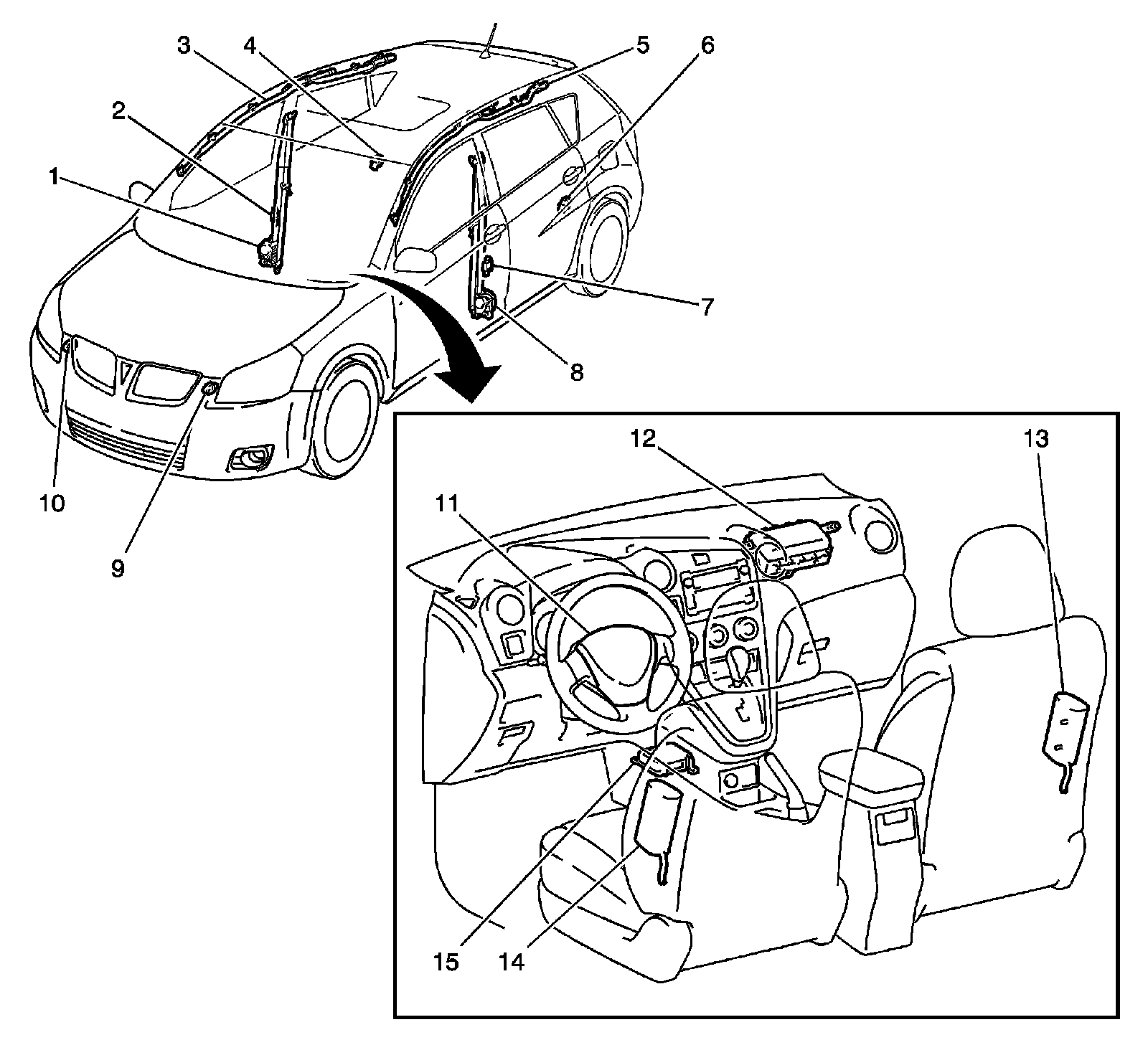

Supplemental Inflatable Restraints Components




1 - Seat Belt Pretensioner - Passenger
2 - Inflatable Restraint Side Impact Sensor (SIS) - Right
3 - Inflatable Restraint Roof Rail Module - Right
4 - Inflatable Restraint Side Impact Sensor (SIS) - Right Rear
5 - Inflatable Restraint Roof Rail Module - Left
6 - Inflatable Restraint Side Impact Sensor (SIS) - Left Rear
7 - Inflatable Restraint Side Impact Sensor (SIS) - Left
8 - Seat Belt Pretensioner - Driver
9 - Inflatable Restraint Front End Sensor - Left
10 - Inflatable Restraint Front End Sensor - Right
11 - Inflatable Restraint Steering Wheel Module
12 - Inflatable Restraint I/P Module
13 - Inflatable Restraint Side Impact Module - Right
14 - Inflatable Restraint Side Impact Module - Left
15 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
