System Specifications

TIMING COVER

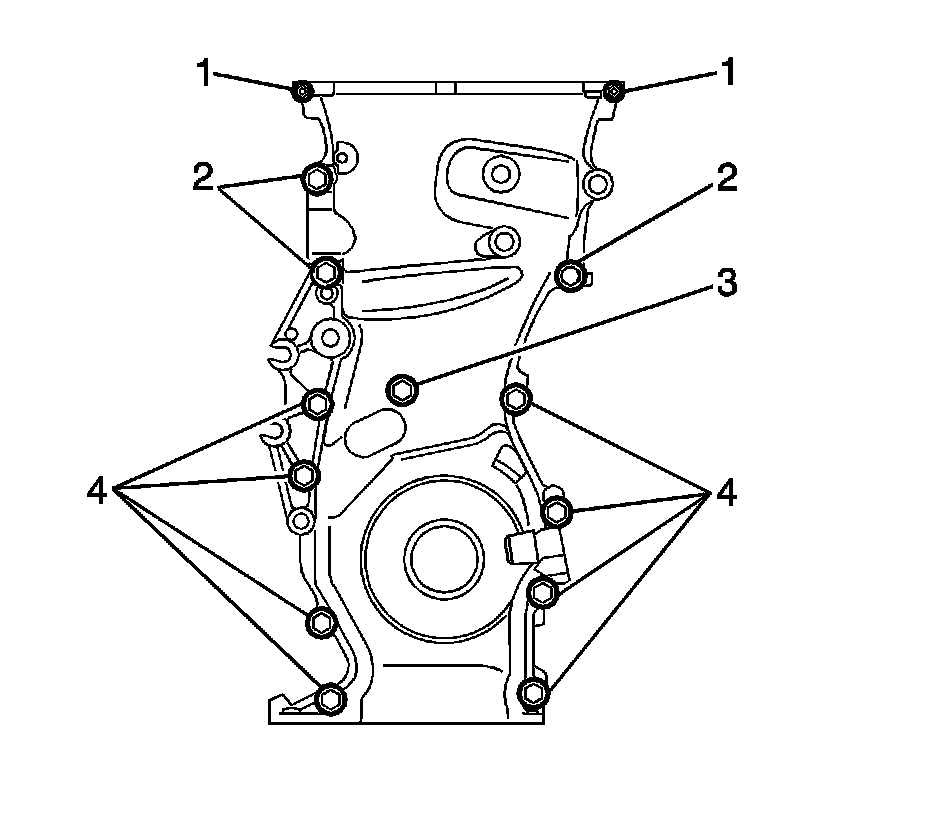

Timing Chain Cover (12 bolts and 2 nuts)
-Bolt 1 to 9.0 Nm (80 lb in).
-Bolt 2 to 25 Nm (18 lb ft).
-Bolt 3 to 55 Nm (41 lb ft).
-Bolt 4 to 11 Nm (8 lb ft).

CRANKSHAFT PULLEY

Crankshaft Pulley Bolt 180 Nm (133 lb ft)

Timing Chain Tensioner 9.0 Nm (80 lb in)
