Removal Procedure

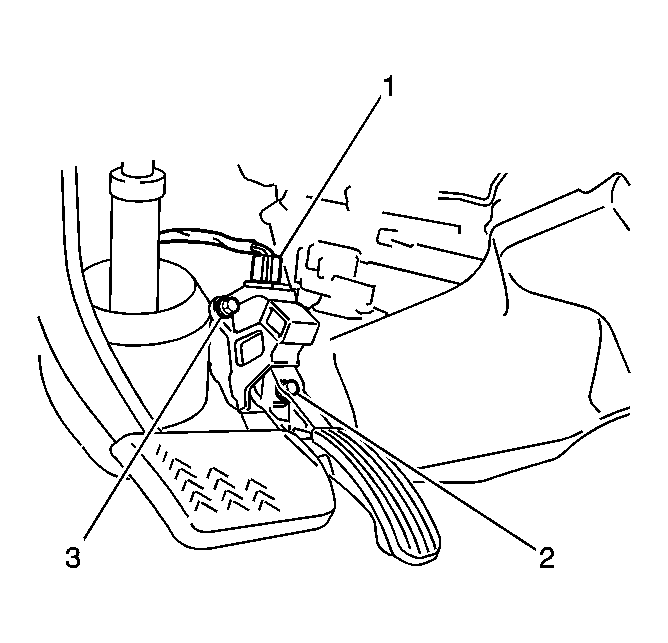

    Fig 1: Locating Accelerator Pedal Position Sensor Components
    GM2016531Courtesy of GENERAL MOTORS CORP.
  1. Remove accelerator pedal assembly.
  2. Disconnect the accelerator pedal position sensor connector.
  3. Remove the 2 bolts and accelerator pedal.
