Installation Procedure

    Fig 1: Applying A Light Coat Of Engine Oil To O-Rings On No. 1 Camshaft Position Sensor
    GM2016633Courtesy of GENERAL MOTORS CORP.
  1. Apply a light coat of engine oil to the O-rings on the No. 1 camshaft position sensors.
    2. Fig 2: View Of No. 1 Camshaft Position Sensor Bolt
    GM2016630Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Caution .
  2. Install the No. 1 camshaft position sensor with the bolt.

    Tighten:  Tighten the bolt to 10N.m (7 lb ft)

    3. Fig 3: Locating No. 1 Camshaft Position Sensor Connector
    GM2016629Courtesy of GENERAL MOTORS CORP.
  3. Connect the No. 1 camshaft position sensor connector.

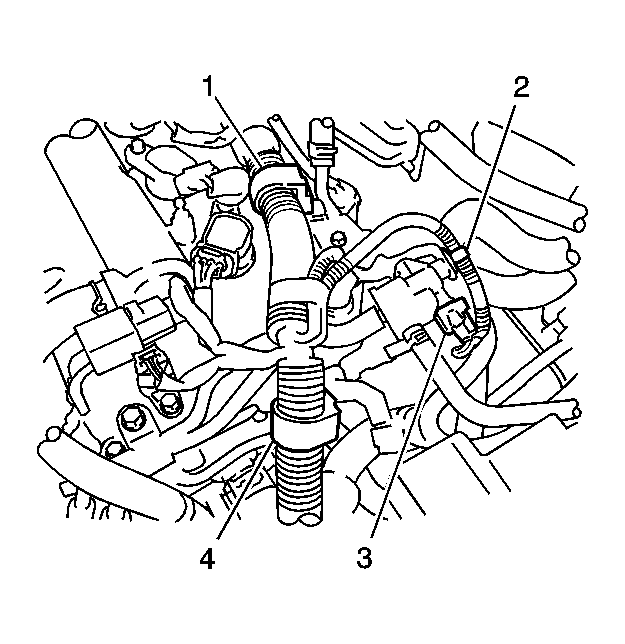

    4. Fig 4: Identifying Duty Vacuum Switching Valve Connector And Engine Wire Harness Clamps
    GM2016625Courtesy of GENERAL MOTORS CORP.
  4. Connect the 3 engine wire harness clamps and duty vacuum switching connector.
  5. Inspect for oil leaks.
  6. Install the engine cover. Refer to Engine Cover Replacement .
