Installation Procedure

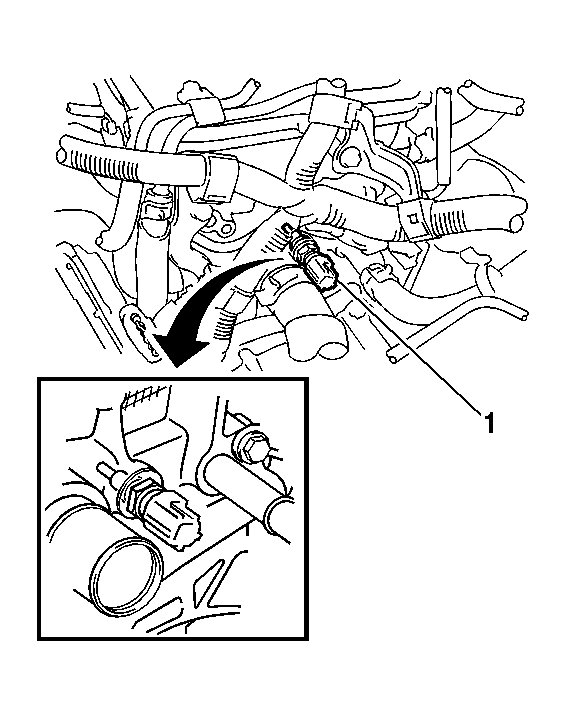

    Fig 1: View Of Engine Coolant Temperature Sensor
    GM2016648Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Caution .
  1. Install the engine coolant temperature sensor through a new gasket.

    Tighten:  Tighten to 20N.m (14 lb ft)

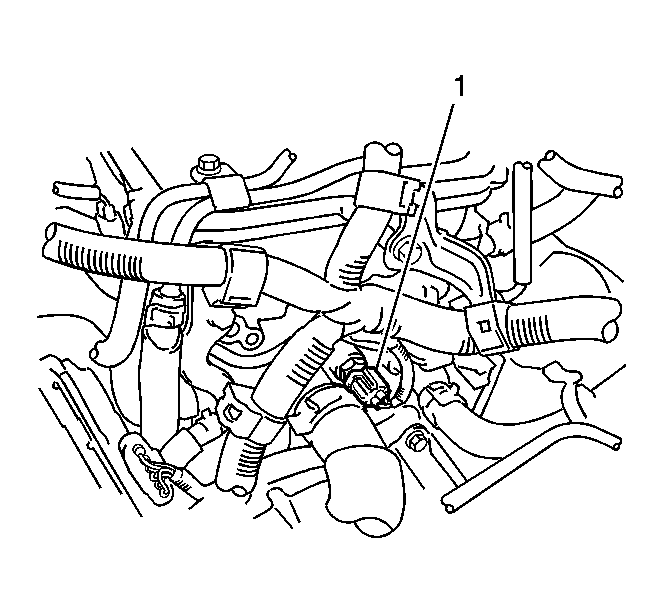

    2. Fig 2: Locating Engine Coolant Temperature Sensor Connector
    GM2016647Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine coolant temperature sensor connector.
  3. Add engine coolant. Refer to Cooling System Draining and Filling .
  4. Inspect for a coolant leak.
  5. Install the air cleaner cap sub-assembly with hose.
  6. Install the engine cover. Refer to Engine Cover Replacement .
