Installation Procedure

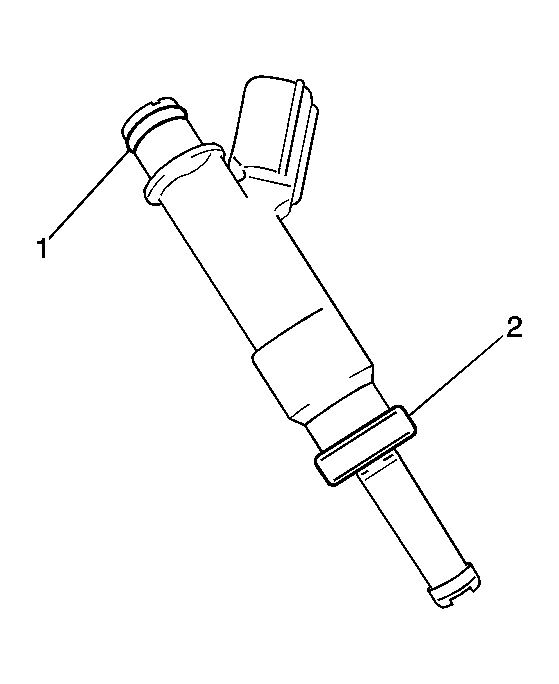

    Fig 1: Identifying Fuel Injector Assembly
    GM2016651Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel injector assembly.
  2. Install a new injector vibration insulator to the fuel injector assembly.
  3. Apply a light coat of oil to the contact surfaces of the O-ring of the fuel injector assembly.

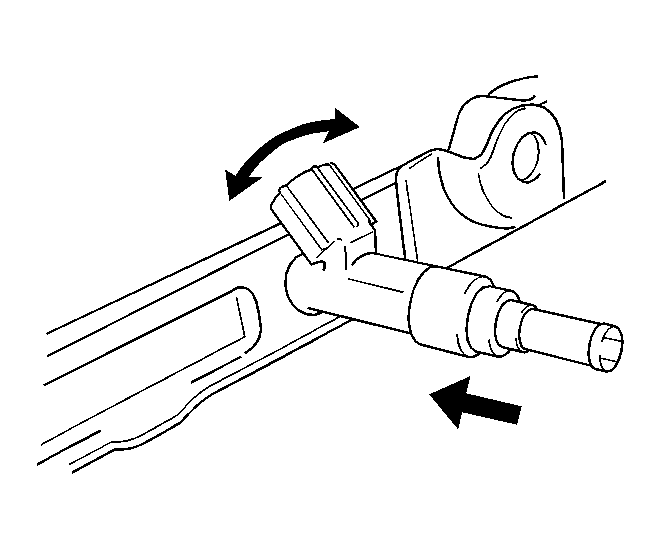

    4. Fig 2: Turning Fuel Injector Assembly Left And Right
    GM2016654Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not twist the O-ring. After installing the fuel injectors, check that they turn smoothly. If not, replace the O-ring with a new one.
  4. While turning the fuel injector assembly left and right, install it onto the fuel delivery pipe sub-assembly.

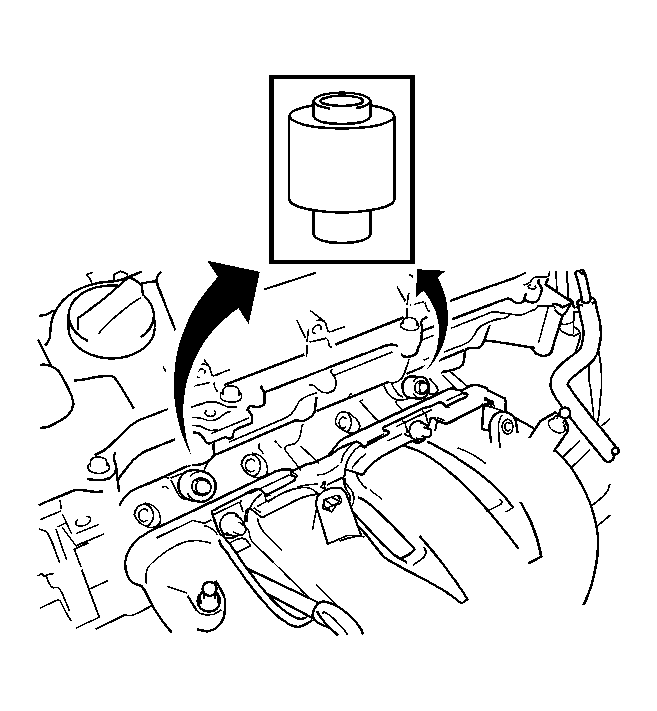

    5. Fig 3: View Of No. 1 Delivery Pipe Spacers
    GM2016623Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Install the No. 1 delivery pipe spacers in the correct direction.
  5. Install the 2 No. 1 delivery pipe spacers onto the cylinder head.

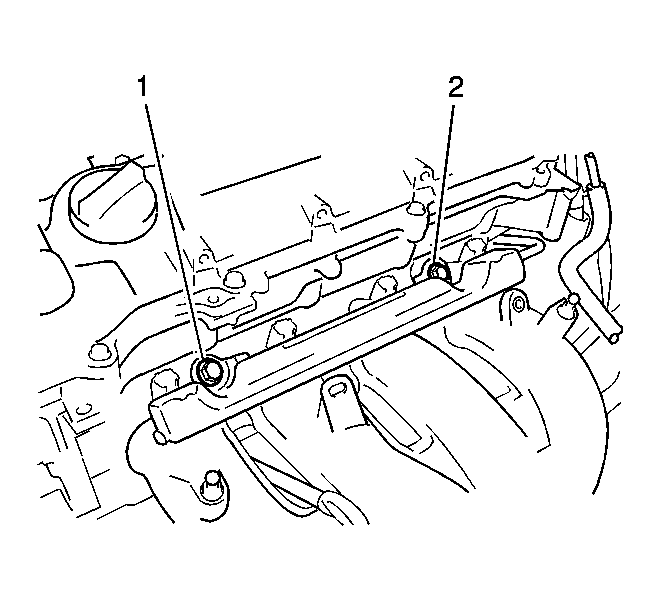

    6. Fig 4: Locating Wire Harness Bolts
    GM2016620Courtesy of GENERAL MOTORS CORP.
  6. Install the fuel delivery pipe sub-assembly with the 4 fuel injector assemblies, then temporarily install the 2 bolts.
    7. NOTE: Refer to Fastener Caution .
  7. Tighten the 2 bolts.

    Tighten:  Tighten the bolts to 21 N.m (15 lb ft).

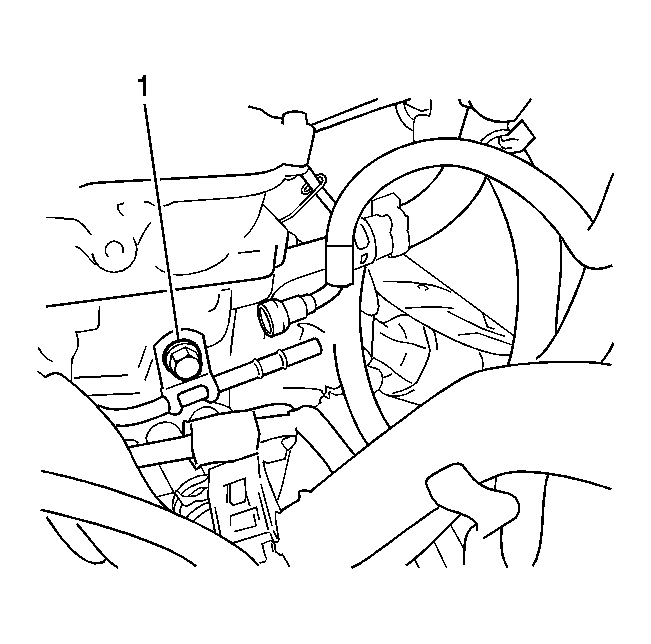

    8. Fig 5: Locating Fuel Delivery Pipe Sub-Assembly Bolt
    GM2016621Courtesy of GENERAL MOTORS CORP.
  8. Install the bolt to secure the fuel delivery pipe sub-assembly.

    Tighten:  Tighten the bolt to 21 N.m (15 lb ft).

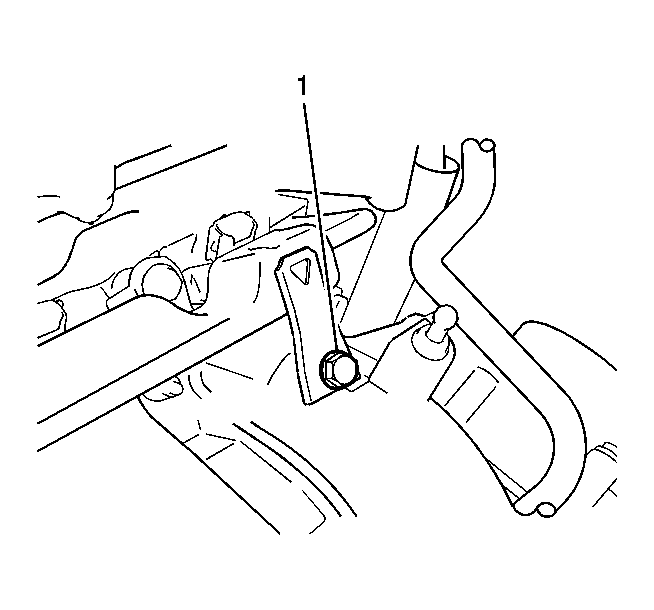

    9. Fig 6: Identifying Wire Harness Bracket Bolt
    GM2016618Courtesy of GENERAL MOTORS CORP.
  9. Install the wire harness bracket with the bolt.

    Tighten:  Tighten the bolt to 5.0 N.m (44 lb in).

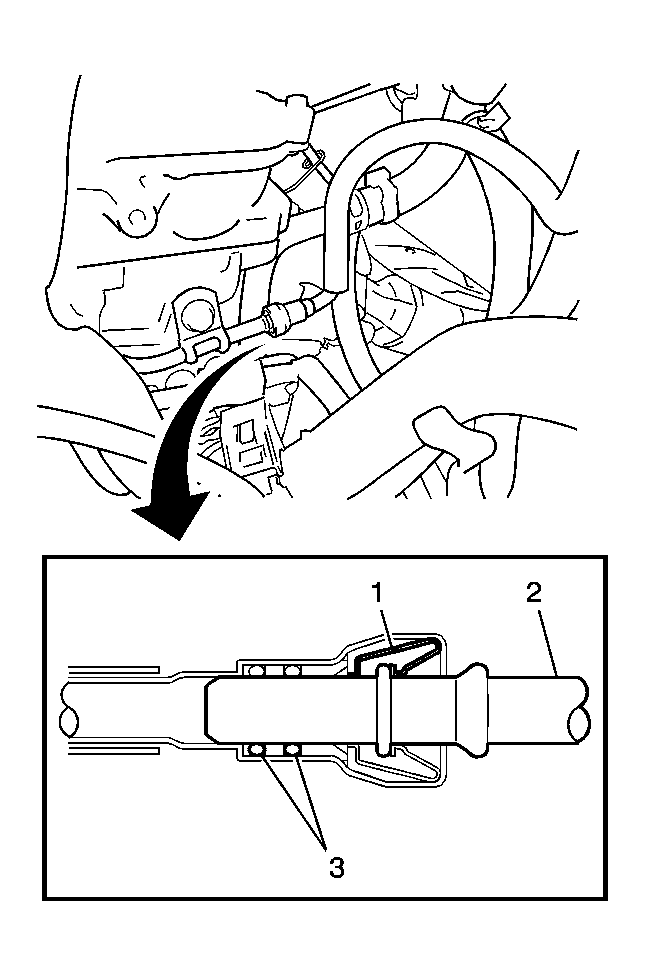

    10. Fig 7: View Of Fuel Tube Sub-Assembly
    GM2016658Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Check that there are no scratches or foreign matter around the contact surfaces of the fuel tube connector and pipe before performing this work. After connecting the fuel tube, check that the fuel tube connector and pipe are securely connected by pulling on them.
  10. Connect the fuel tube sub-assembly.
  11. Insert the fuel tube sub-assembly connector into the fuel delivery pipe until a "click" sound can be heard.

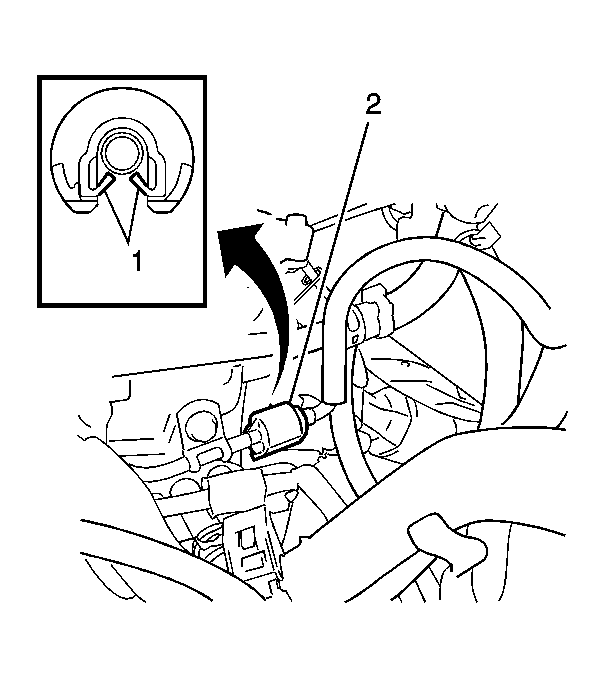

    12. Fig 8: Locating No. 2 Fuel Pipe Clamp (Type B)
    GM2016600Courtesy of GENERAL MOTORS CORP.
  12. Install a new No. 2 fuel pipe clamp (Type B).

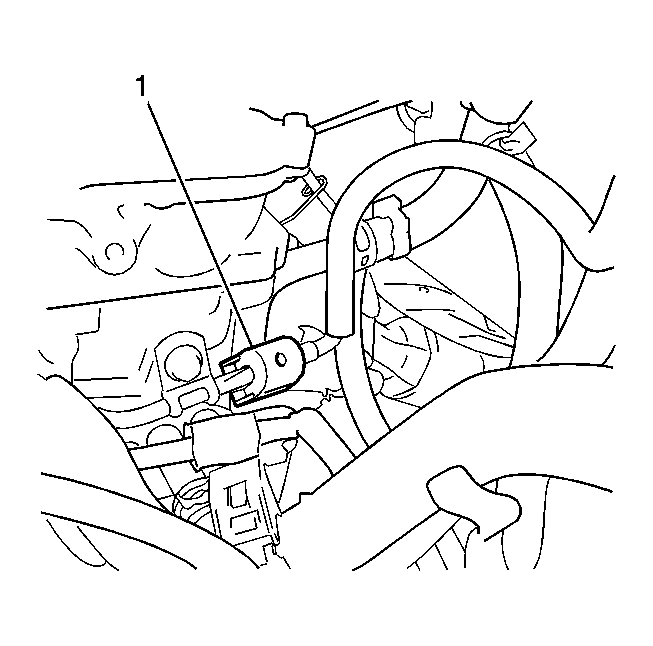

    13. Fig 9: Locating Fuel Tube Sub-Assembly
    GM2016598Courtesy of GENERAL MOTORS CORP.
  13. Install a new No. 2 fuel pump clamp (Type A).

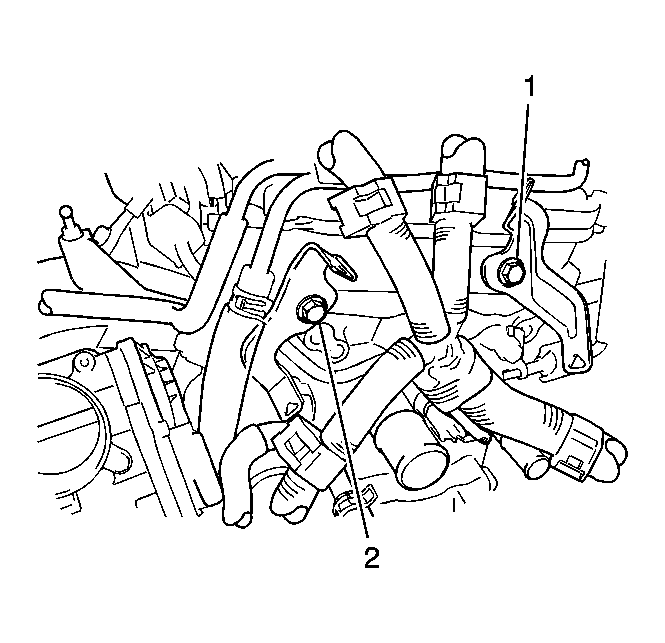

    14. Fig 10: Identifying Wire Harness Brackets & Bolts
    GM2016596Courtesy of GENERAL MOTORS CORP.
  14. Connect the engine wire.
  15. Install the 2 wire harness brackets with the 2 bolts.

    Tighten:  Tighten the bolts to 13 N.m (10 lb ft).

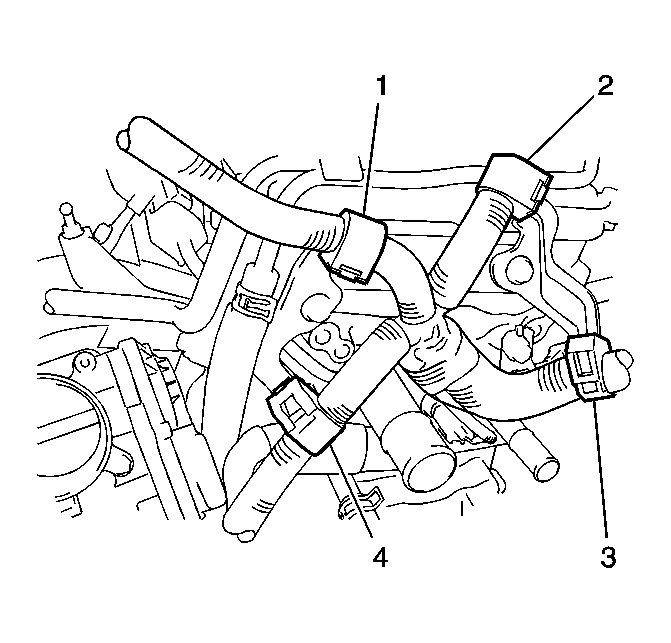

    16. Fig 11: Identifying Wire Harness Clamps
    GM2016595Courtesy of GENERAL MOTORS CORP.
  16. Connect the 4 wire harness clamps.

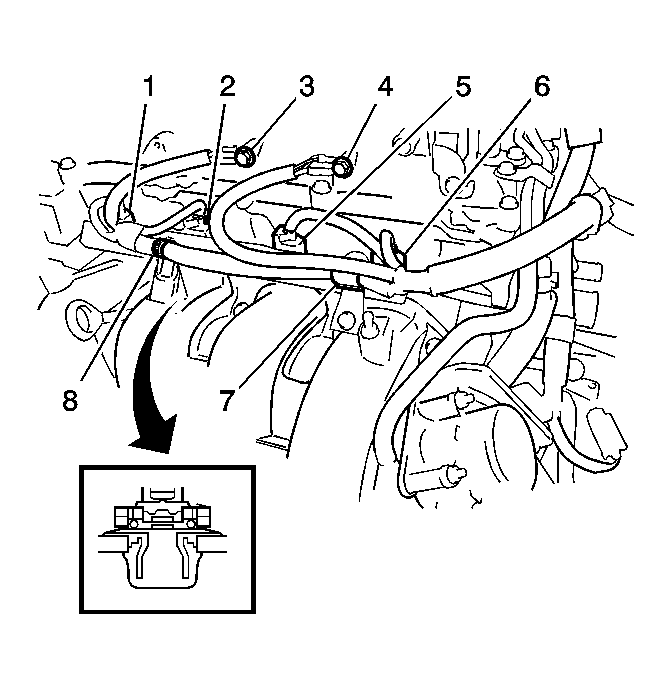

    17. Fig 12: Identifying Ground Wire, Fuel Injector Assembly Connectors, Wire Harness Clamps & bolts
    GM2016594Courtesy of GENERAL MOTORS CORP.
  17. Connect the 4 fuel injector assembly connectors.
  18. Connect the 2 wire harness clamps.
  19. Connect the ground wires with the 2 bolts.
  20. Install the air cleaner assembly with hose.

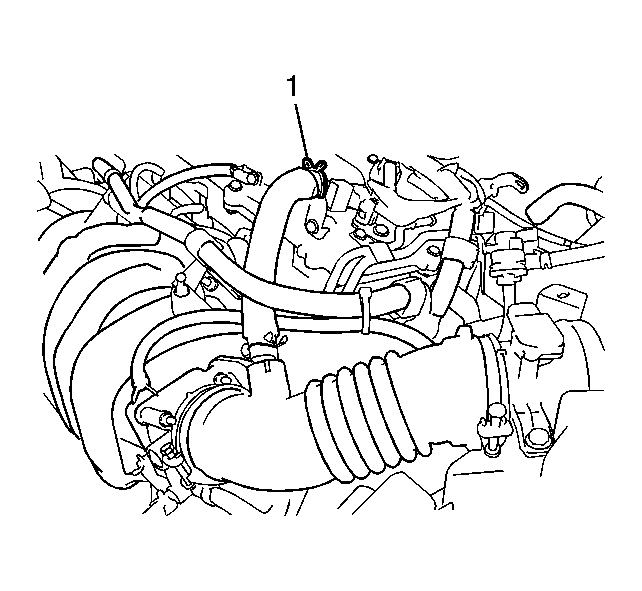

    21. Fig 13: Identifying No. 2 Ventilation Hose
    GM2016591Courtesy of GENERAL MOTORS CORP.
  21. Connect the No. 2 ventilation hose.
    22. CAUTION: Refer to Battery Disconnect Warning .
  22. Connect the cable to the negative battery terminal.
  23. Inspect for a fuel leak.
  24. Install the engine cover. Refer to Engine Cover Replacement .
