Removal Procedure

  1. Discharge the fuel system pressure. Refer to Fuel Pressure Relief .
    2. CAUTION: Refer to Battery Disconnect Warning .
  2. Disconnect the cable from the negative battery terminal.
  3. Remove the engine cover. Refer to Engine Cover Replacement .
    4. Fig 1: Identifying No. 2 Ventilation Hose
    GM2016591Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the No. 2 ventilation hose.
  5. Remove the air cleaner assembly with hose.
    6. Fig 2: Identifying Ground Wire, Fuel Injector Assembly Connectors, Wire Harness Clamps & bolts
    GM2016594Courtesy of GENERAL MOTORS CORP.
  6. Remove the engine wire.
  7. Remove the 2 bolts and disconnect the ground wire.
  8. Disconnect the 4 fuel injector assembly connectors.
  9. Disconnect the 2 wire harness clamps.
    10. Fig 3: Identifying Wire Harness Clamps
    GM2016595Courtesy of GENERAL MOTORS CORP.
  10. Disconnect the 4 wire harness clamps.
    11. Fig 4: Identifying Wire Harness Brackets & Bolts
    GM2016596Courtesy of GENERAL MOTORS CORP.
  11. Remove the 2 bolts and 2 wire harness brackets.
    12. Fig 5: Locating Fuel Tube Sub-Assembly
    GM2016598Courtesy of GENERAL MOTORS CORP.
  12. Disconnect the fuel tube sub-assembly.
  13. Remove the No. 2 fuel pipe clamp (Type A).
    14. Fig 6: Locating No. 2 Fuel Pipe Clamp (Type B)
    GM2016600Courtesy of GENERAL MOTORS CORP.
  14. Remove the No. 2 fuel pipe clamp (Type B).

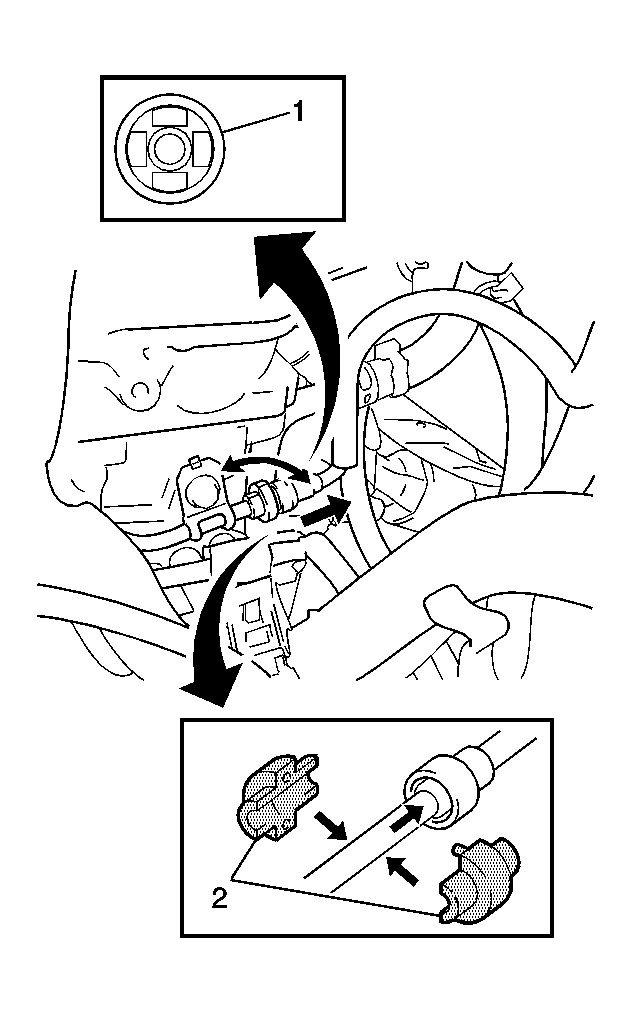

    15. Fig 7: Identifying Fuel Tube Sub-Assembly
    GM2016603Courtesy of GENERAL MOTORS CORP.
  15. Using SST, disconnect the fuel tube sub-assembly.

    SST 09268-21010

    16. Fig 8: Identifying Wire Harness Bracket Bolt
    GM2016618Courtesy of GENERAL MOTORS CORP.
  16. Remove the fuel delivery pipe sub-assembly.
  17. Remove the bolt and remove the wire harness bracket.
    18. Fig 9: Locating Wire Harness Bolts
    GM2016620Courtesy of GENERAL MOTORS CORP.
  18. Remove the 2 bolts.
    19. Fig 10: Locating Fuel Delivery Pipe Sub-Assembly Bolt
    GM2016621Courtesy of GENERAL MOTORS CORP.
  19. Remove the bolt and the fuel delivery pipe sub-assembly.
    20. Fig 11: View Of No. 1 Delivery Pipe Spacers
    GM2016623Courtesy of GENERAL MOTORS CORP.
  20. Remove the 2 No. 1 delivery pipe spacers.

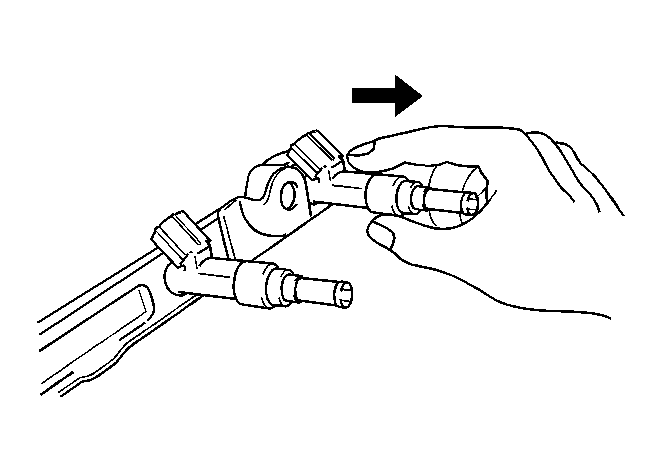

    21. Fig 12: View Of Fuel Injector Assembly
    GM2016624Courtesy of GENERAL MOTORS CORP.
  21. Remove the fuel injector assembly.
  22. Pull the 4 fuel injector assemblies out of the fuel delivery pipe sub-assembly.

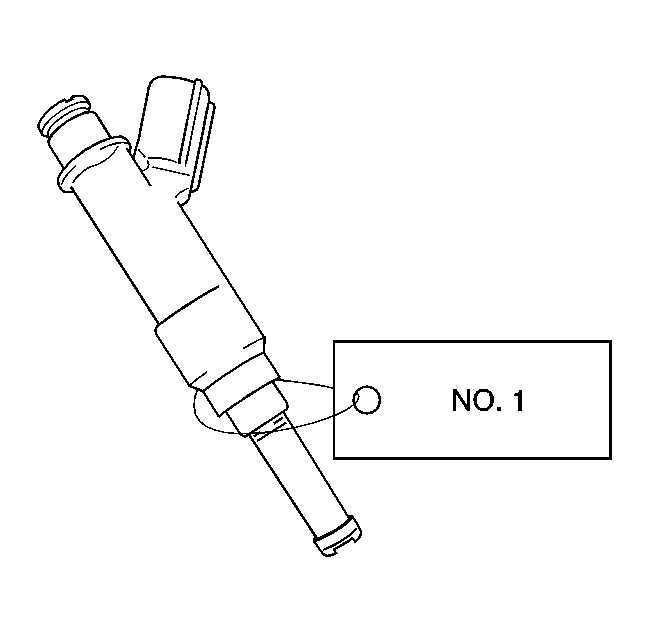

    23. Fig 13: Attaching A Tag Or Label To Injector Shaft
    GM2016627Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Prevent entry of foreign objects by covering the fuel injector with a plastic bag.
  23. For reinstallation, attach a tag or label to the injector shaft.

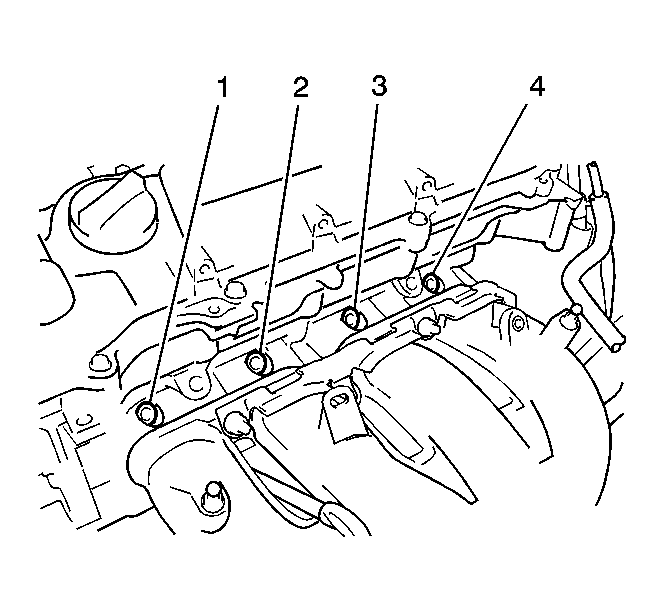

    24. Fig 14: Identifying Injector Vibration Insulators
    GM2016631Courtesy of GENERAL MOTORS CORP.
  24. Remove the 4 injector vibration insulators.
