Removal Procedure

  1. Remove the rear seat cushion assembly. Refer to Rear Seat Cushion Replacement .
  2. Remove the rear floor service hole cover.
  3. Discharge the fuel system pressure. Refer to Fuel Pressure Relief .
    4. CAUTION: Refer to Battery Disconnect Warning .
  4. Disconnect the cable from the negative battery terminal.
  5. Remove the fuel tank main tube sub-assembly.
  6. Disconnect the fuel tank vent hose.
  7. Remove the fuel pump gage retainer.
  8. Remove the fuel suction tube assembly.
  9. Remove the fuel sender gage assembly.

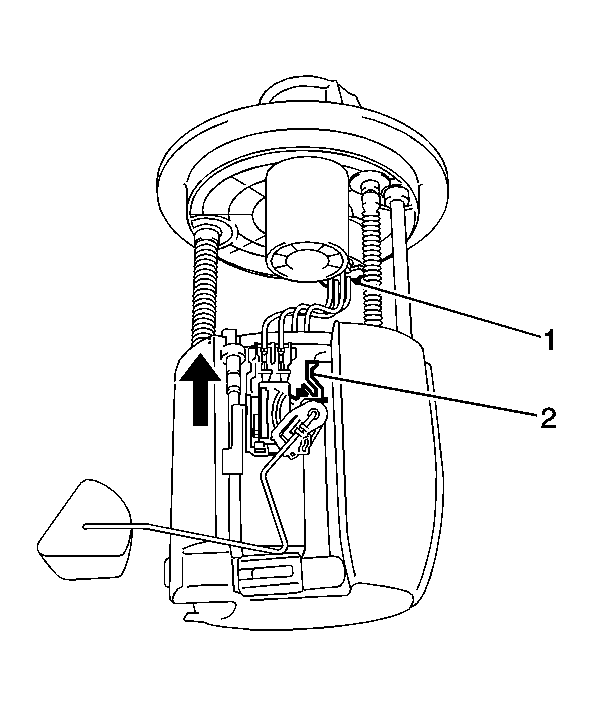

    10. Fig 1: Identifying Fuel Sender Gauge Connector & Fuel Sender Gauge Arm
    GM2016807Courtesy of GENERAL MOTORS CORP.
  10. Disconnect the fuel sender gauge connector.
    11. IMPORTANT: Make sure that the fuel sender gauge arm does not bend.
  11. Release the lock and slide the fuel sender gage assembly to remove it.
