Installation Procedure

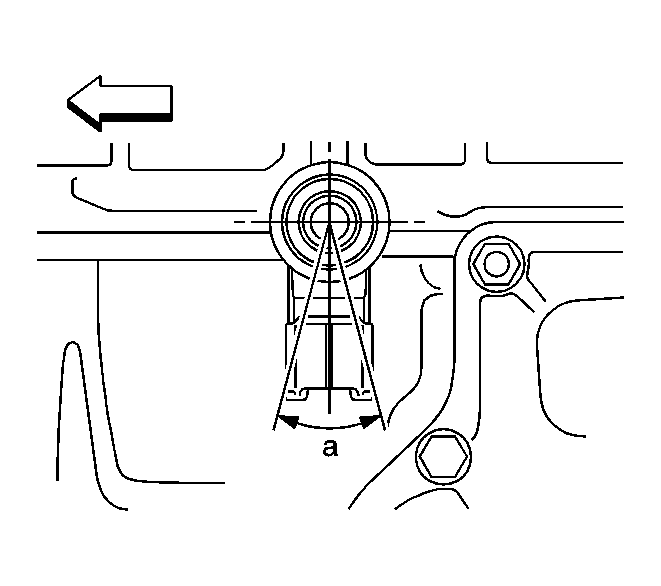

Fig 1: Installing Knock Sensor

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Caution .

Install the knock sensor with the bolt.
Tighten: Tighten the bolt to 20N.m (15 lb ft)

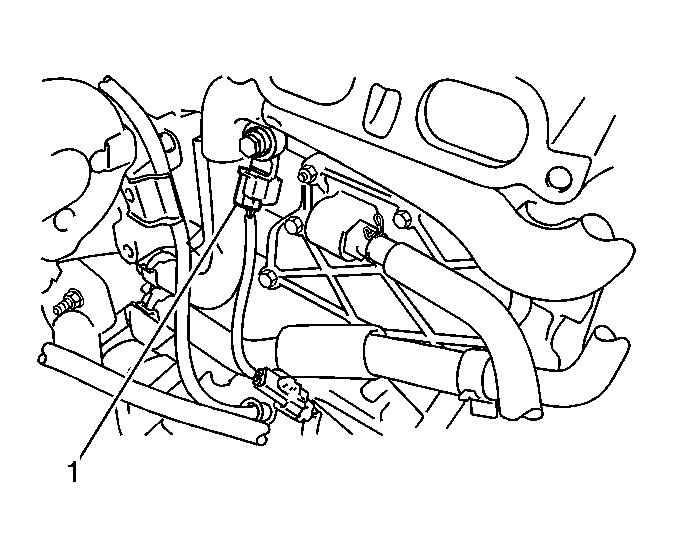

Fig 2: Locating Knock Sensor Connector

Courtesy of GENERAL MOTORS CORP.

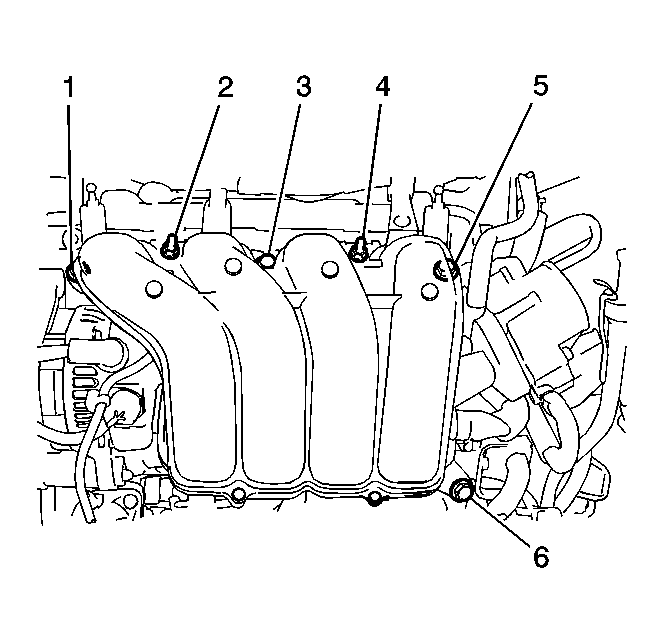

Fig 3: View Of New Gasket, Intake Manifold And Intake Manifold Stay Bolts And Nuts

Courtesy of GENERAL MOTORS CORP.

Install a new gasket, then install the intake manifold and intake manifold stay with the 4 bolts and 2 nuts.
Tighten: Tighten the bolts to 28N.m (21 lb ft)

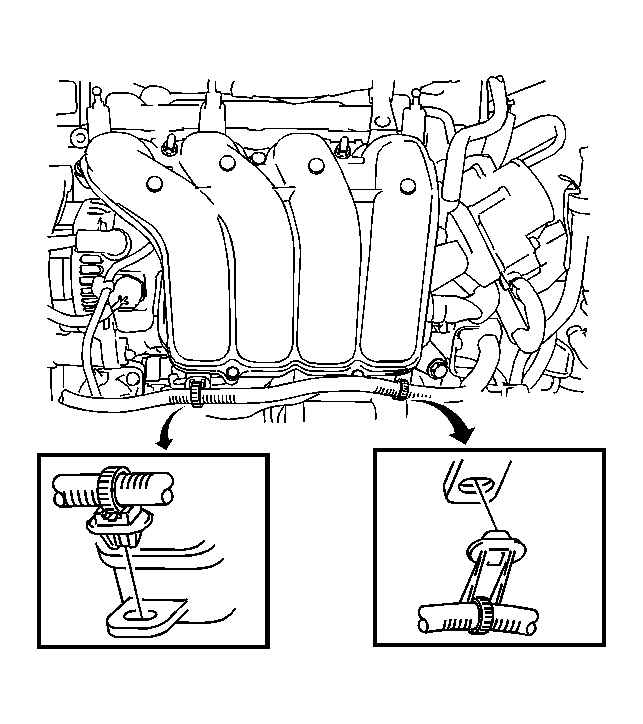

Fig 4: View Of Wire Harness Push Pins

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Throttle Body Wire Harness Clamps

Courtesy of GENERAL MOTORS CORP.

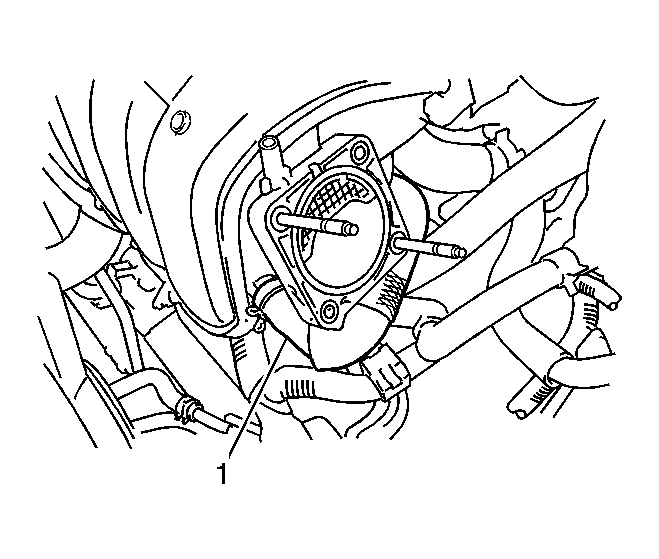

Fig 6: View Of Throttle Body Ventilation Hose

Courtesy of GENERAL MOTORS CORP.

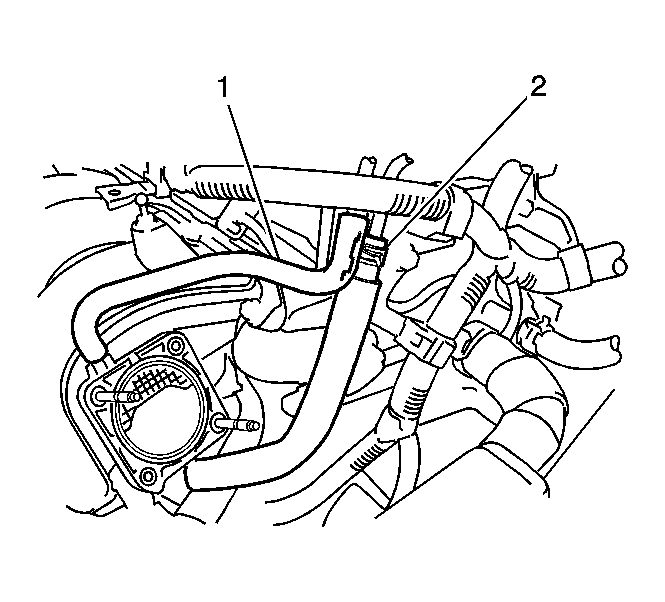

Fig 7: Identifying Throttle Body Hoses

Courtesy of GENERAL MOTORS CORP.

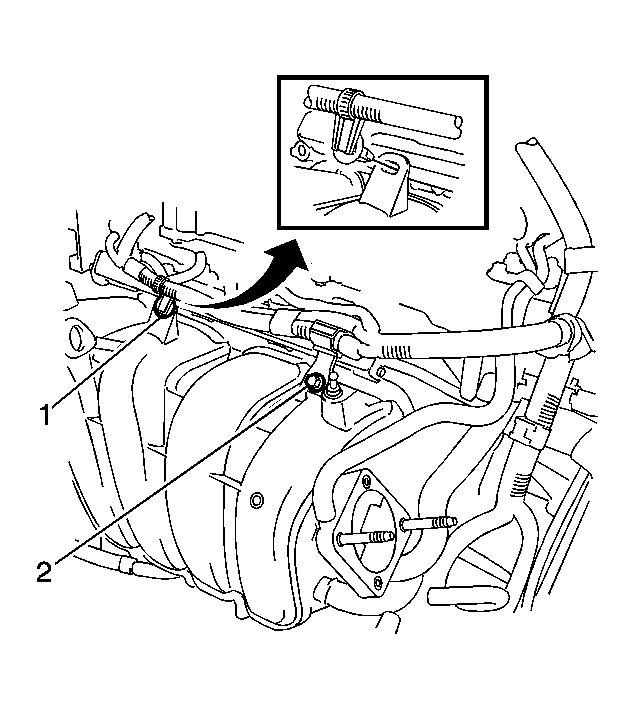

Fig 8: View Of Wire Harness Clamp

Courtesy of GENERAL MOTORS CORP.

Connect the wire harness clamp and install the wire harness bracket with the bolt.
Tighten: Tighten the bolt to 10N.m (8 lb in)

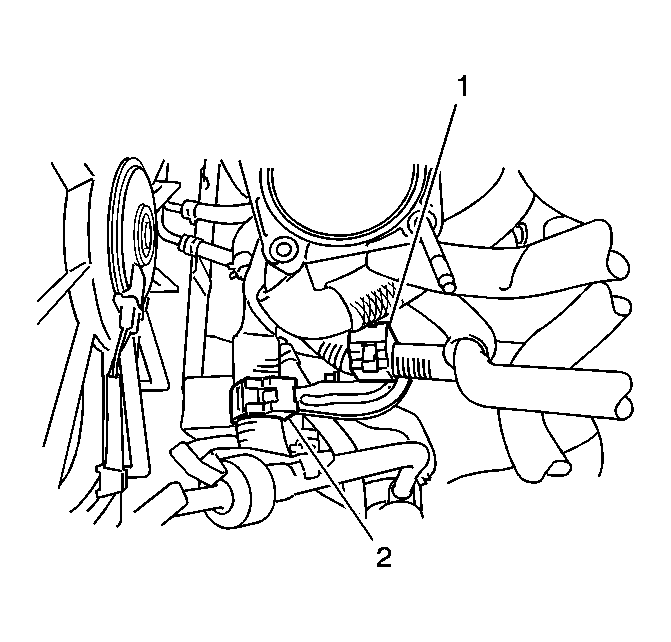

Fig 9: Identifying Throttle Body Connector And Water By-Pass Hoses

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Battery Disconnect Warning .
