Installation Procedure

    Fig 1: Identifying ECM Brackets Screws
    GM2016617Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Caution .
  1. Install the 2 ECM brackets onto the ECM with the 4 screws.

    Tighten:  Tighten bolts to 3.2N.m (28 lb in)

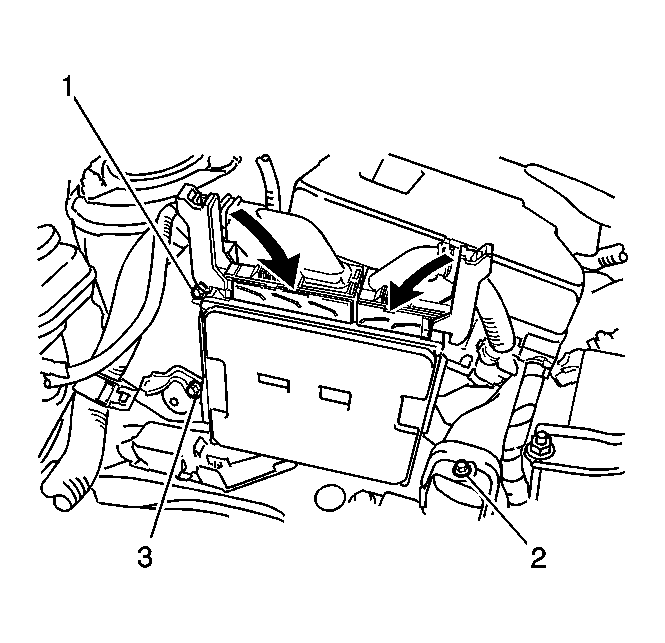

    2. Fig 2: Identifying ECM Retaining Bolts And Levers
    GM2016619Courtesy of GENERAL MOTORS CORP.
  2. Install the ECM with the 3 bolts.

    Tighten:  Tighten bolts to 8.0N.m (71 lb in)

  3. Connect the 2 ECM connectors and lower the 2 levers.
    4. Fig 3: Identifying Wire Harness Clamp
    GM2016615Courtesy of GENERAL MOTORS CORP.
  4. Install the wire harness clamp.
  5. Install air cleaner assembly with hose. Refer to Air Cleaner Element Replacement
  6. Connect cable to negative battery terminal.
    7. IMPORTANT: Initialization cannot be completed by only removing the battery.
    Perform the RESET MEMORY (AT initialization) when replacing the ECM (SeeControl Module References ).
    Perform the REGISTRATION (VIN registration) when replacing the ECM (SeeControl Module References ).
  7. Perform initialization.
