Installation Procedure

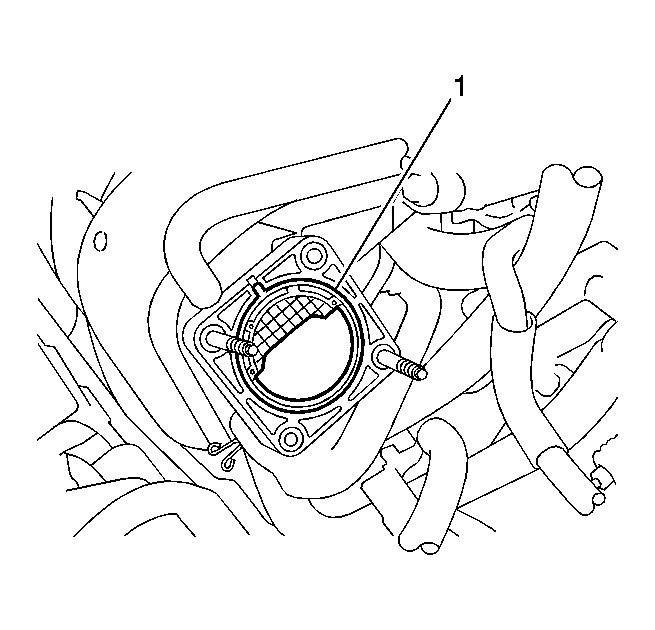

    Fig 1: Identifying Gasket & Intake Manifold
    GM2016612Courtesy of GENERAL MOTORS CORP.
  1. Install a new gasket onto the intake manifold.
    2. NOTE: Refer to Fastener Caution .
  2. Install the throttle body assembly with the 2 bolts and 2 nuts.

    Tighten:  Tighten the bolts to 10N.m (7 lb ft)

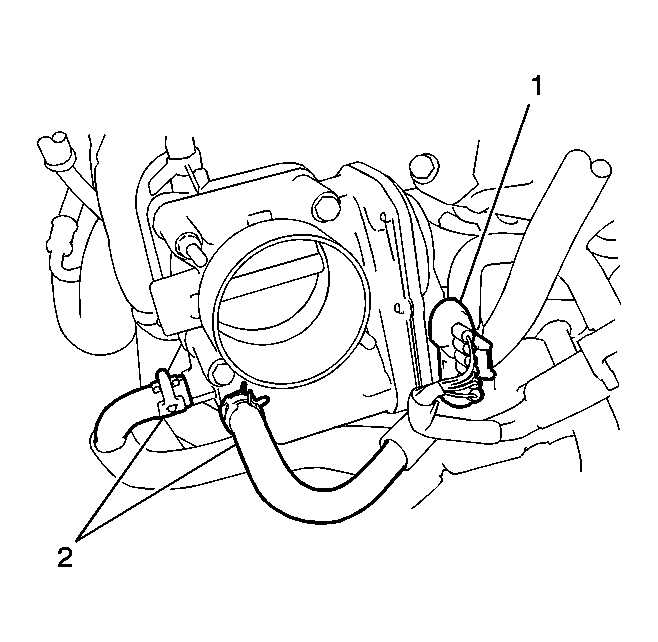

    3. Fig 2: Identifying Throttle Body Connector And Water By-Pass Hoses
    GM2016610Courtesy of GENERAL MOTORS CORP.
  3. Connect the 2 water by-pass hoses and the throttle body connector.
  4. Install the air cleaner cap sub-assembly with hose and lock the 2 clamps.

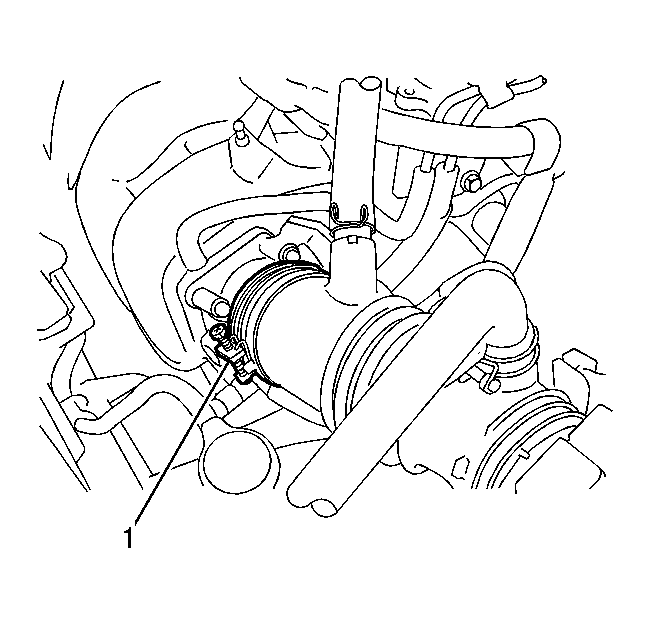

    5. Fig 3: Hose Clamp
    GM2016613Courtesy of GENERAL MOTORS CORP.
  5. Tighten the hose clamp.

    Tighten:  Tighten the clamp to 2.0N.m (18 lb in)

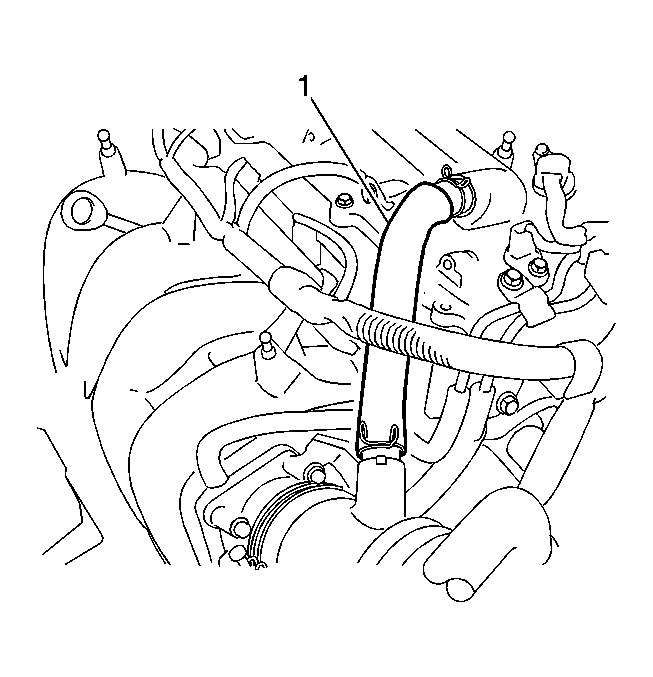

    6. Fig 4: Identifying Ventilation Hose
    GM2016614Courtesy of GENERAL MOTORS CORP.
  6. Connect the ventilation hose.

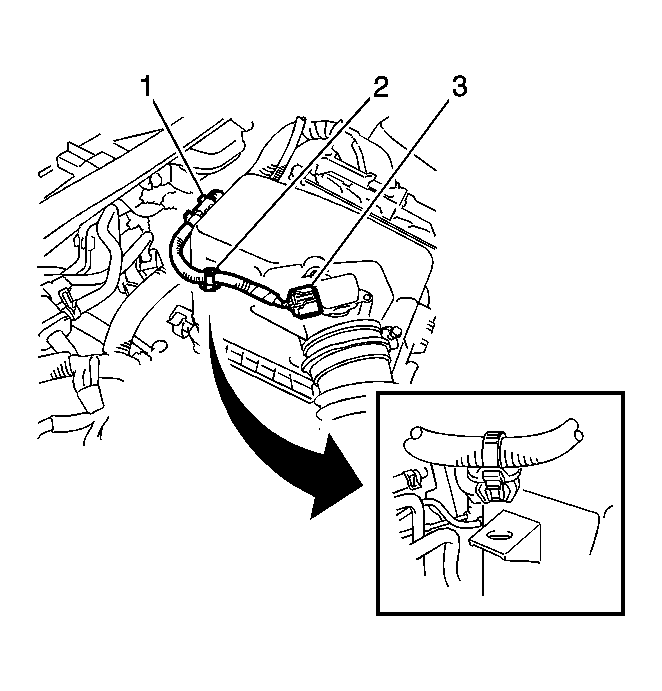

    7. Fig 5: View Of Air Cleaner Cap Sub-Assembly & Hose
    GM2016606Courtesy of GENERAL MOTORS CORP.
  7. Connect the wire harness clamp and mass air flow meter connector.
  8. Add engine coolant. Refer to Cooling System Draining and Filling .
  9. Inspect for a coolant leak.
  10. Install the engine cover. Refer to Engine Cover Replacement .
  11. Perform initialization.
