Removal Procedure

Drain the engine coolant. Refer to Cooling System Draining and Filling .
Remove the engine cover. Refer to Engine Cover Replacement .

Fig 1: View Of Air Cleaner Cap Sub-Assembly & Hose

GM2016606

Courtesy of GENERAL MOTORS CORP.

Remove the air cleaner cap sub-assembly with hose.
Disconnect the mass air flow meter connector and the 2 wire harness clamps.

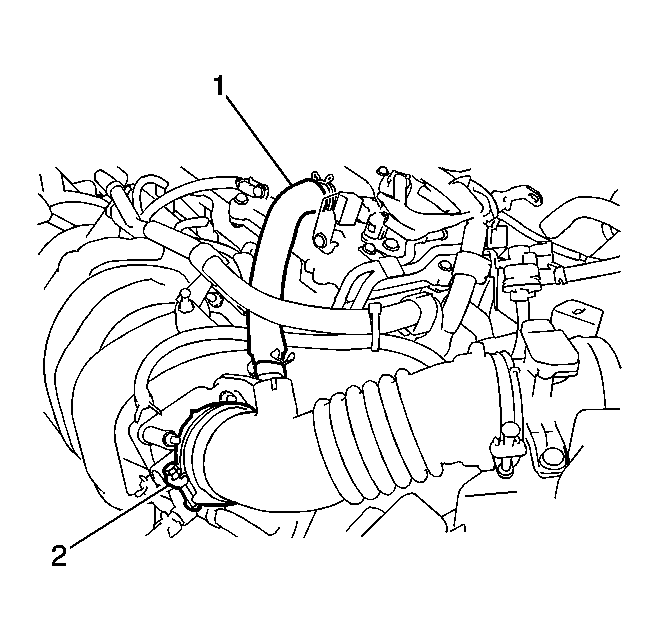

Fig 2: Identifying Ventilation Hose And Hose Clamp

GM2016608

Courtesy of GENERAL MOTORS CORP.

Disconnect the ventilation hose and loosen the hose clamp.

Fig 3: Locating Air Cleaner Cap Sub-Assembly Clamps

GM2016609

Courtesy of GENERAL MOTORS CORP.

Unlock the 2 clamps and remove the air cleaner cap sub-assembly with hose.

Fig 4: Identifying Throttle Body Connector And Water By-Pass Hoses

GM2016610

Courtesy of GENERAL MOTORS CORP.

Disconnect the throttle body connector and the 2 water by-pass hoses.

Fig 5: Locating Throttle Body Assembly Bolts & Nuts

GM2016611

Courtesy of GENERAL MOTORS CORP.

Remove the 2 bolts and 2 nuts, and remove the throttle body assembly.

Fig 6: Identifying Gasket & Intake Manifold

GM2016612

Courtesy of GENERAL MOTORS CORP.

Remove the gasket from the intake manifold.
