Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

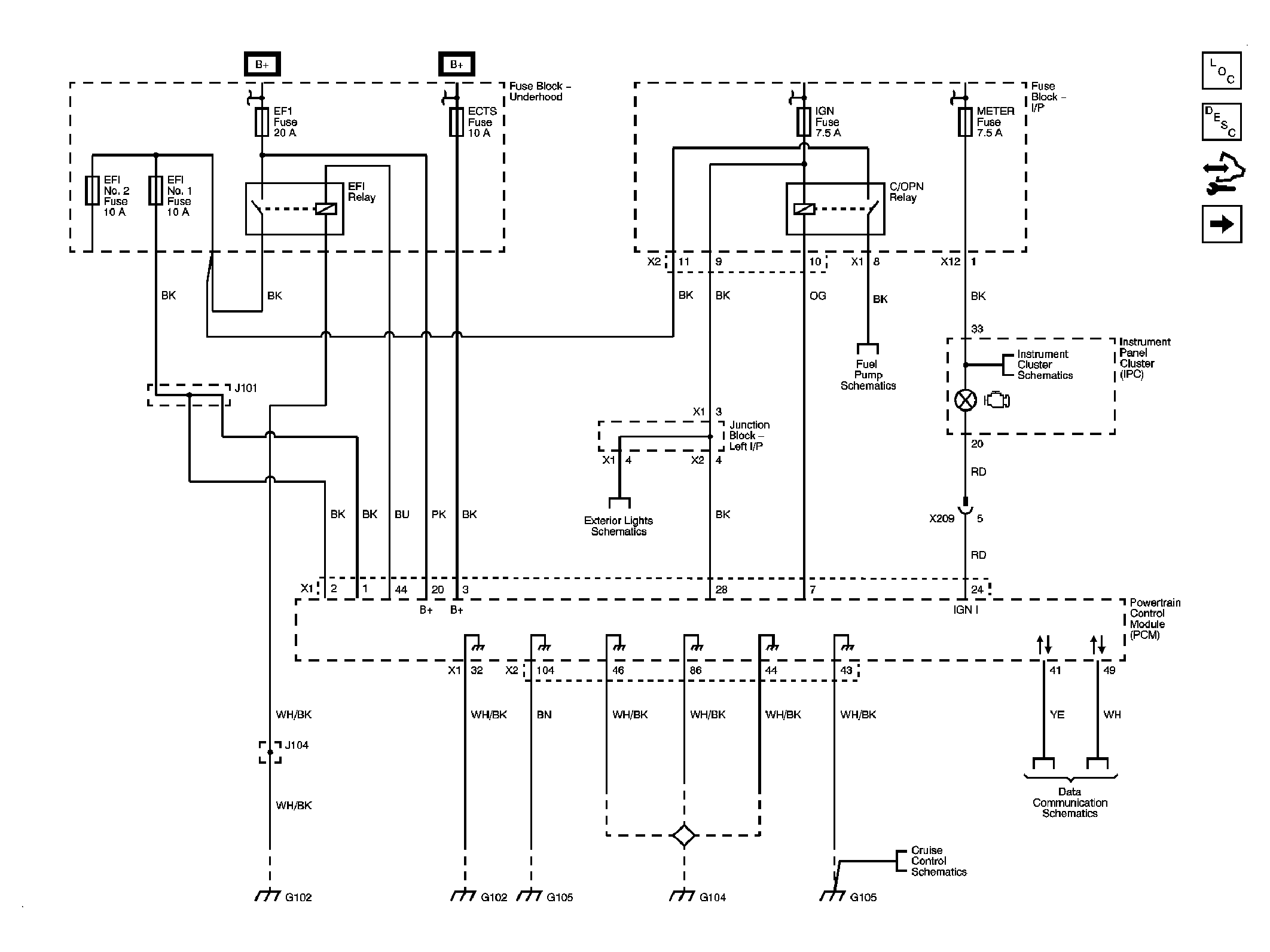

Fig 1: Power, Ground, Serial Data and MIL

Courtesy of GENERAL MOTORS CORP.

Fig 2: Engine Data Sensors - MAF and ECT

Courtesy of GENERAL MOTORS CORP.

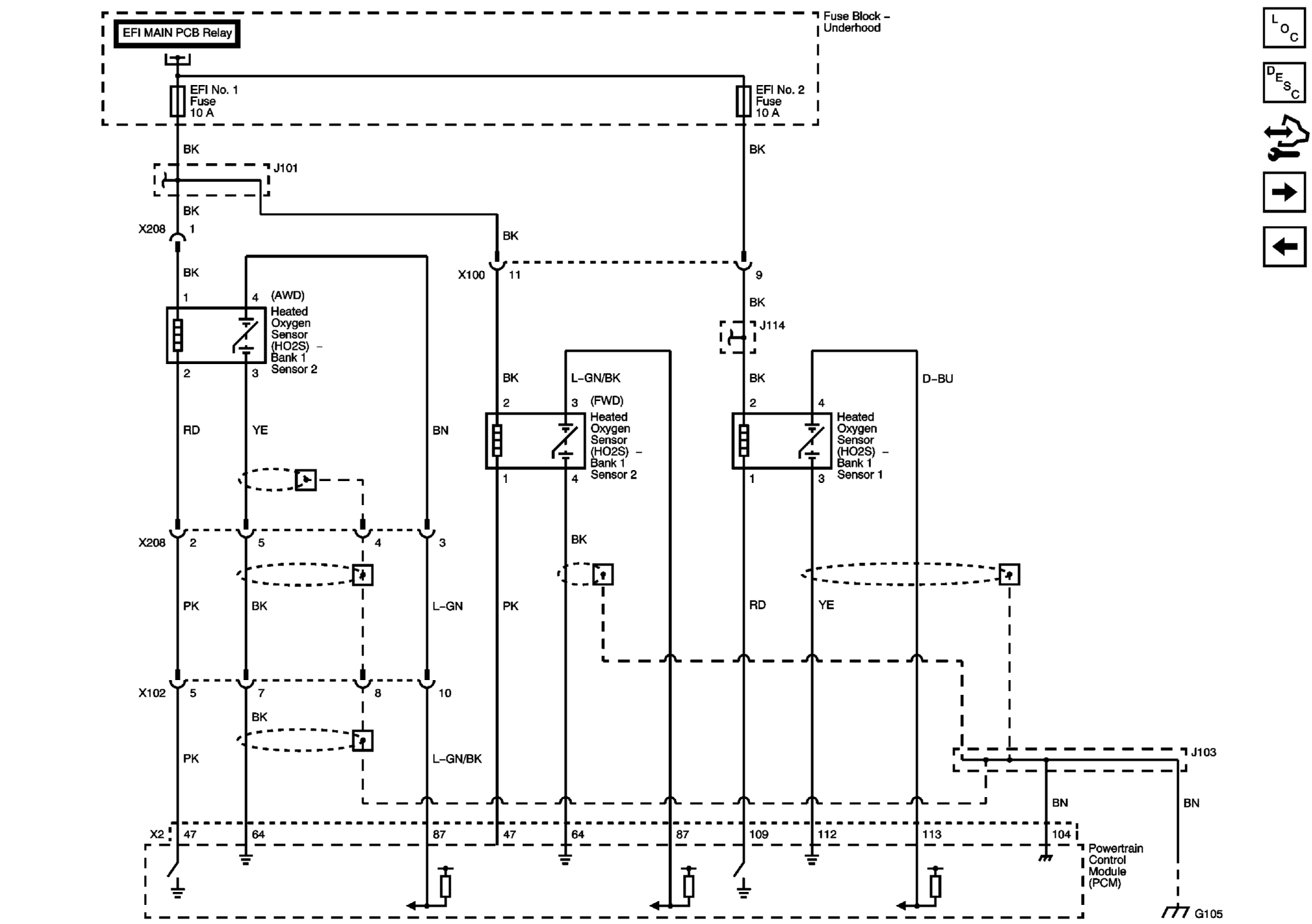

Fig 3: Engine Data Sensors - Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 4: Electronic Throttle Controls

Courtesy of GENERAL MOTORS CORP.

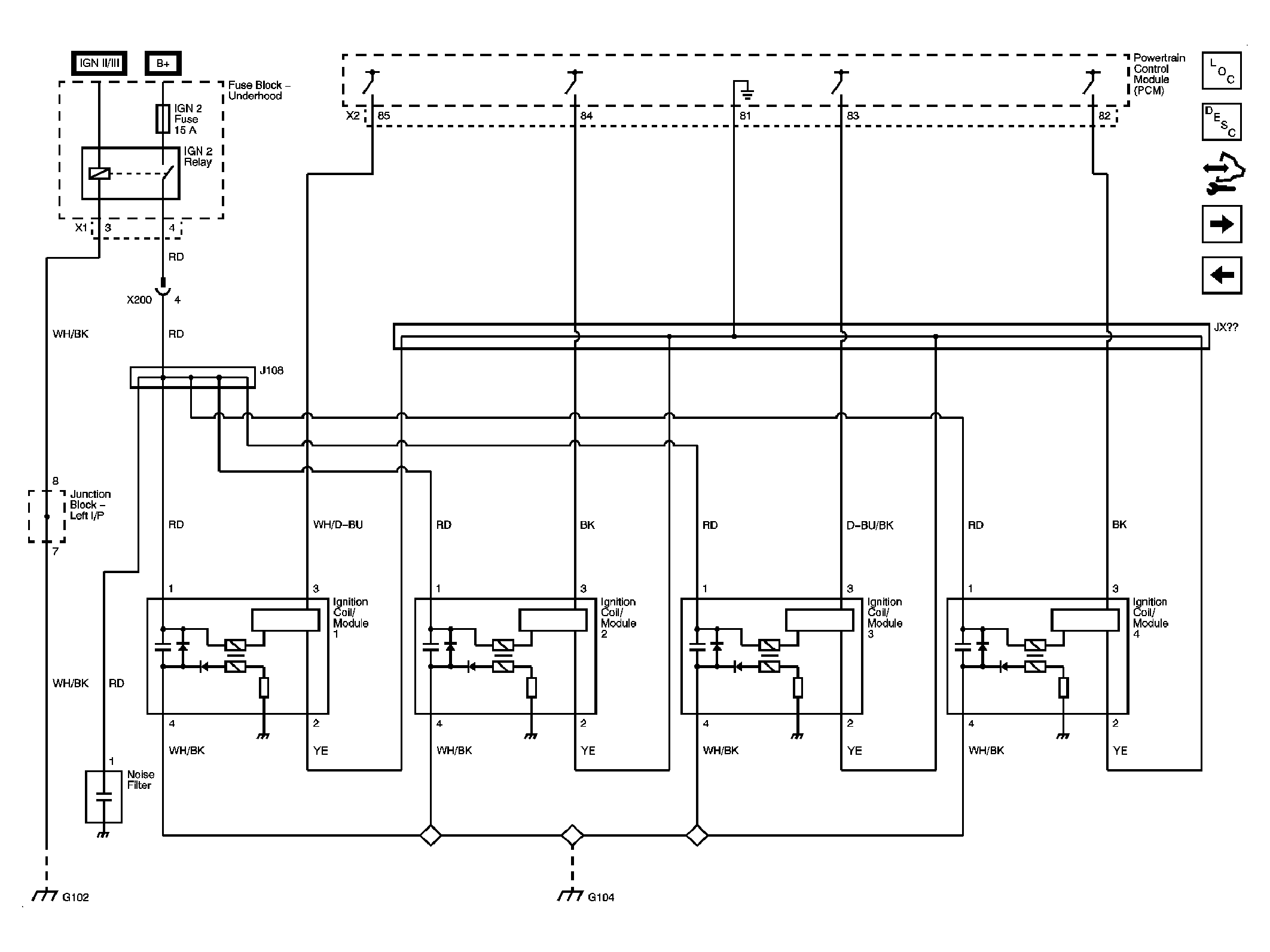

Fig 5: Ignition System

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

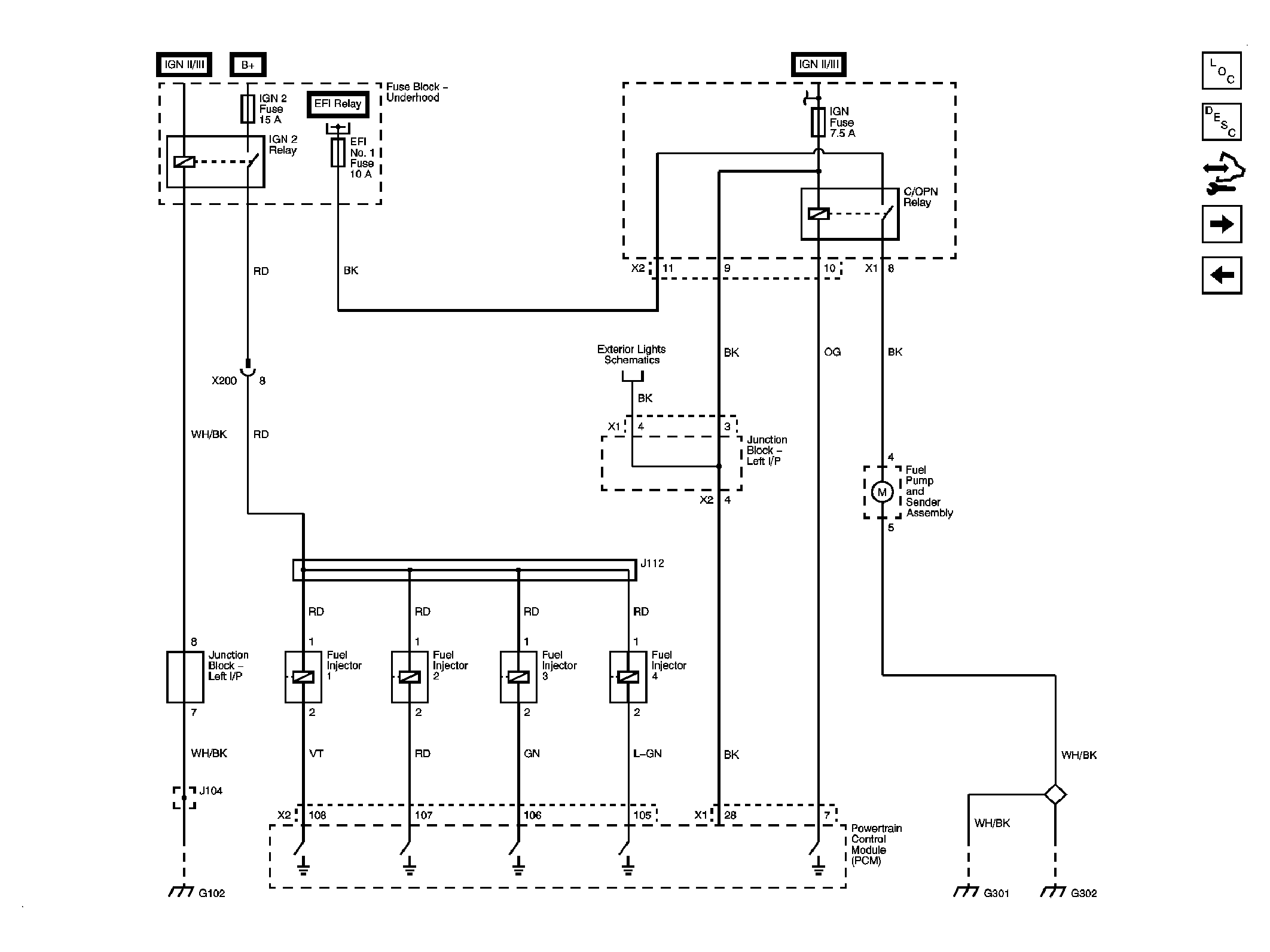

Fig 7: Fuel Injectors and Fuel Pump

Courtesy of GENERAL MOTORS CORP.

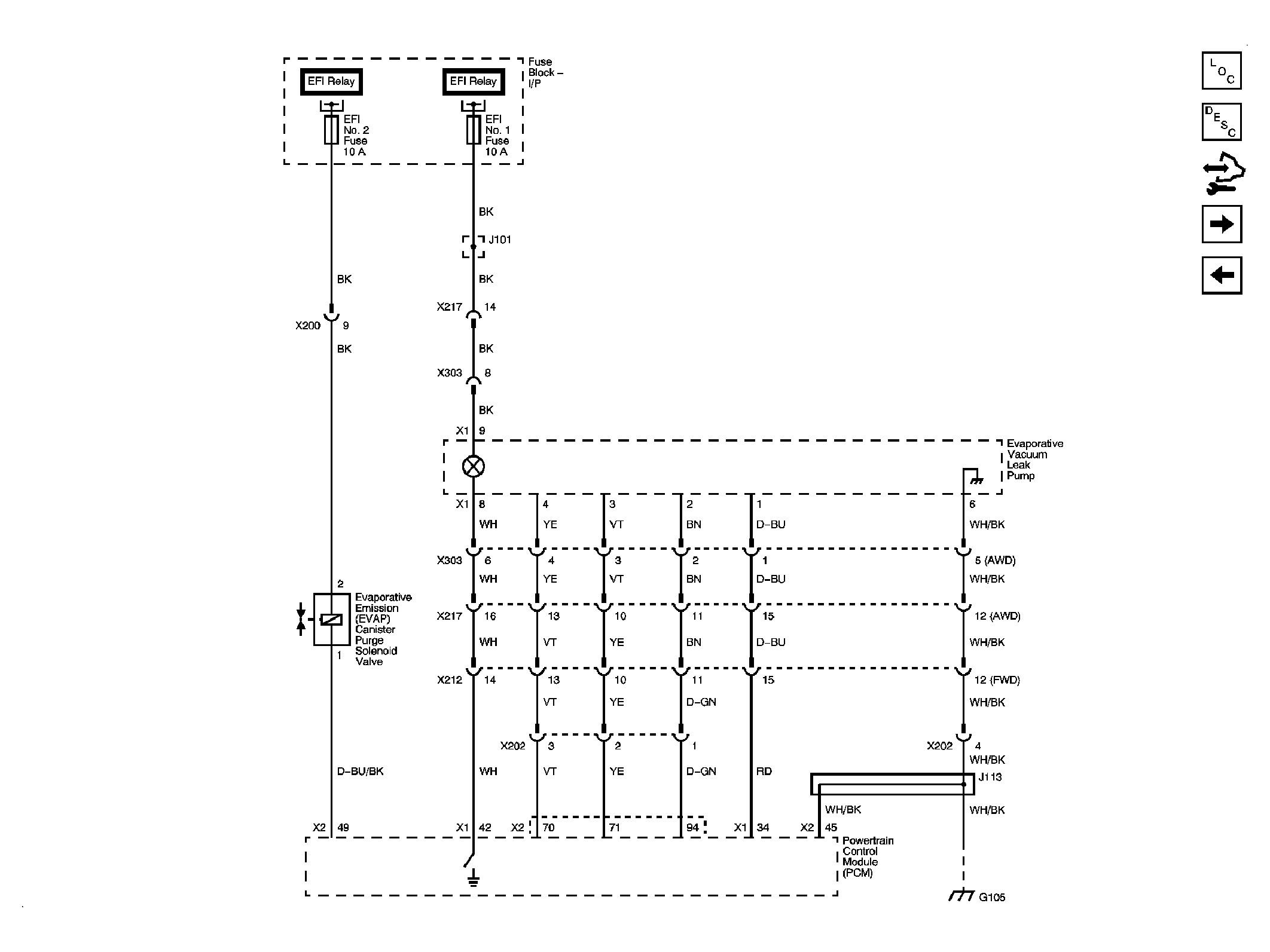

Fig 8: EVAP Controls

Courtesy of GENERAL MOTORS CORP.

Fig 9: Controlled/Monitored Subsystems

Courtesy of GENERAL MOTORS CORP.
