Front of Vehicle/Engine Compartment Component Views

Front of Vehicle/Engine Compartment Component Views

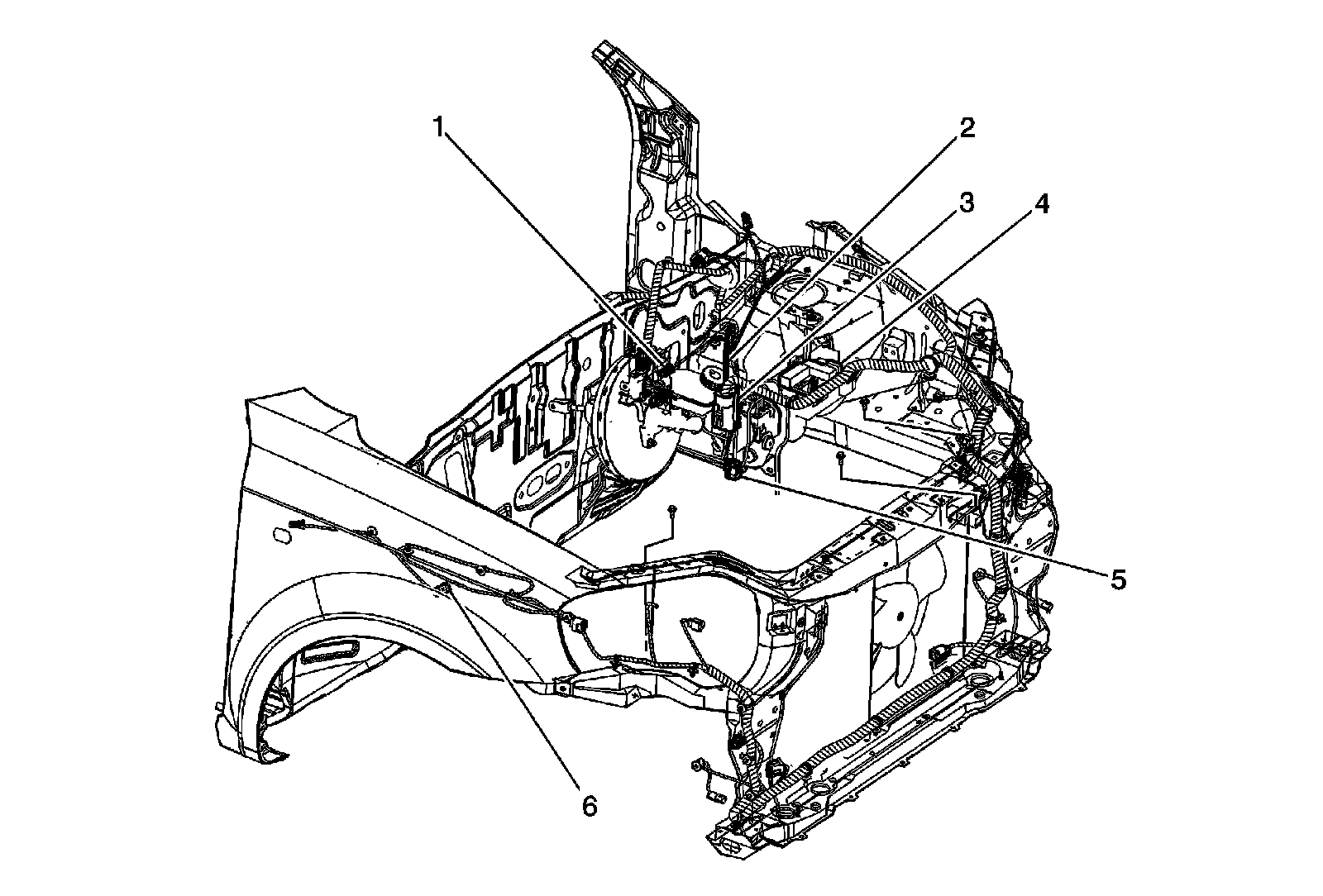

ABS Component Location




1 - Brake Fluid Sensor
2 - Front Wheel Speed Sensor - Left
3 - Electronic Brake Control Module (EBCM) and Brake Pressure Modulator Valve (BPMV)
4 - Engine Compartment Fuse Block
5 - Lamp Driver Module
6 - Front Wheel Speed Sensor - Right
