Air Bag Control Module




Component Connector End Views

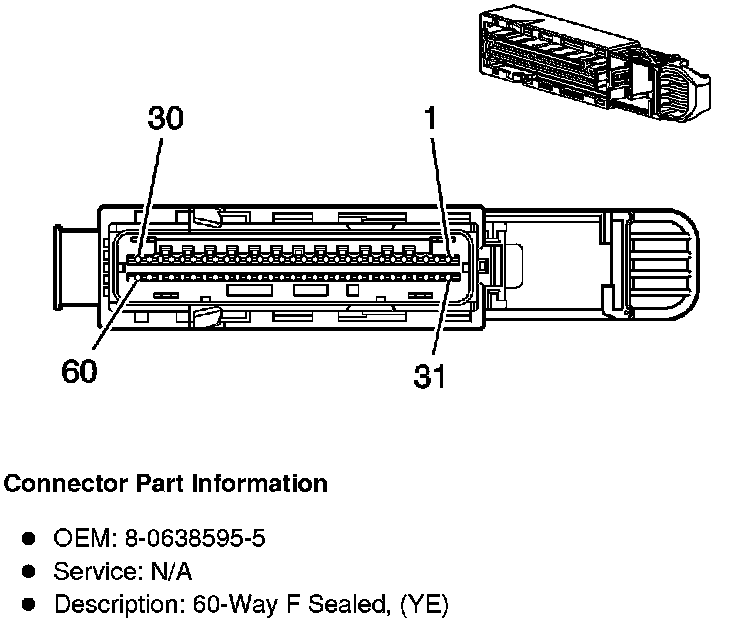

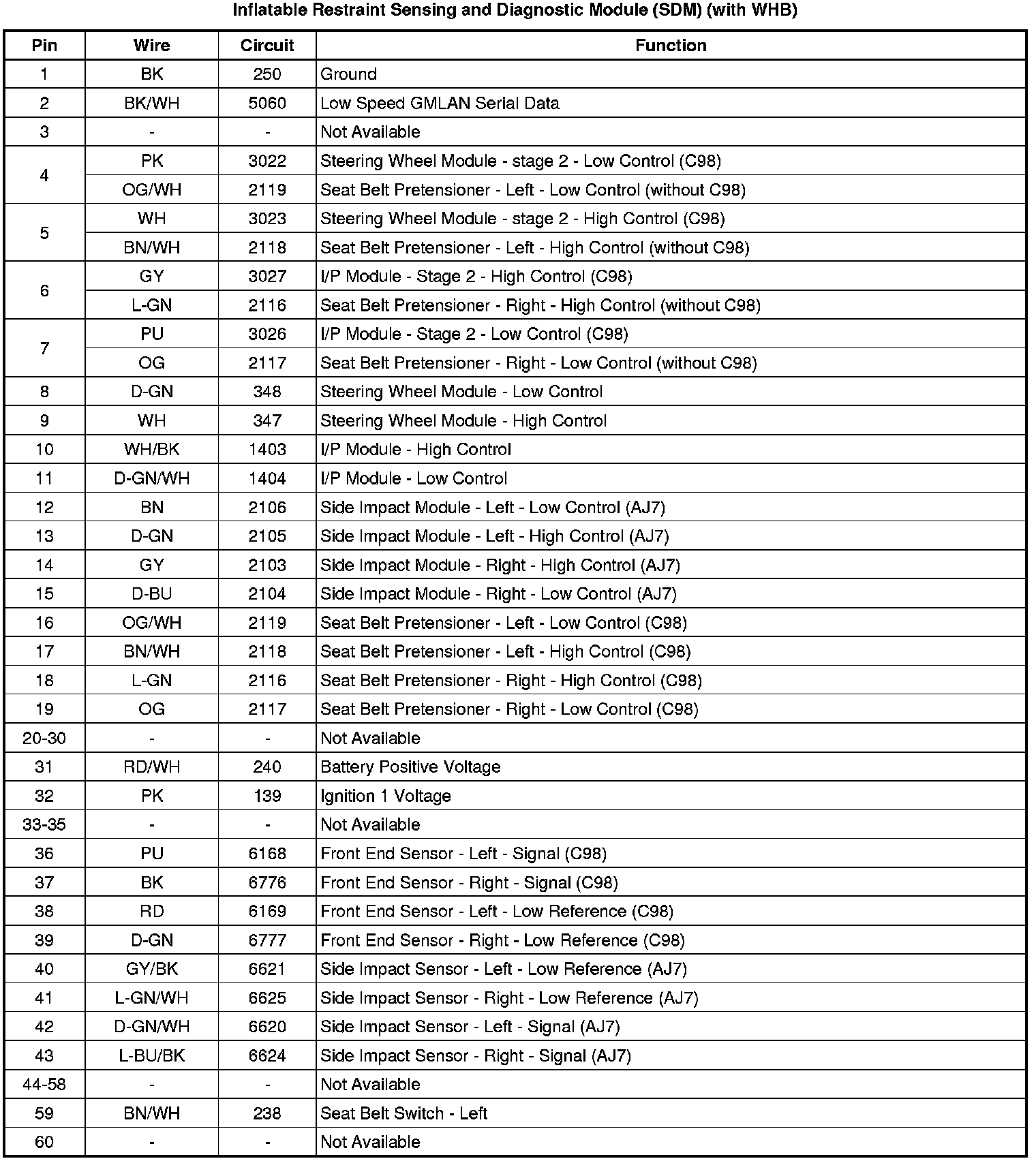

Inflatable Restraint Sensing and Diagnostic Module (SDM) (with WHB)

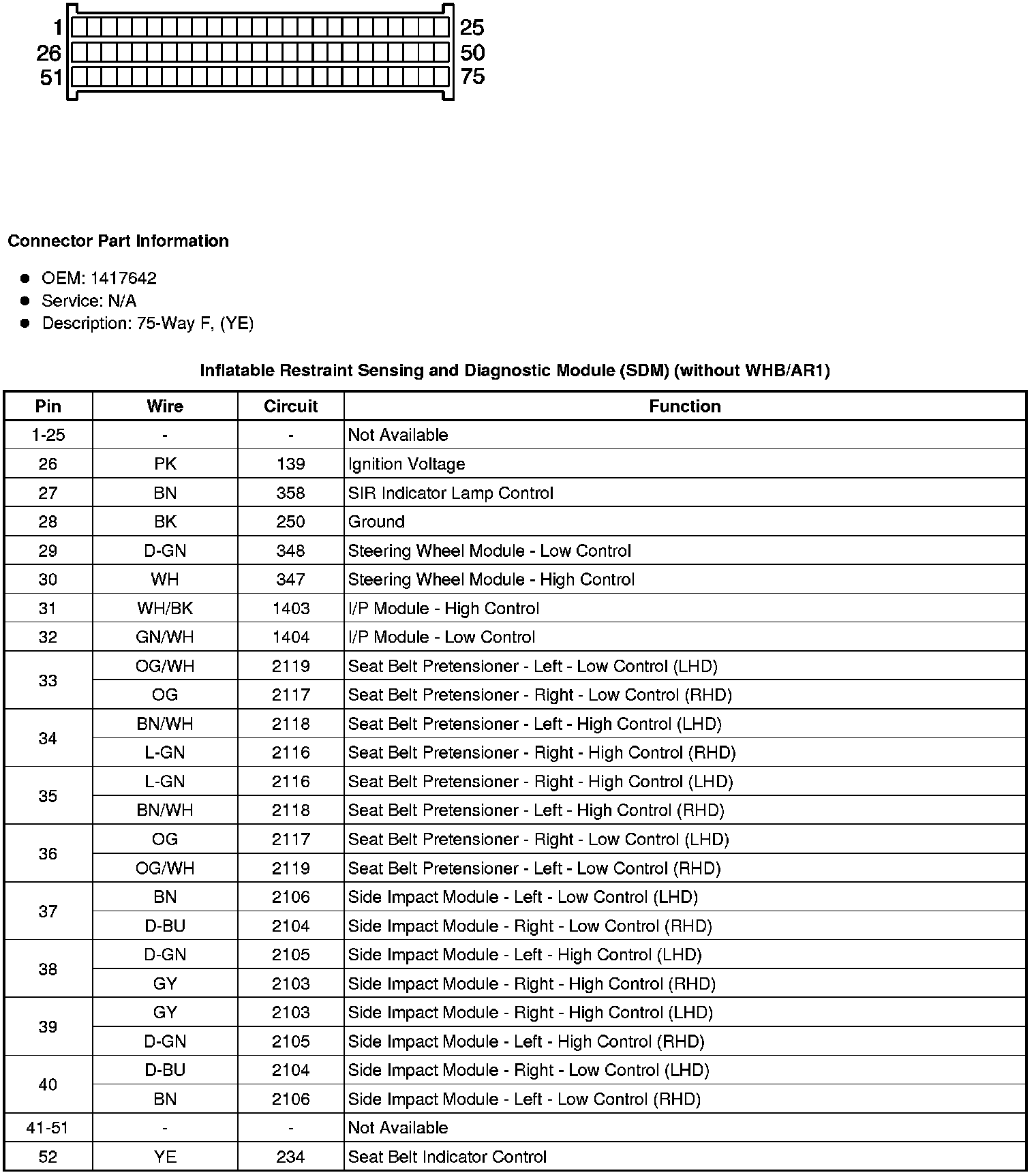

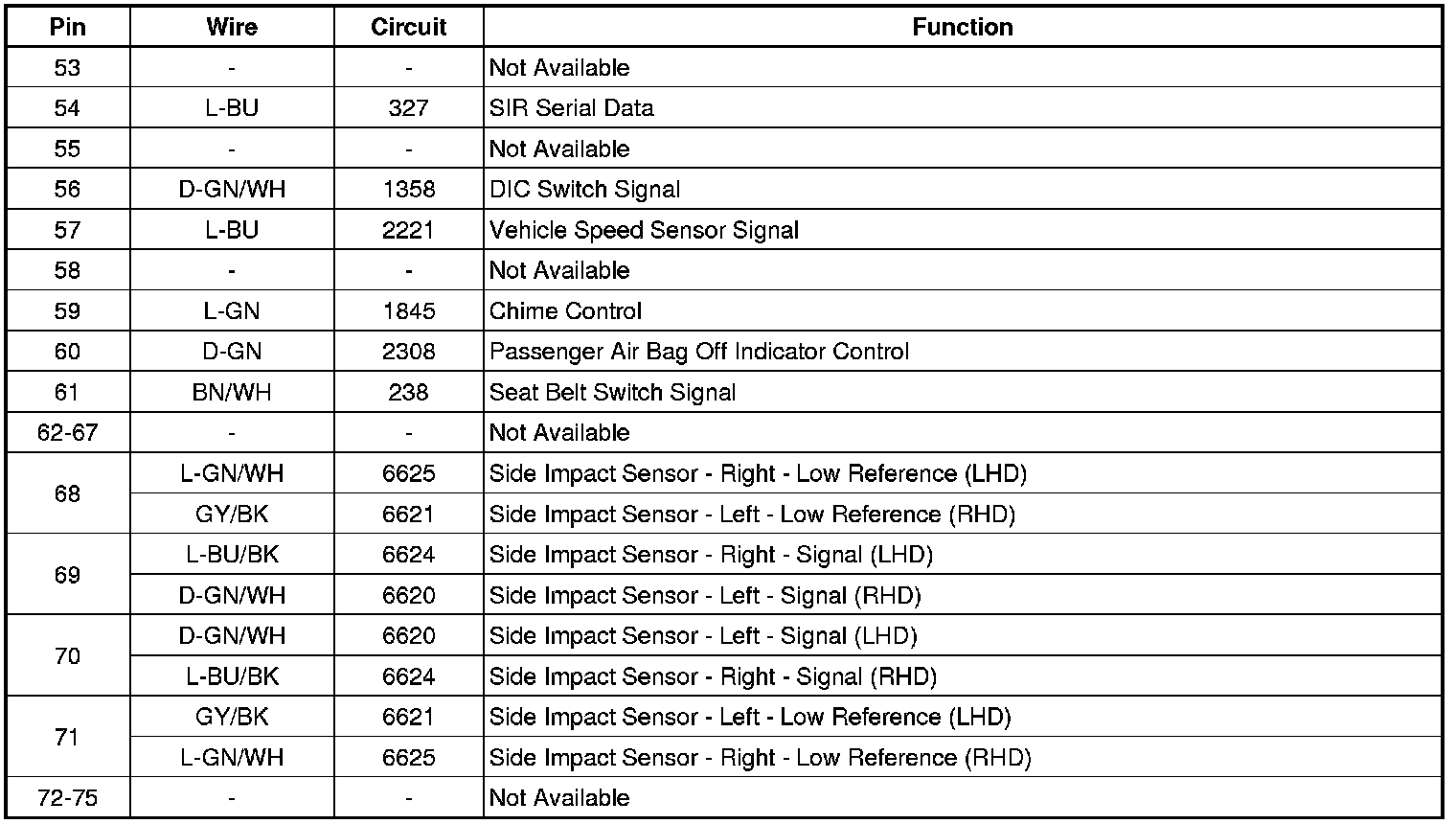

Inflatable Restraint Sensing and Diagnostic Module (SDM) (without WHB/AR1)
