Alarm Module, (Vehicle Antitheft)




Component Connector End Views

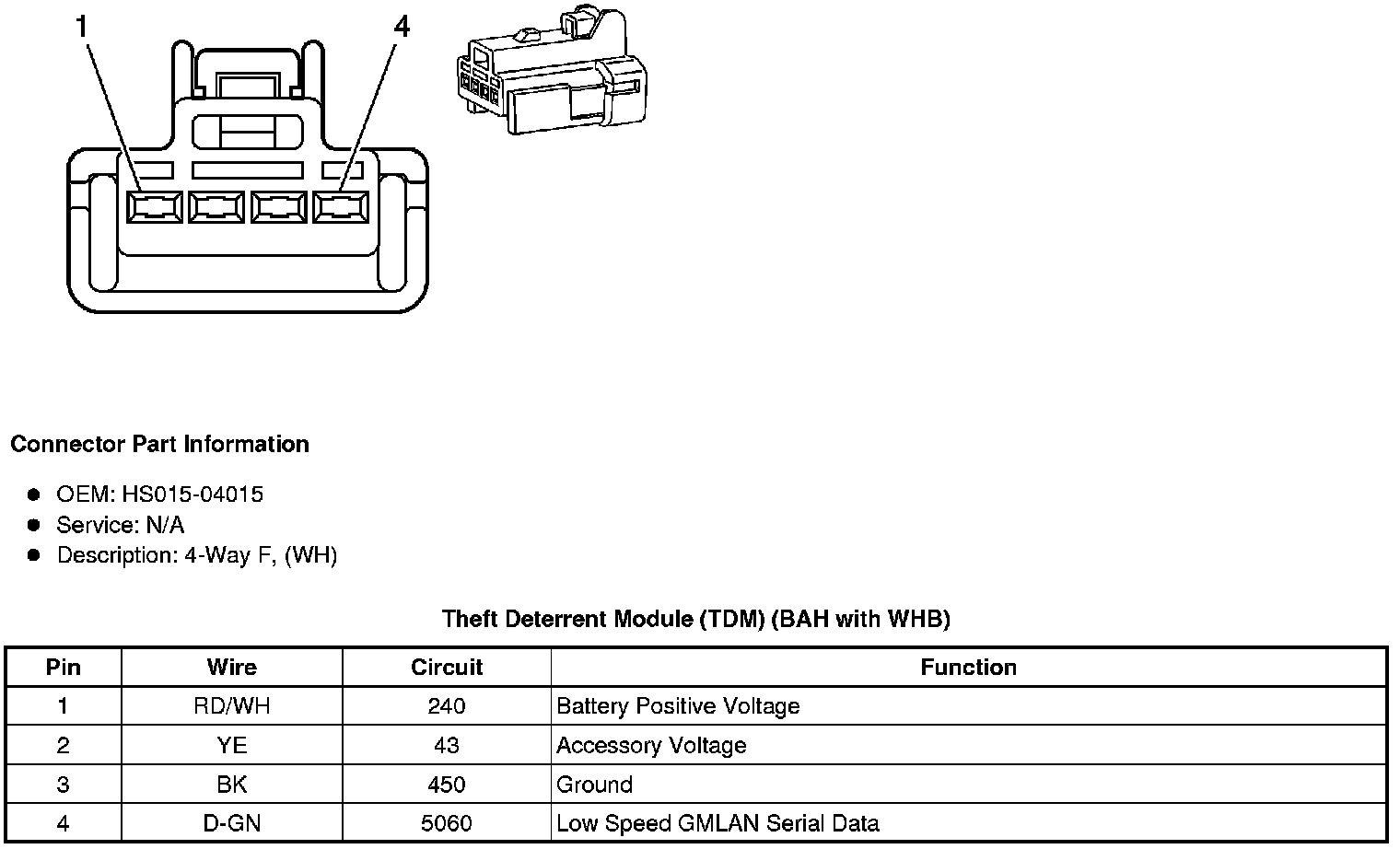

Theft Deterrent Module (TDM) (BAH with WHB)

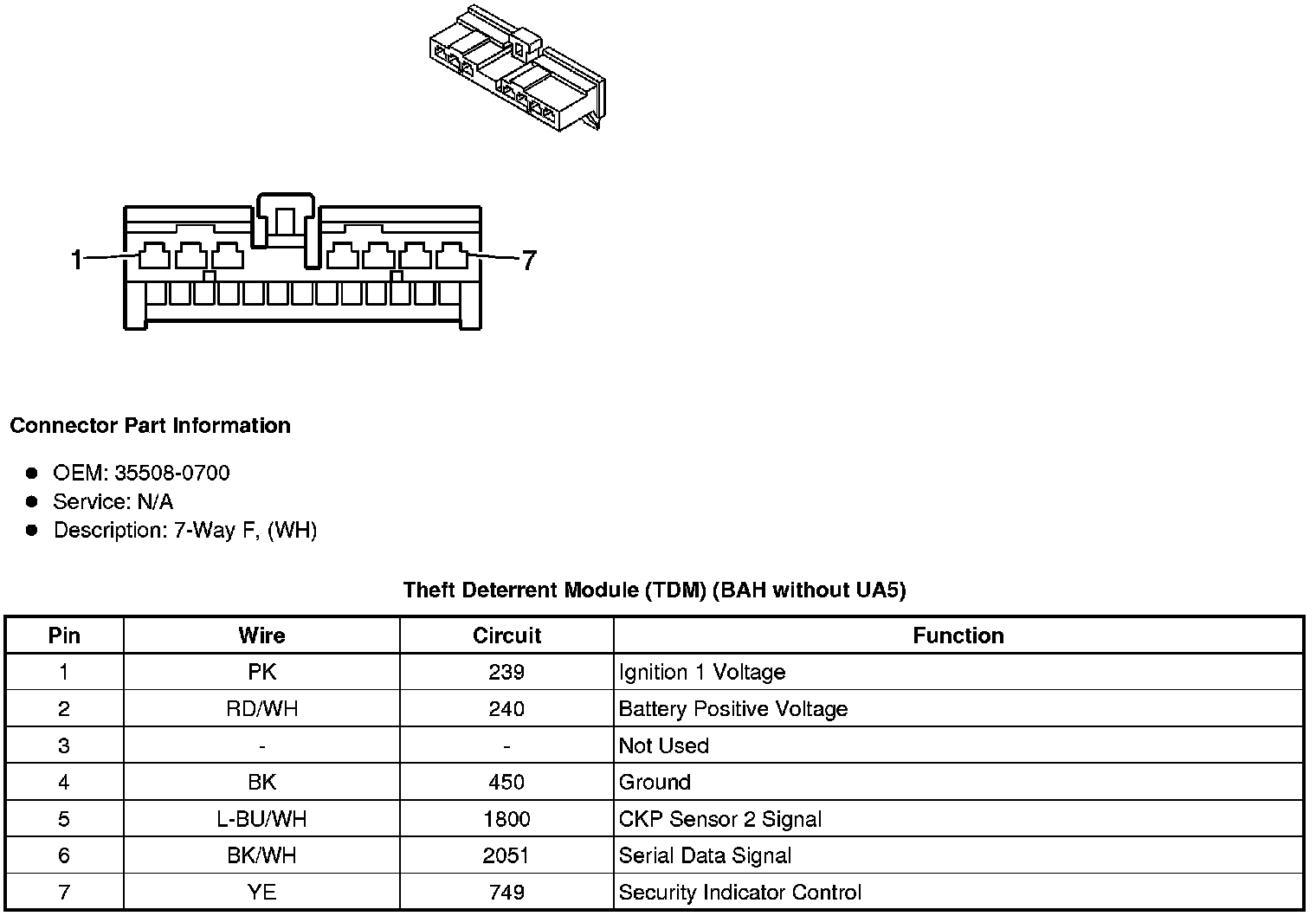

Theft Deterrent Module (TDM) (BAH without UA5)
