Electronic Brake Control Module
Component Connector End Views

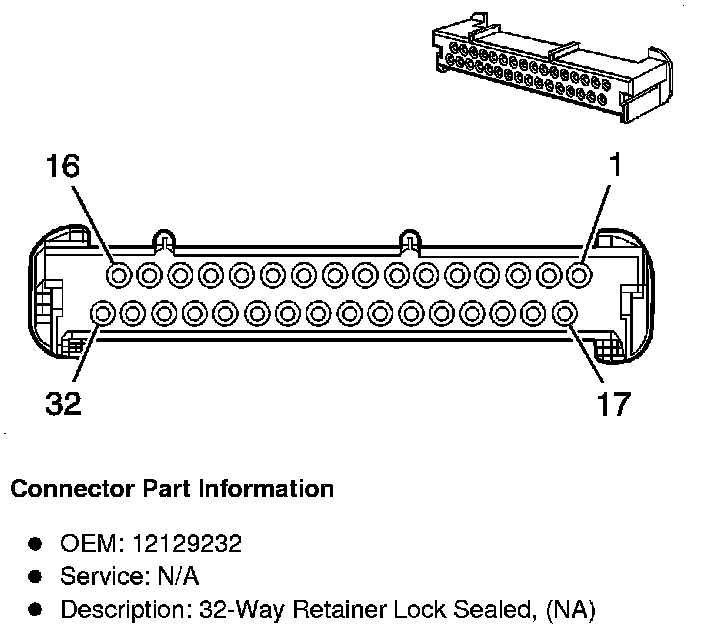

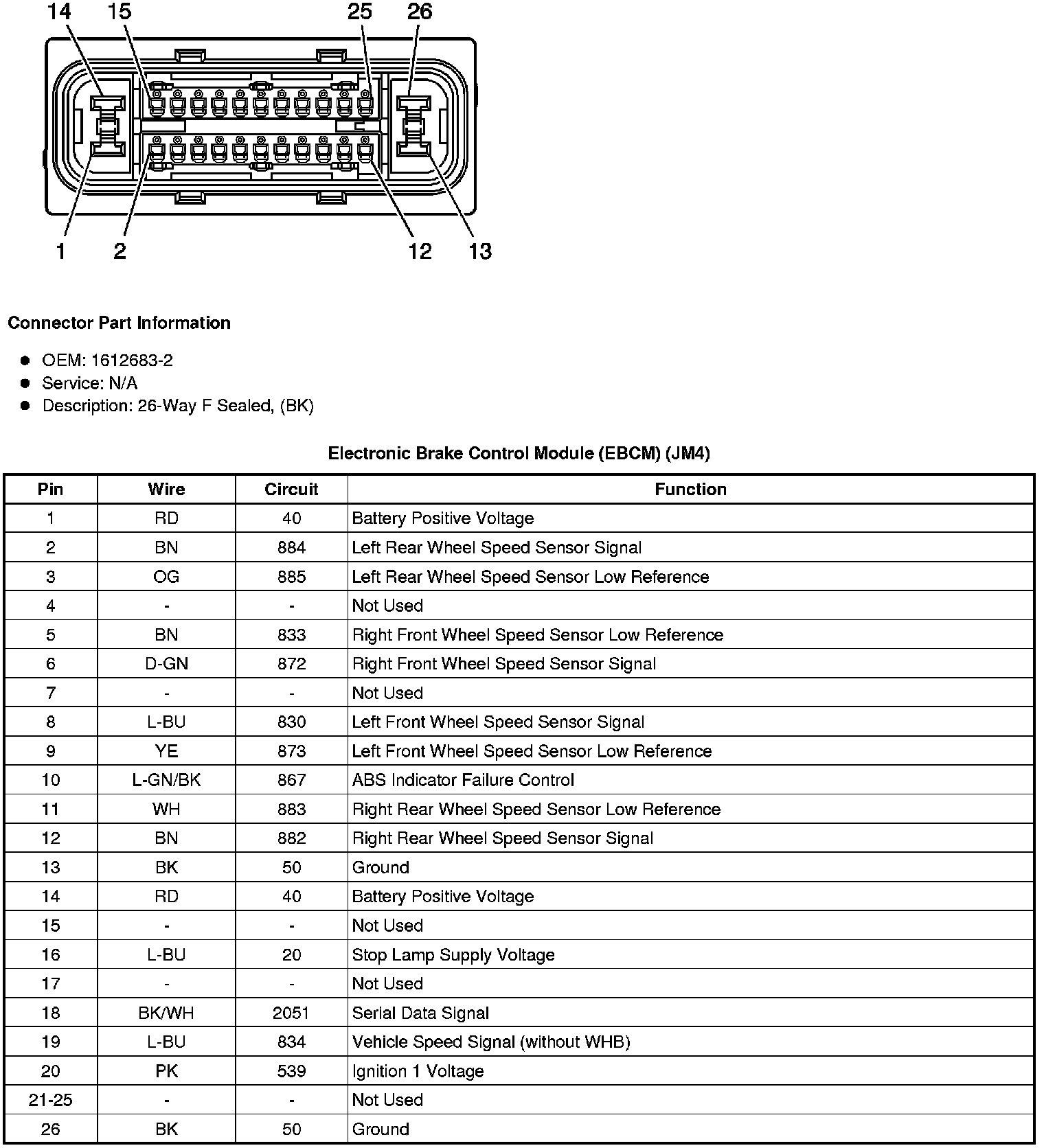

Electronic Brake Control Module (EBCM) (JM4)

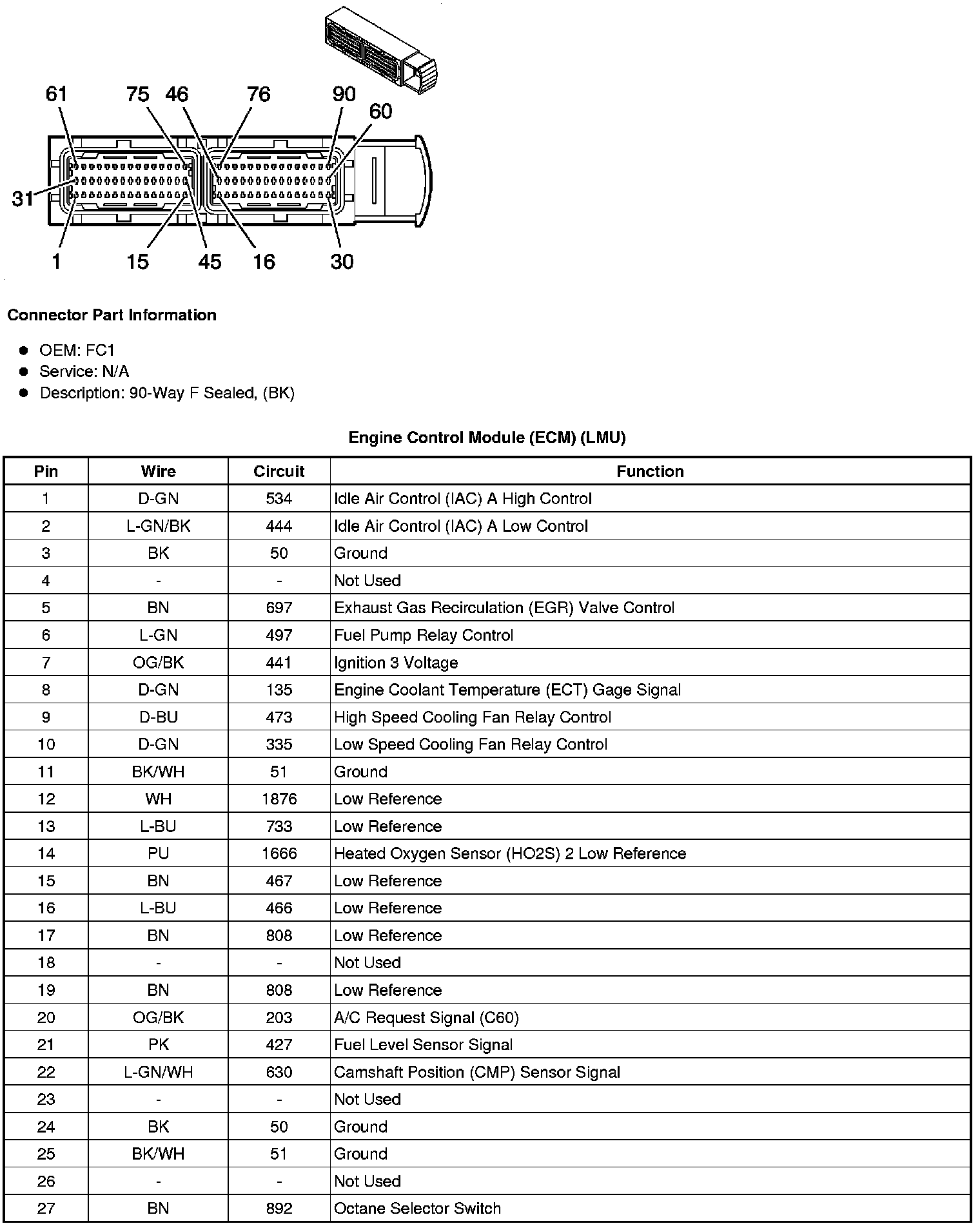

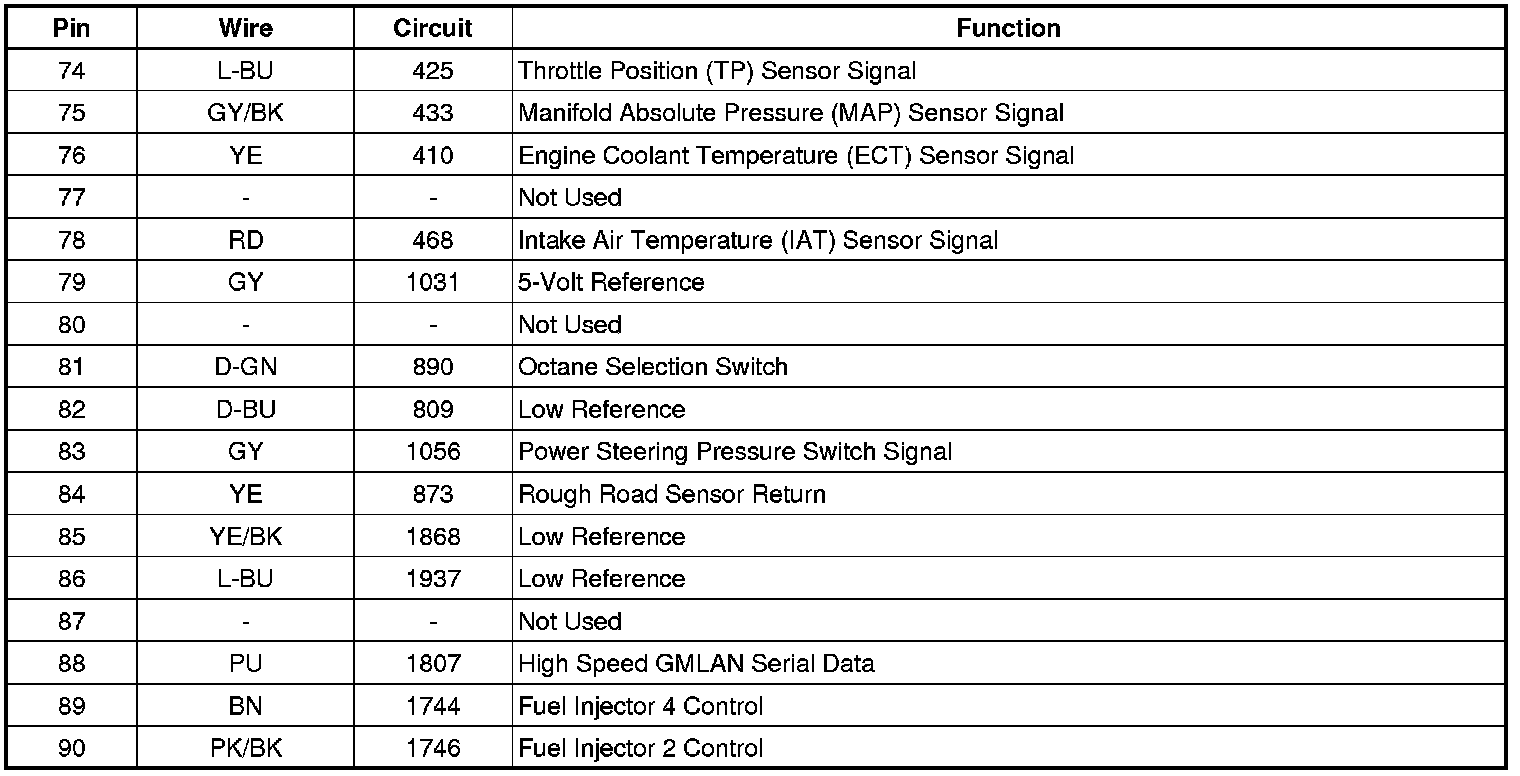

Engine Control Module (ECM) (LMU)

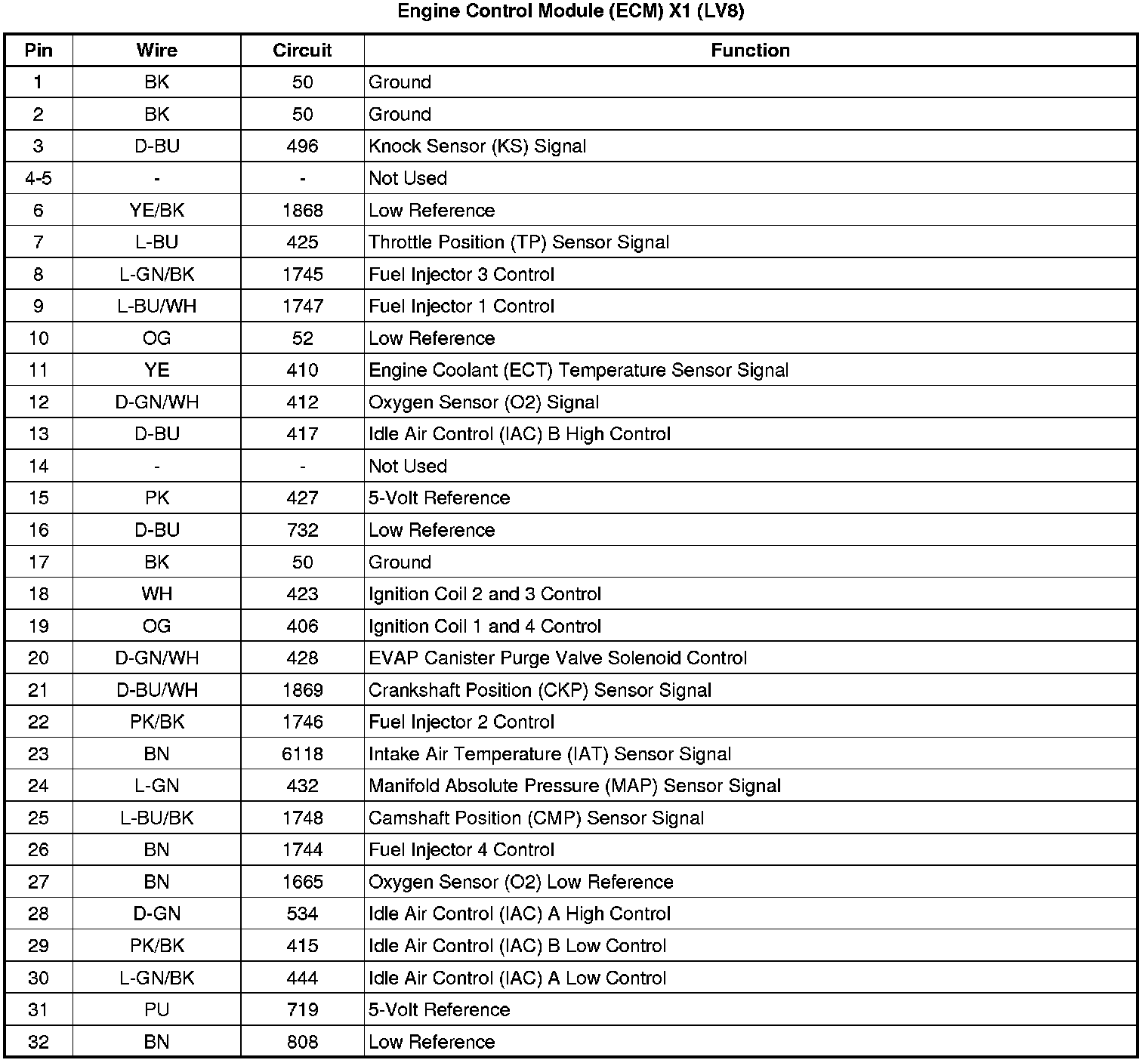

Engine Control Module (ECM) X1 (LV8)

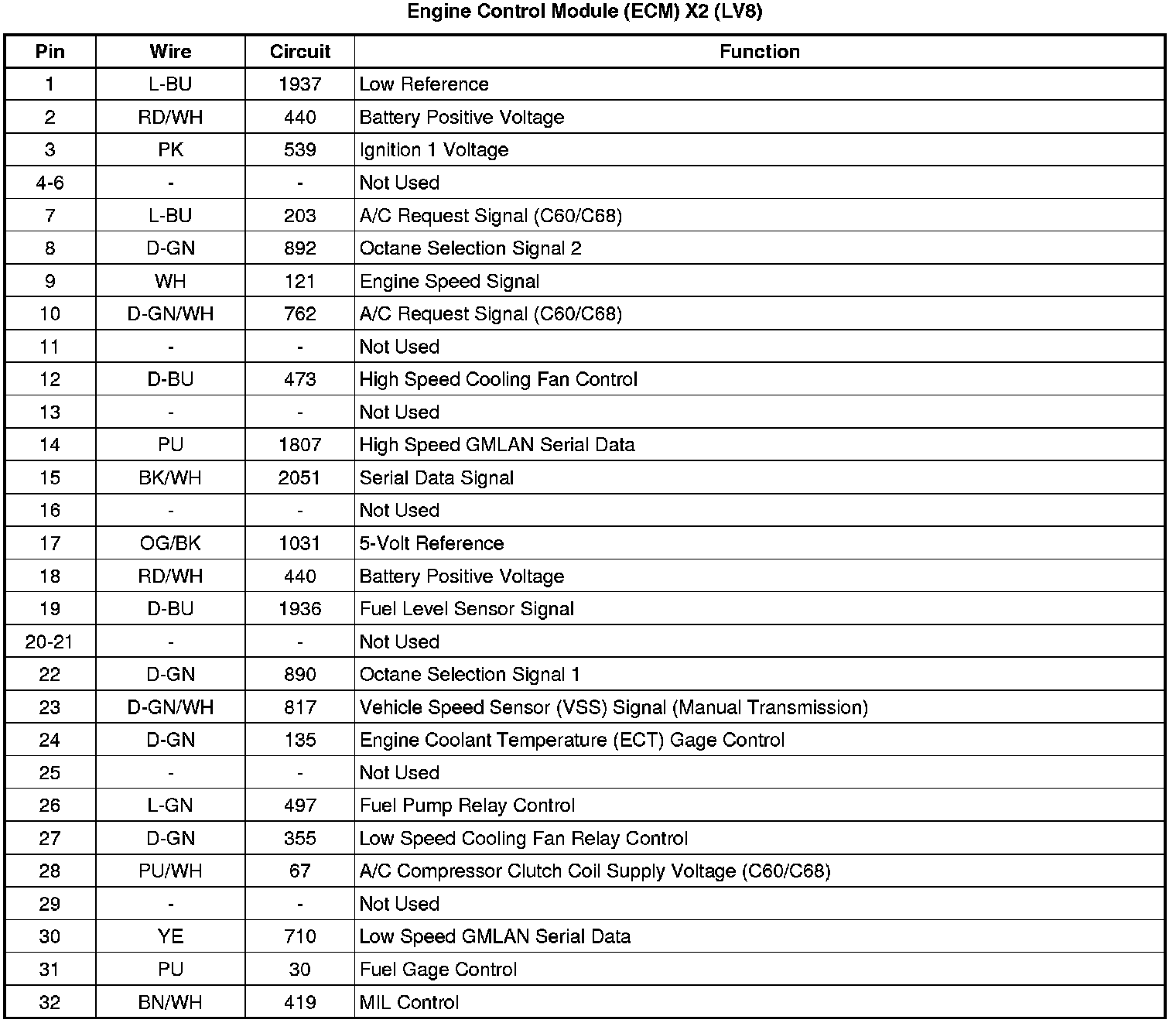

Engine Control Module (ECM) X2 (LV8)

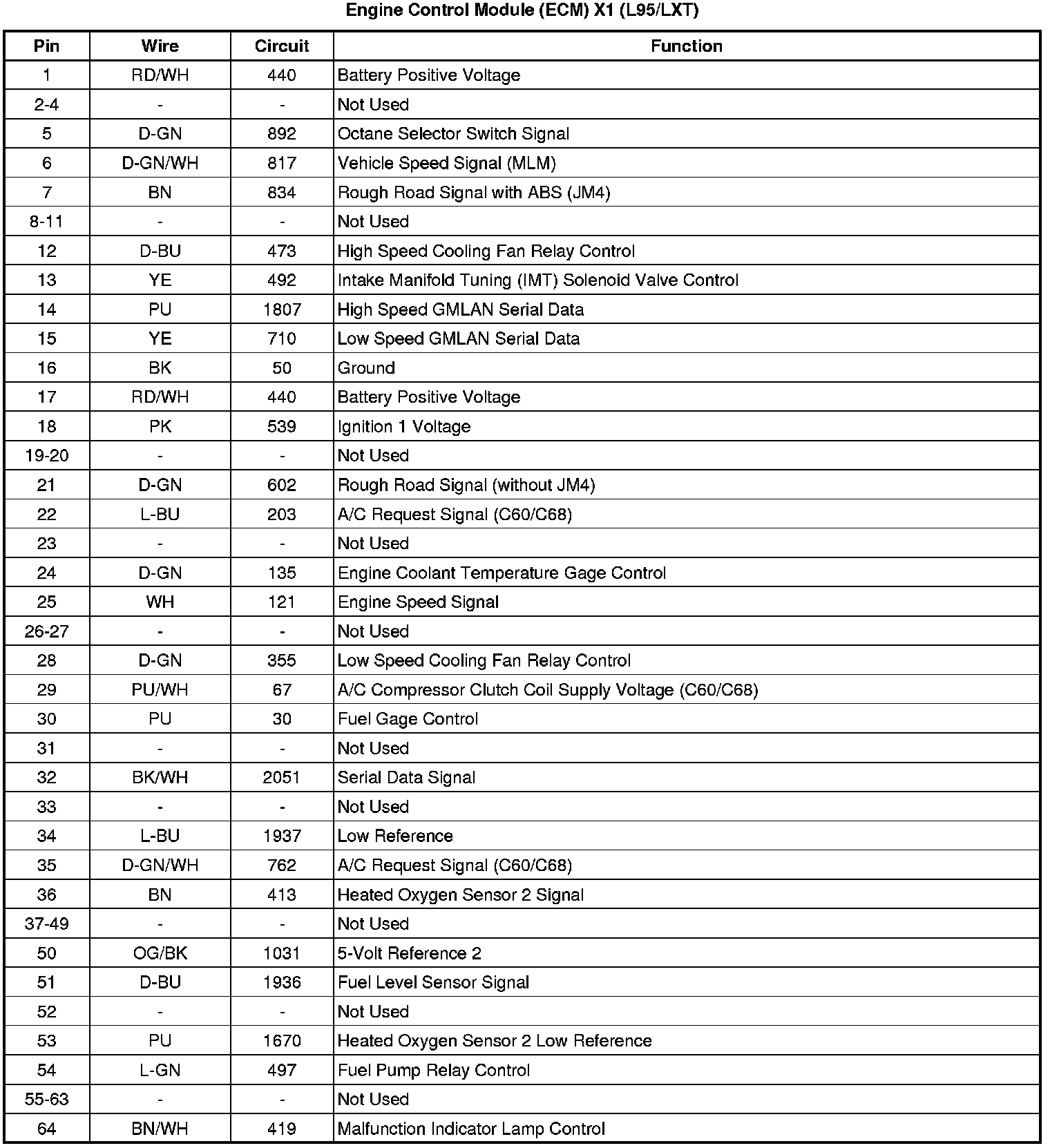

Engine Control Module (ECM) X1 (L95/LXT)

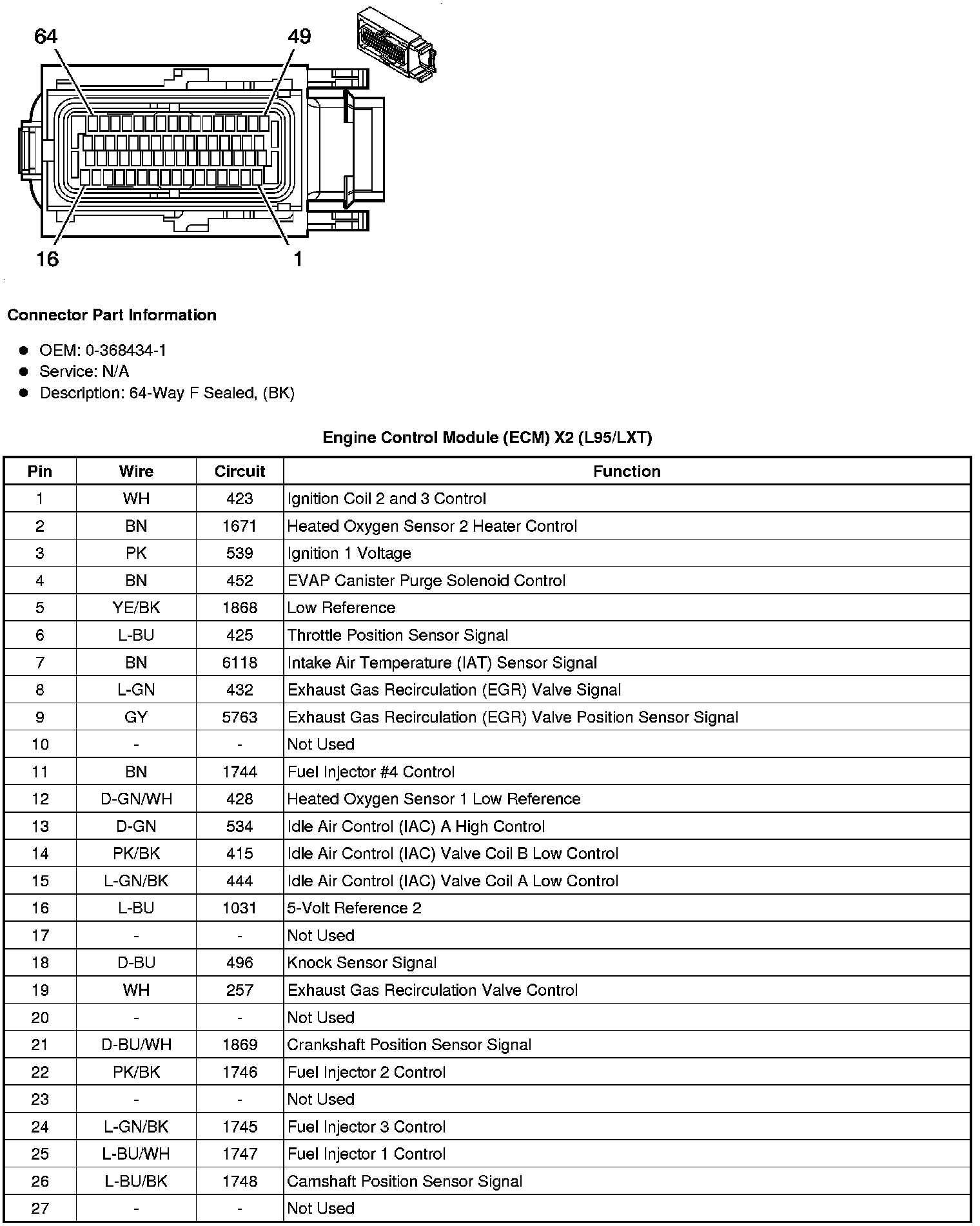

Engine Control Module (ECM) X2 (L95/LXT)

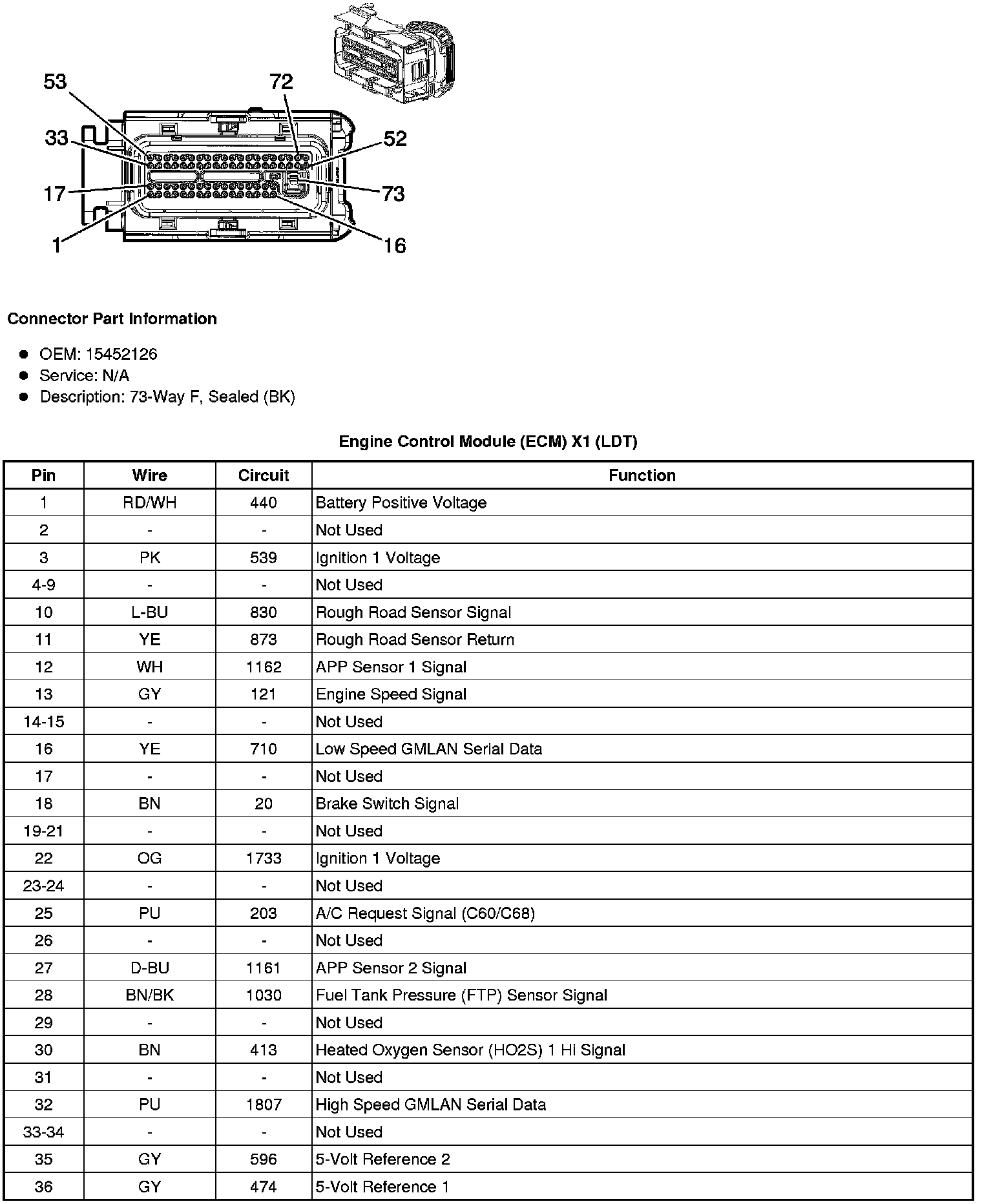

Engine Control Module (ECM) X1 (LDT)

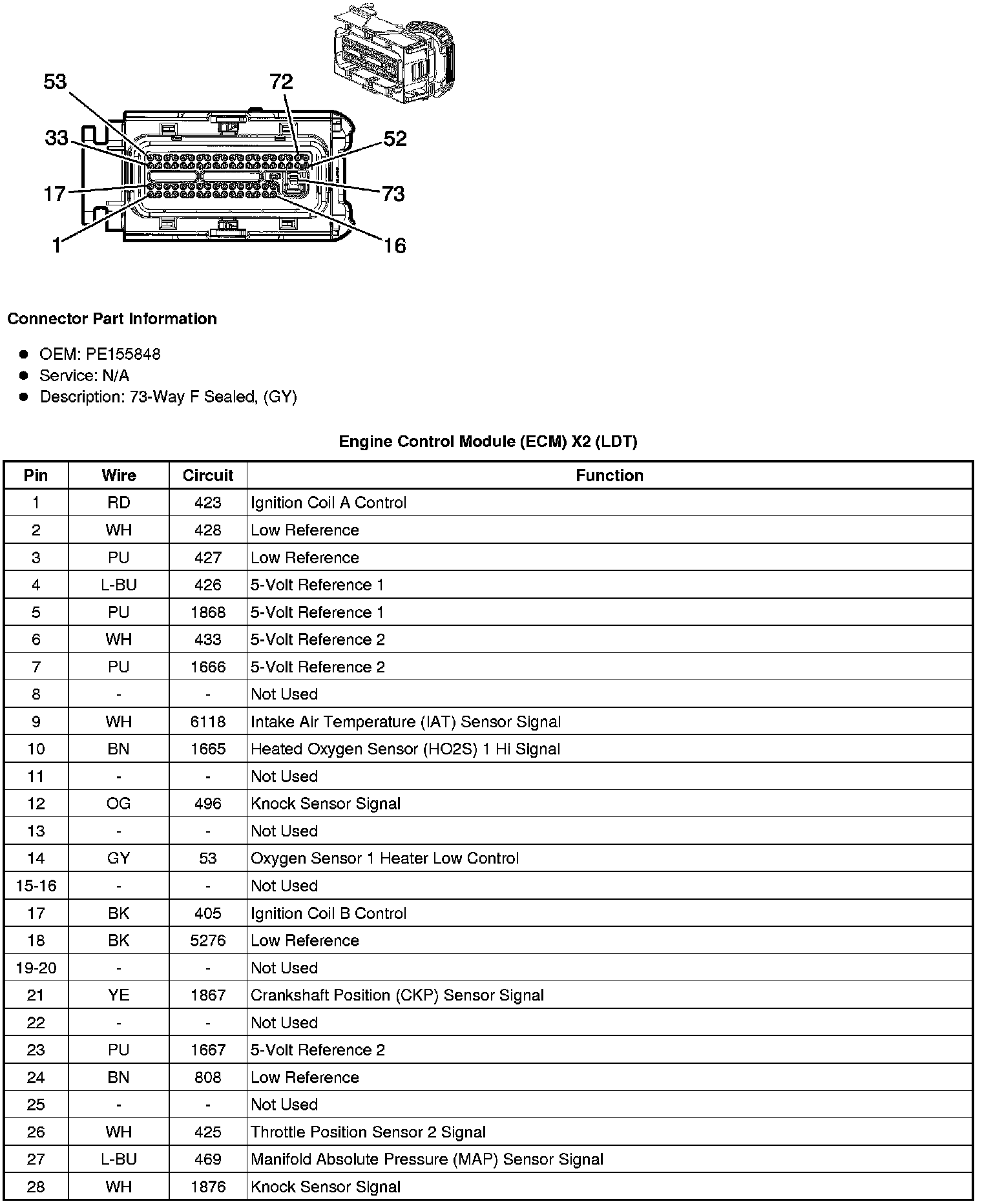

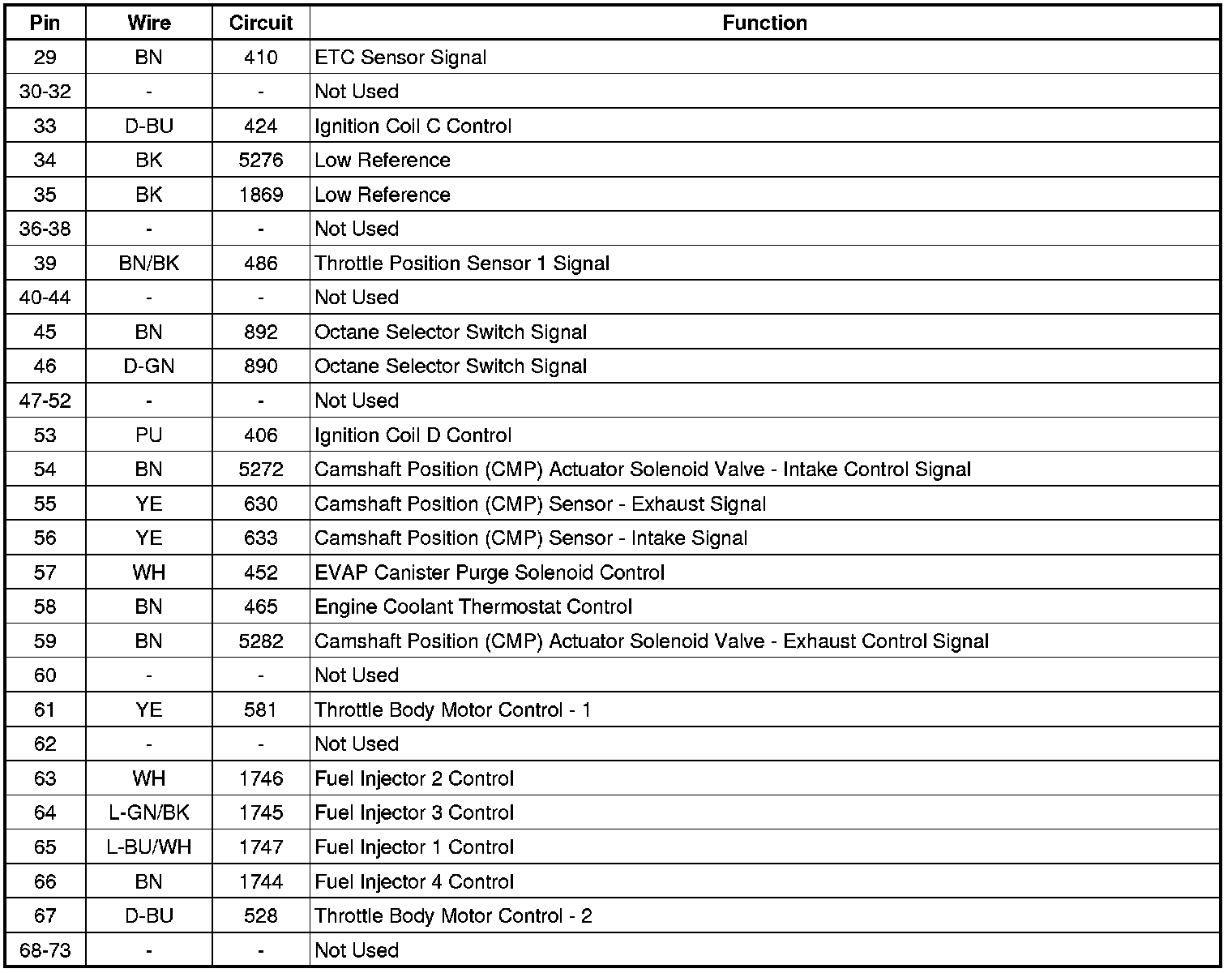

Engine Control Module (ECM) X2 (LDT)

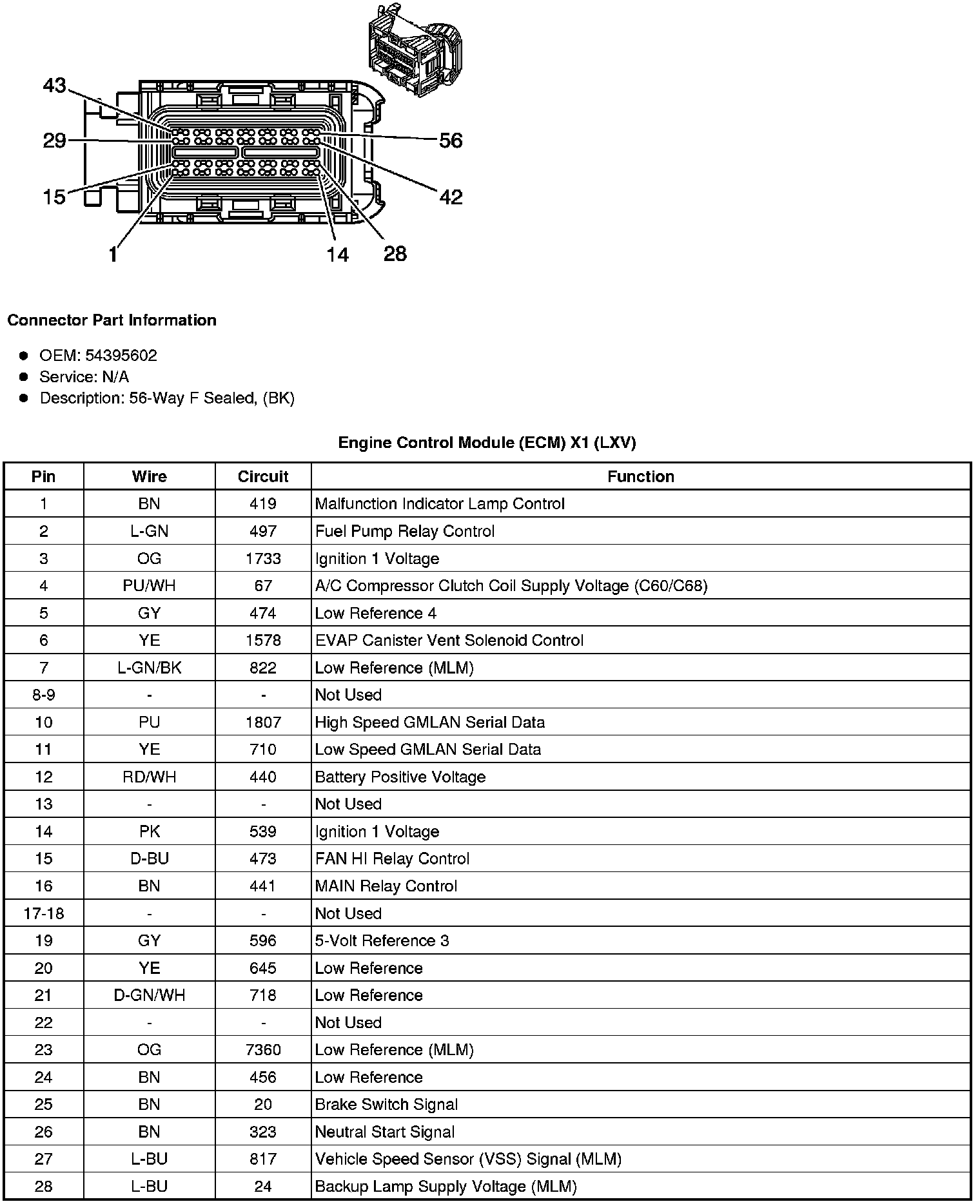

Engine Control Module (ECM) X1 (LXV)

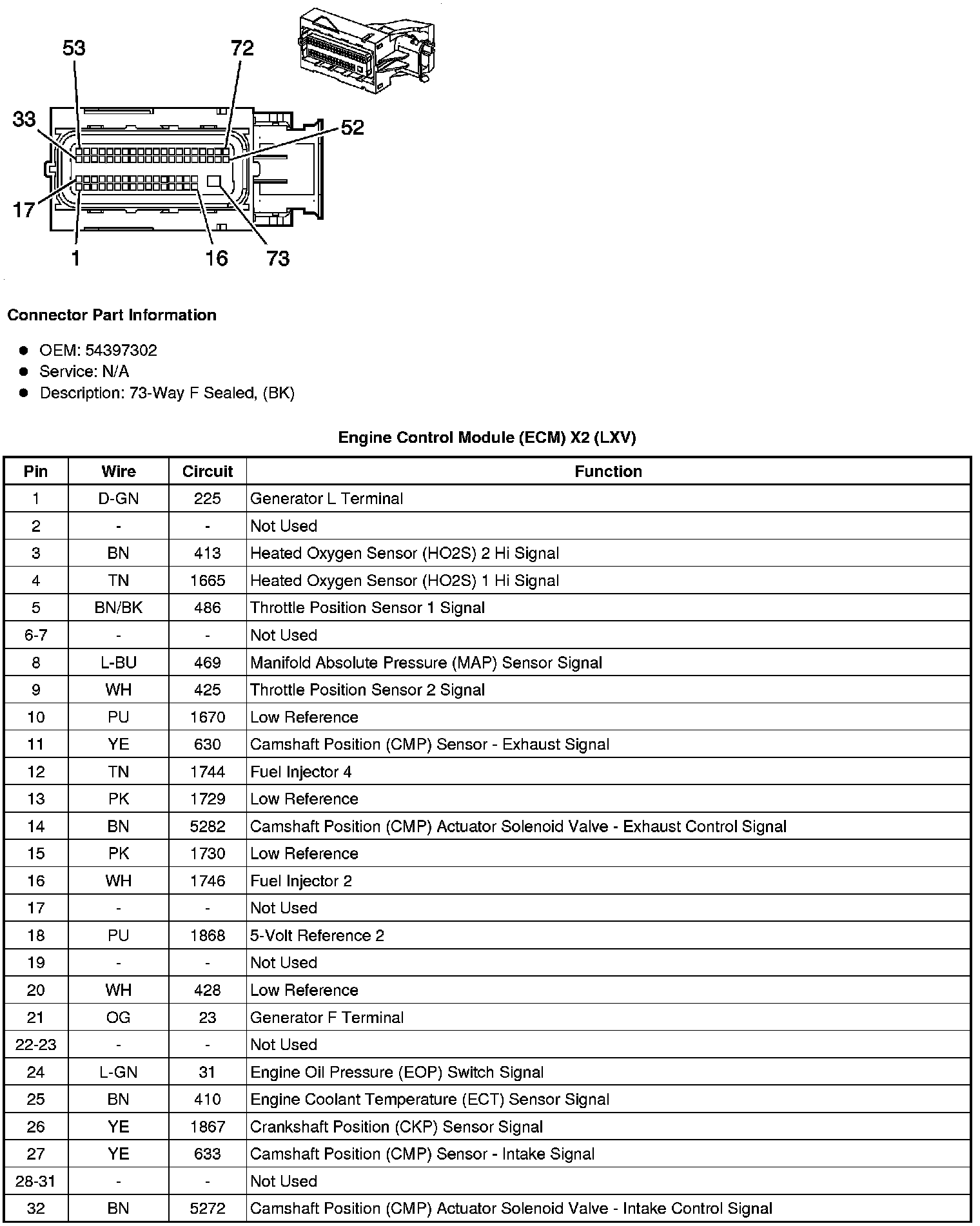

Engine Control Module (ECM) X2 (LXV)
