Shift Select Control

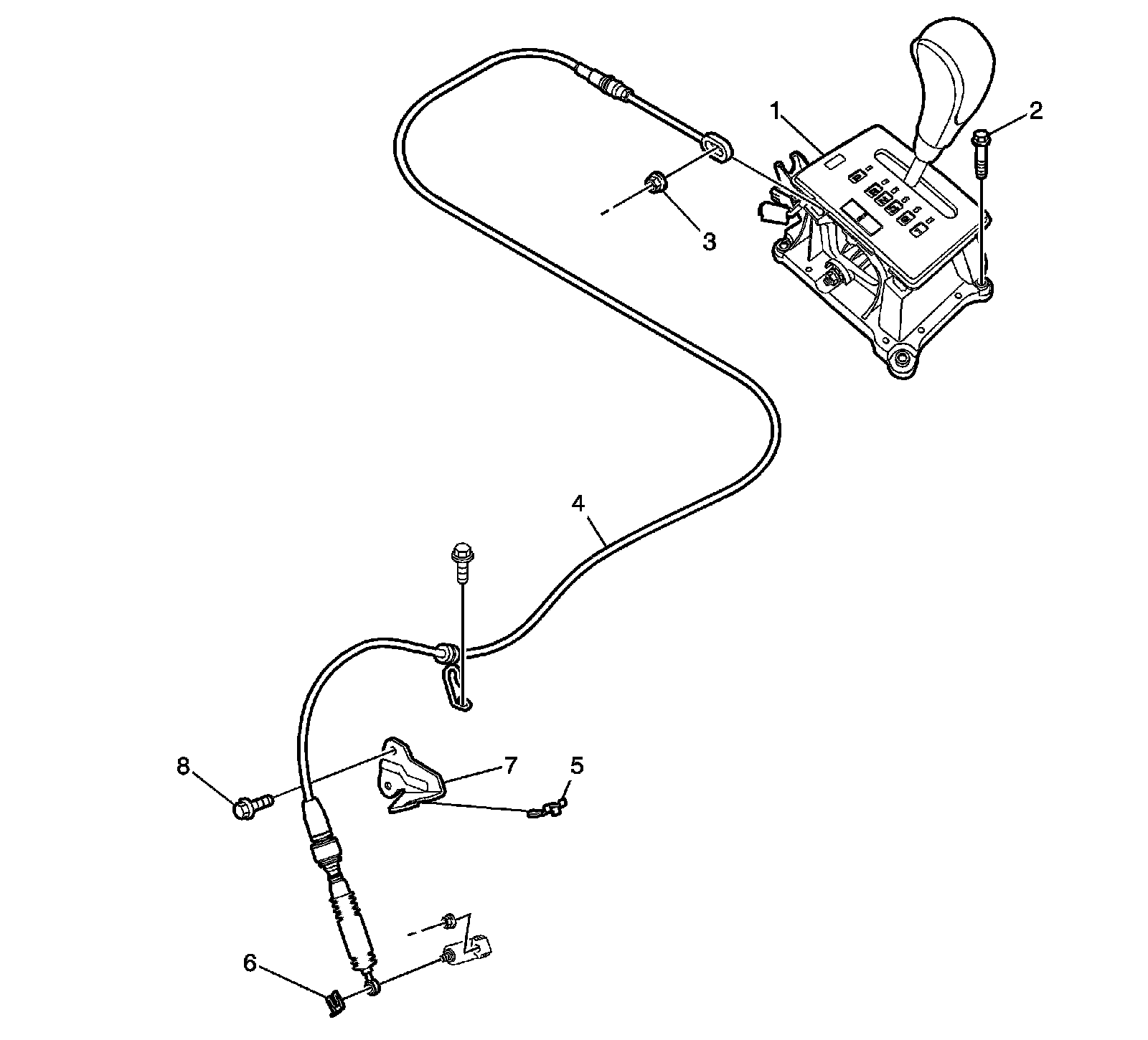

Shift Select Control




1 - Select Control Lever Assembly
2 - Bolt
3 - Nut
4 - Select Control Cable
5 - Clamp
6 - E-Ring
7 - Cable Fastener
8 - Bolt
