Component Locations

Passenger Compartment/Roof Component Views

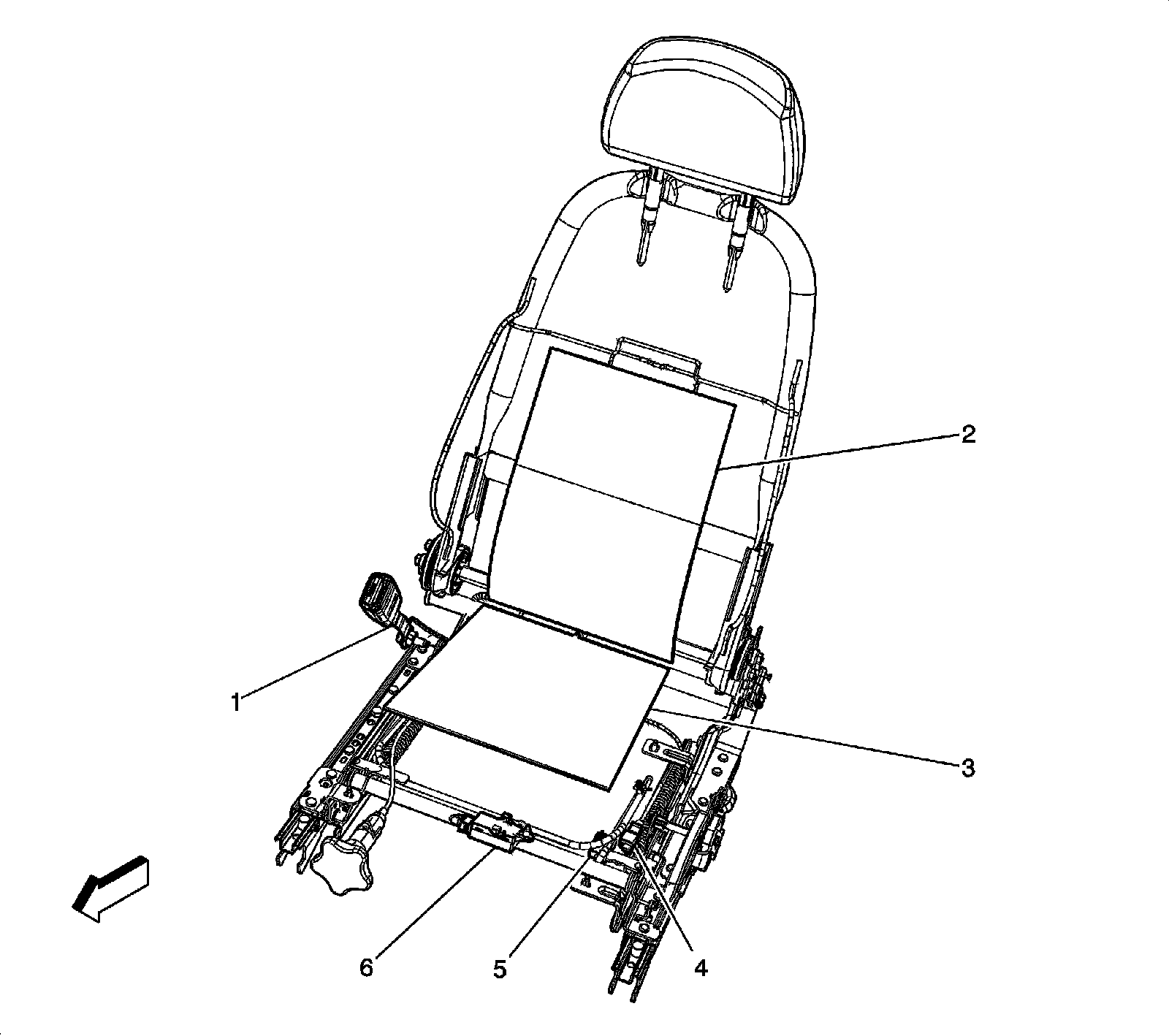

Driver Seat




1 - Seat Belt Buckle - Driver and Seat Belt Switch - Driver
2 - Heated Seat Element - Driver Back (KA1)
3 - Heated Seat Element - Driver Cushion (KA1)
4 - Seat Belt Buckle - Driver Connector
5 - X315 (KA1)
6 - Heated Seat Control Module - Driver (KA1)

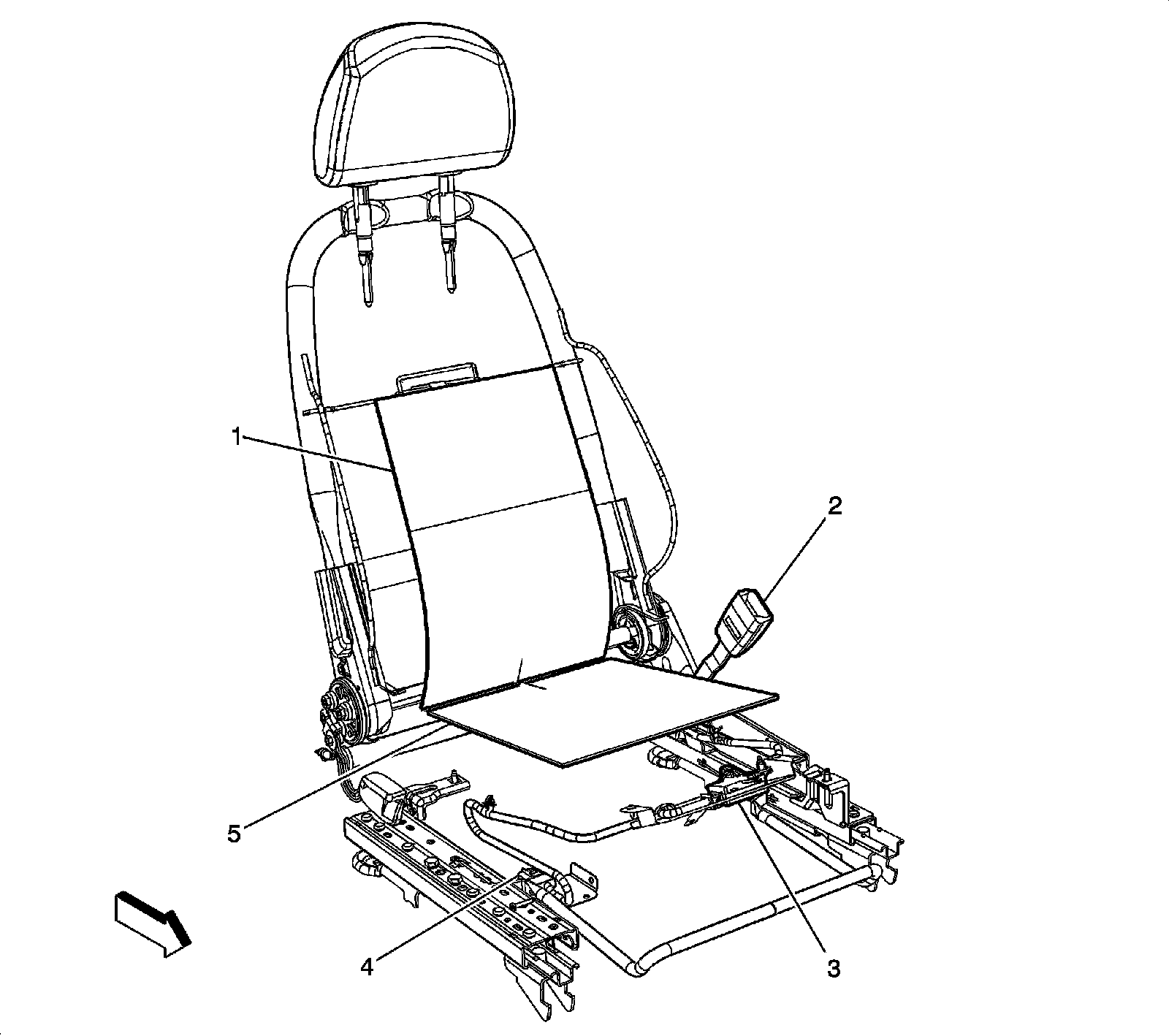

Passenger Seat




1 - Heated Seat Element - Passenger Back (KA1)
2 - Seat Belt Buckle - Passenger and Seat Belt Switch - Passenger
3 - Heated Seat Control Module - Passenger (KA1)
4 - X314 (KA1)
5 - Heated Seat Element - Passenger Cushion (KA1)
