Front of Vehicle/Engine Compartment Component Views

Fig 1: Front Lights

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Side Marker Lamp - Right
2	Headlamp - Right
3	Headlamp - Left
4	Side Marker Lamp - Left
5	Park/Turn Signal Lamp - Left
6	Fog Lamp - Left Front (T37)
7	Fog Lamp - Right Front (T37)
8	Park/Turn Signal Lamp - Right

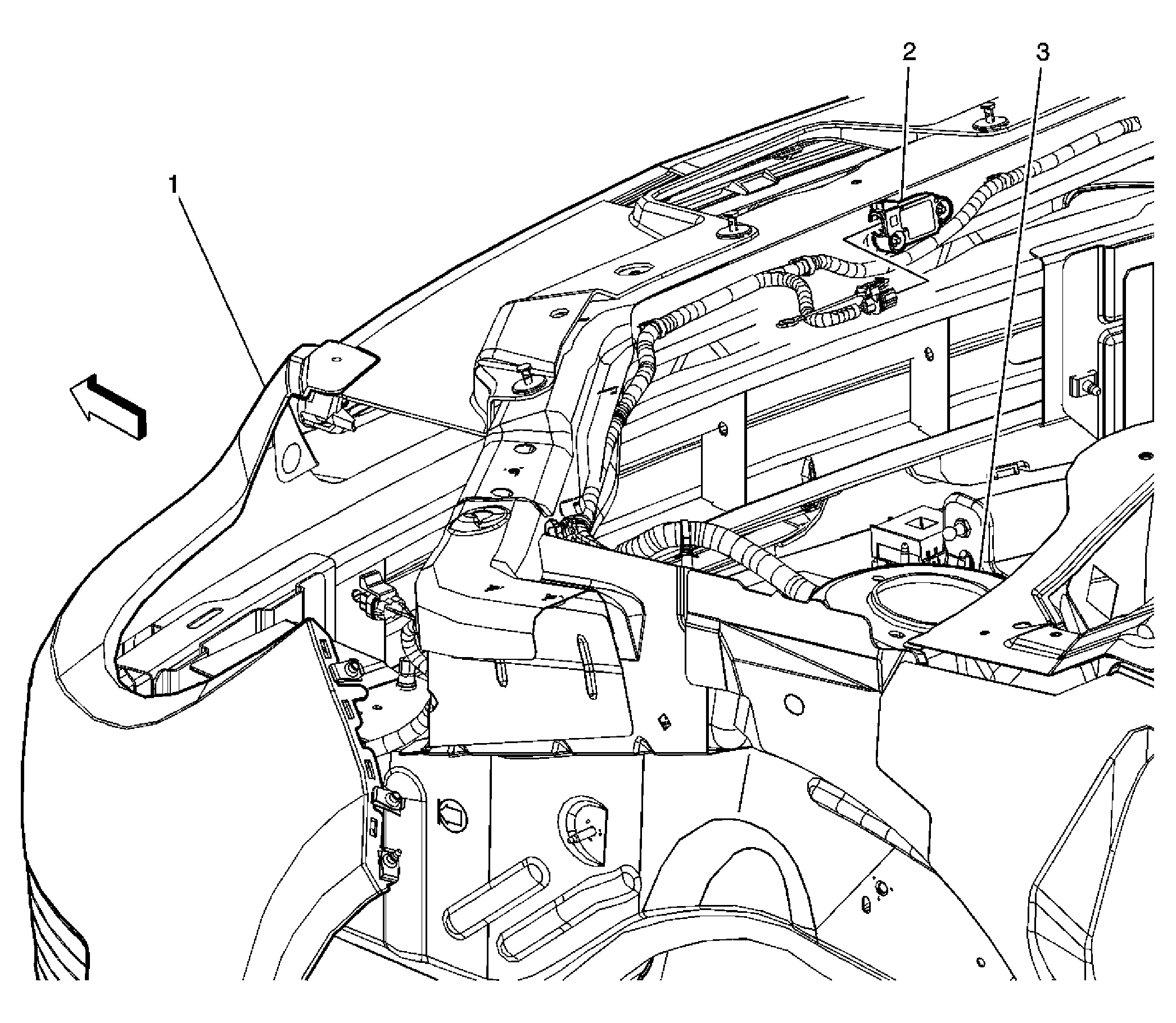

Fig 2: Front End Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fascia
2	Inflatable Restraint Front End Sensor
3	Left Front Strut Tower

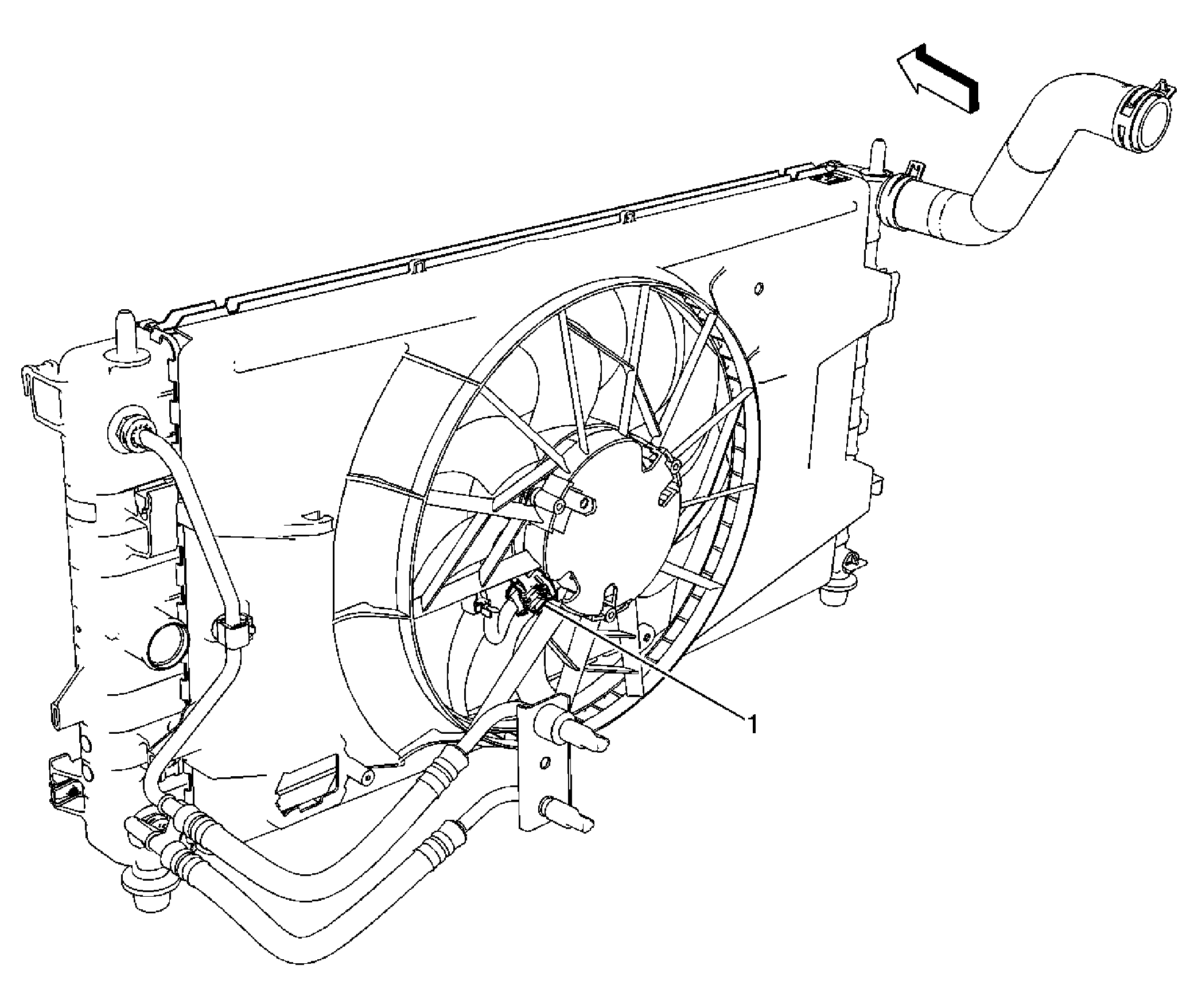

Fig 3: Engine Cooling Fan (LAP)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Cooling Fan

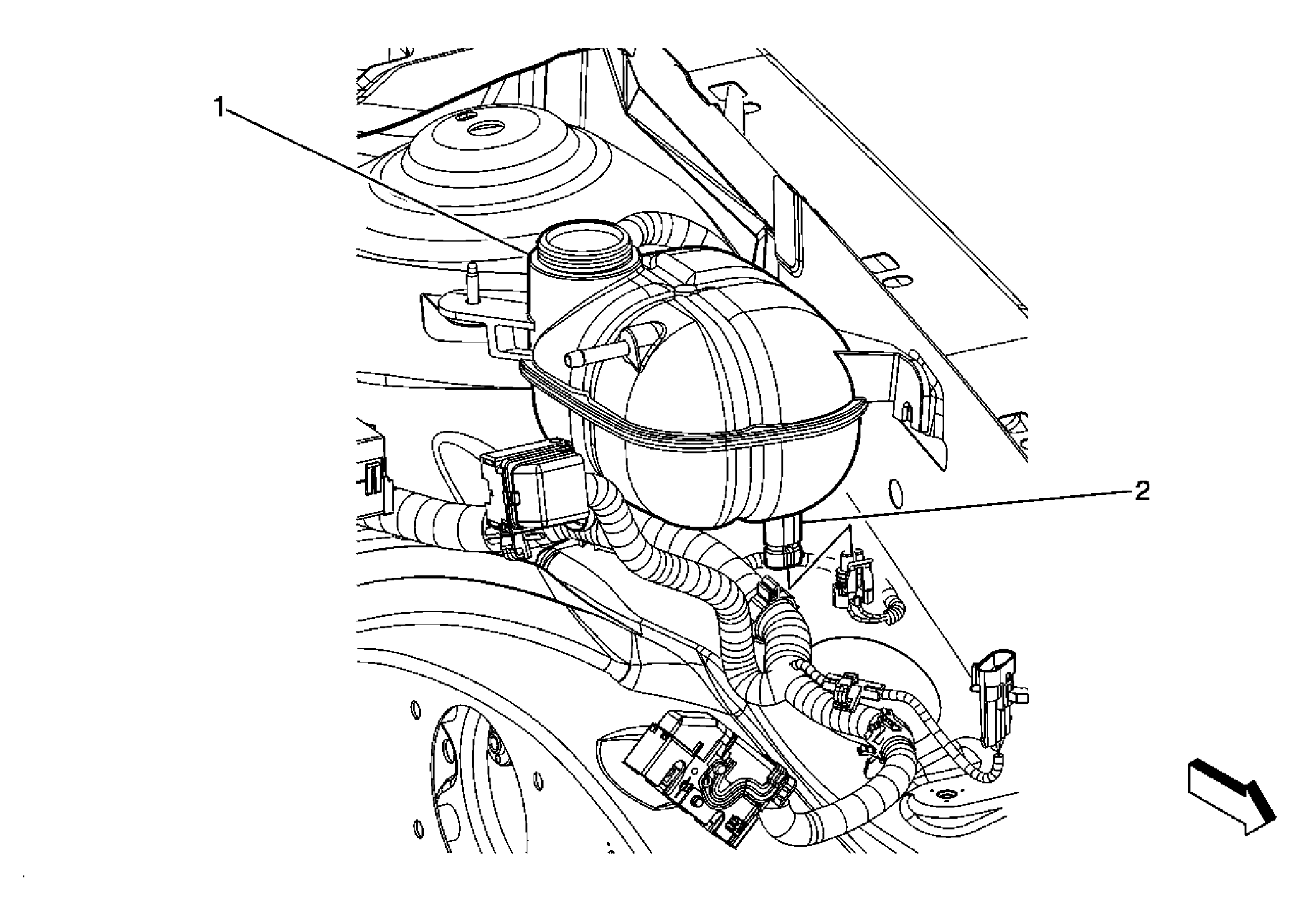

Fig 4: Left Rear of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator Surge Tank
2	Engine Coolant Level Switch (LNF)

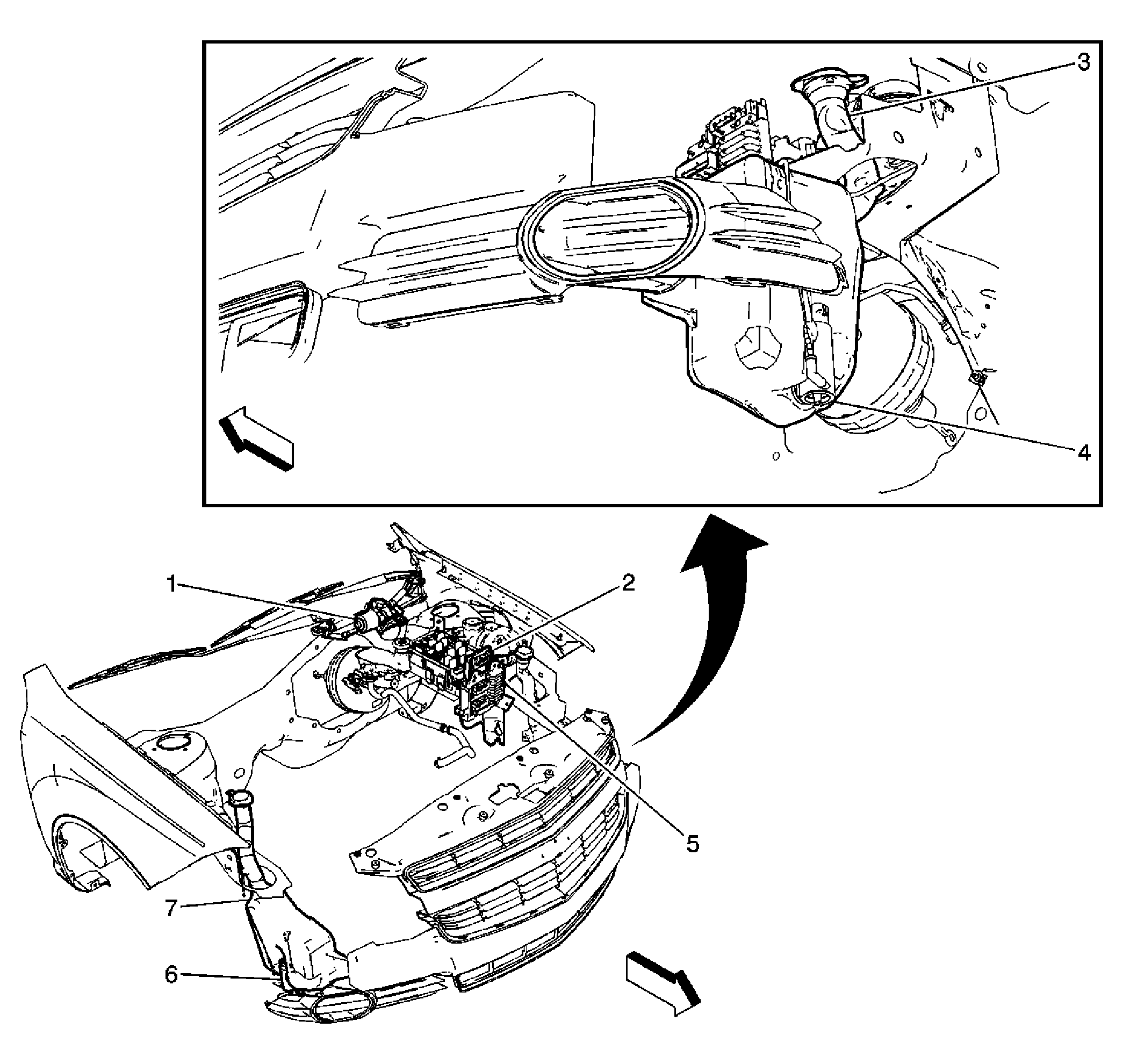

Fig 5: Front Engine Compartment (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor
2	Transmission Control Module (TCM) (MN5)
3	Windshield Washer Container (Sedan)
4	Windshield Washer Fluid Pump (Sedan)
5	Engine Control Module (ECM)
6	Windshield Washer Fluid Pump (Coupe)
7	Windshield Washer Container (Coupe)

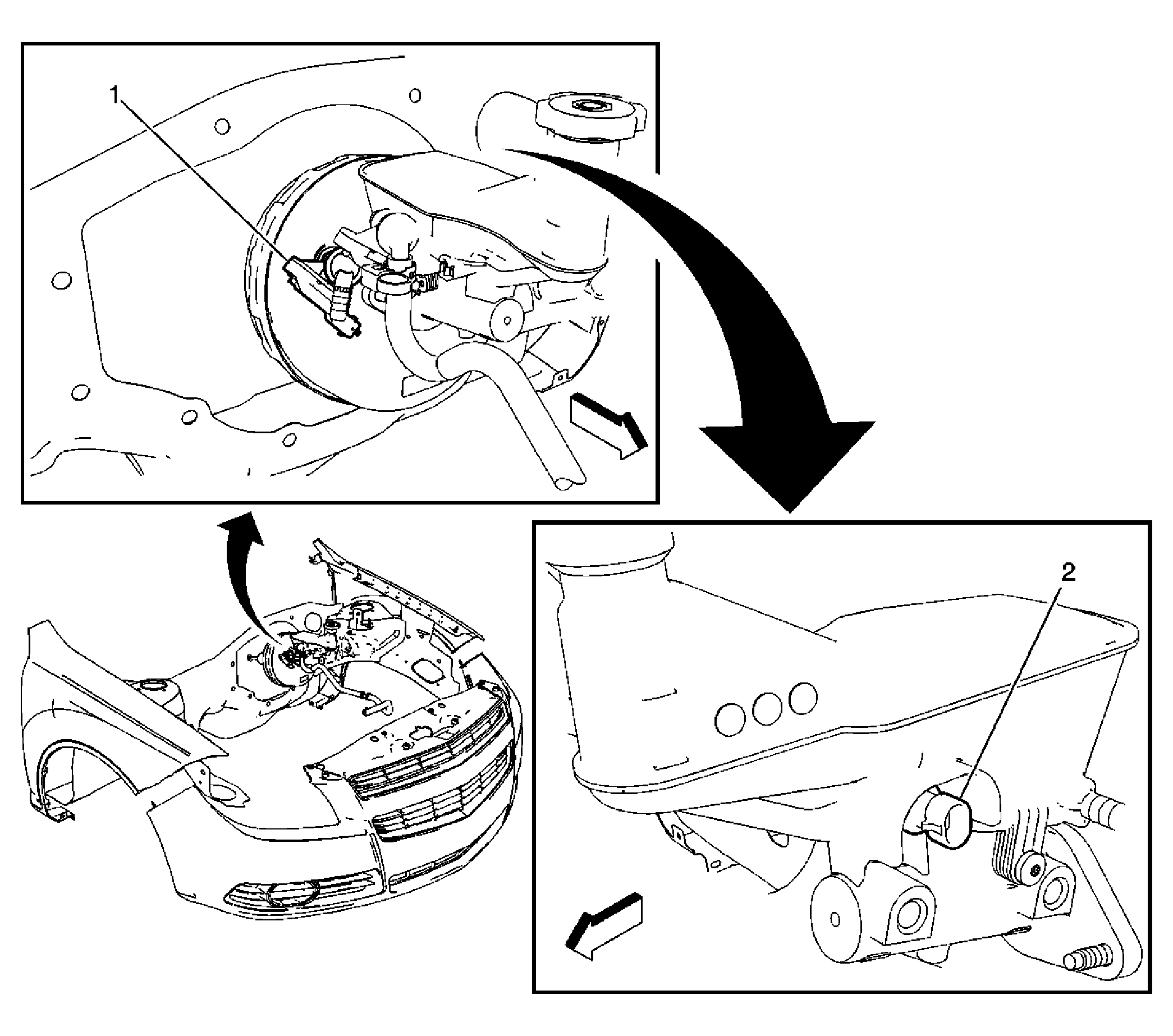

Fig 6: Front Engine Compartment (2 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Booster Vacuum Sensor (LNF)
2	Brake Fluid Level Switch

Fig 7: Left Rear of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Windshield Wiper Motor
3	Left Front Strut Tower
4	Fuse Block - Underhood

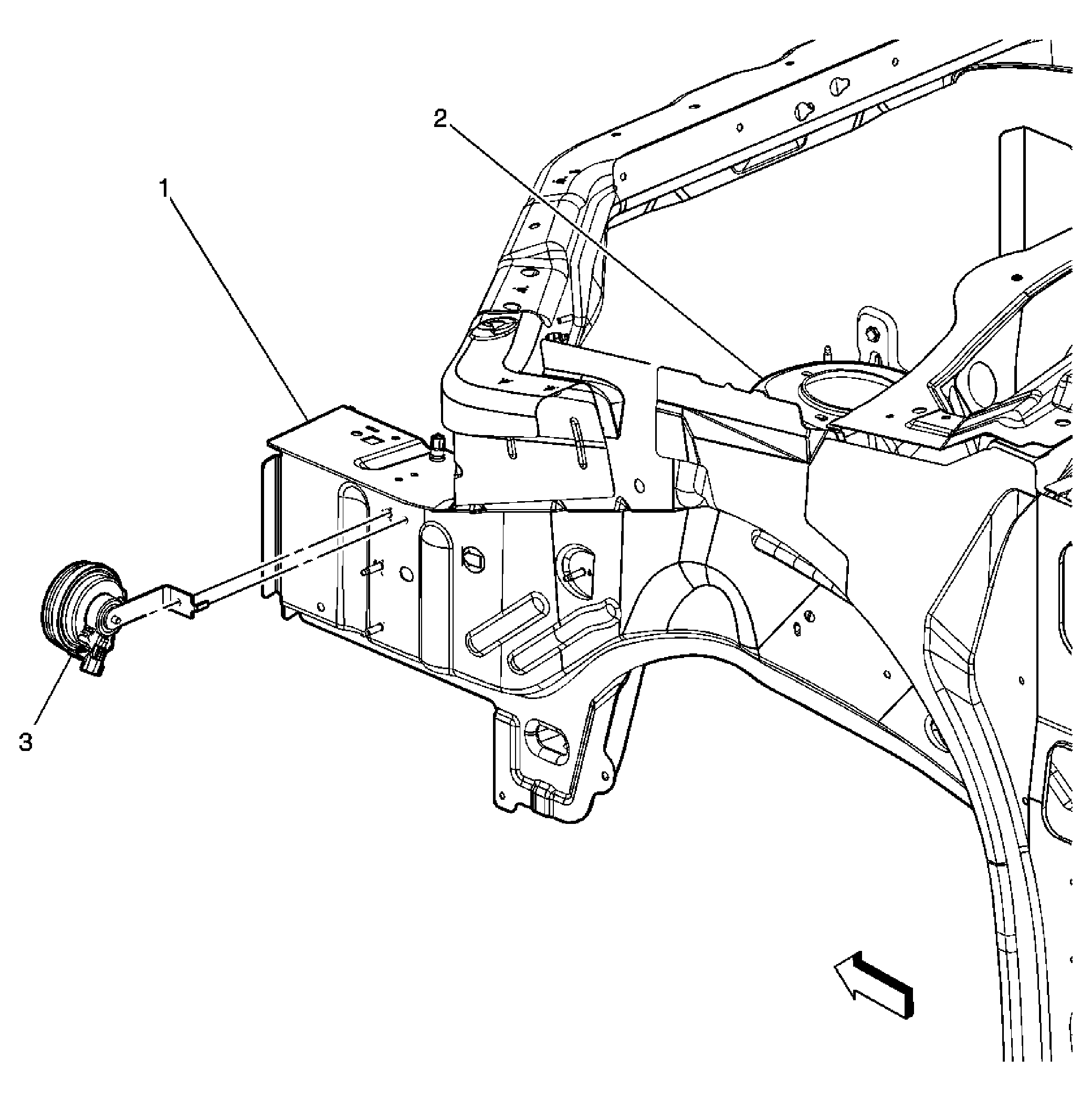

Fig 8: Horn Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Left Front Rail
2	Left Front Strut Tower
3	Horn

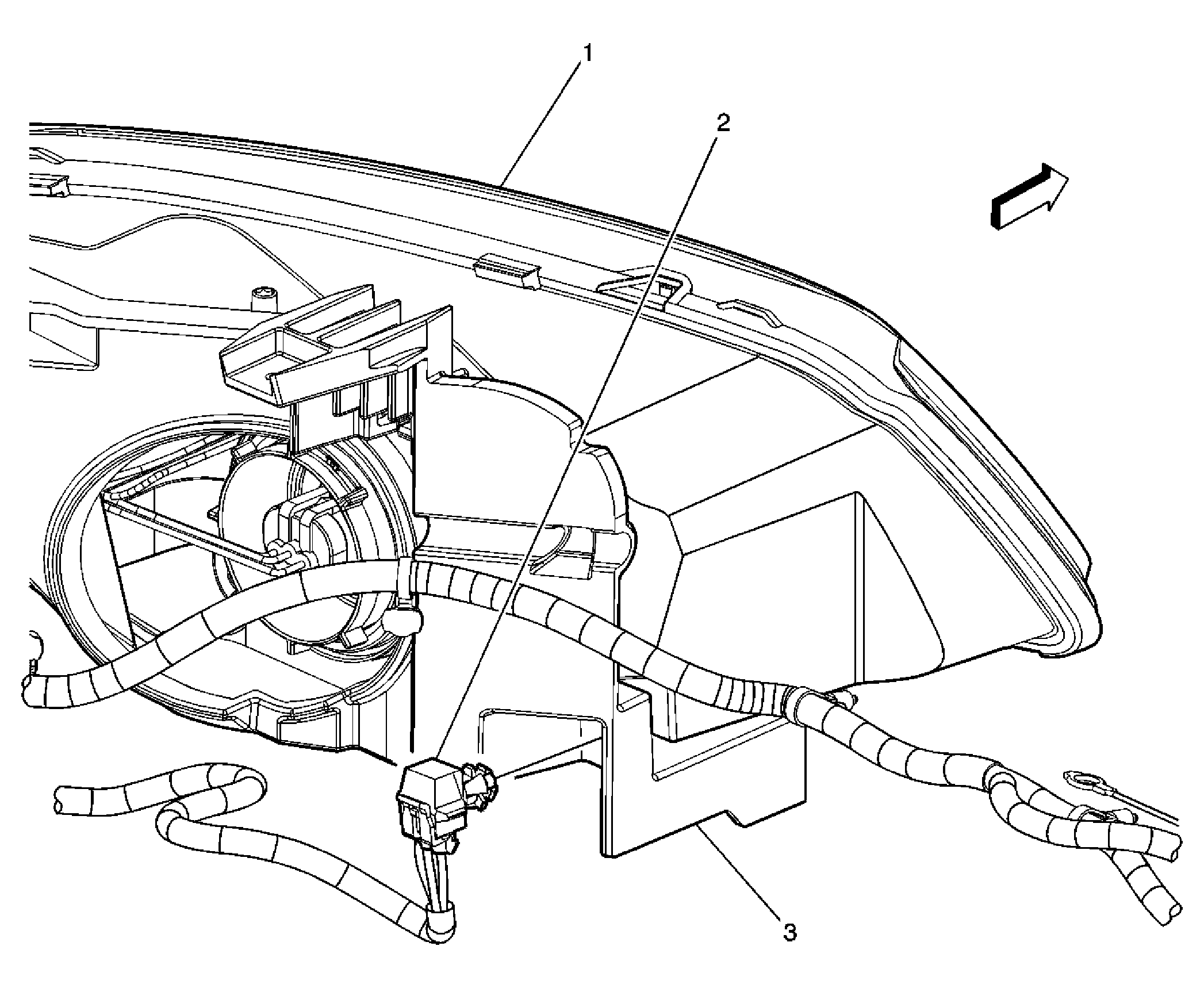

Fig 9: Left Front of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Left
2	Ambient Air Temperature Sensor
3	Headlamp Bracket

Fig 10: Front Center of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (AP3)
