Radio/Navigation System Schematics

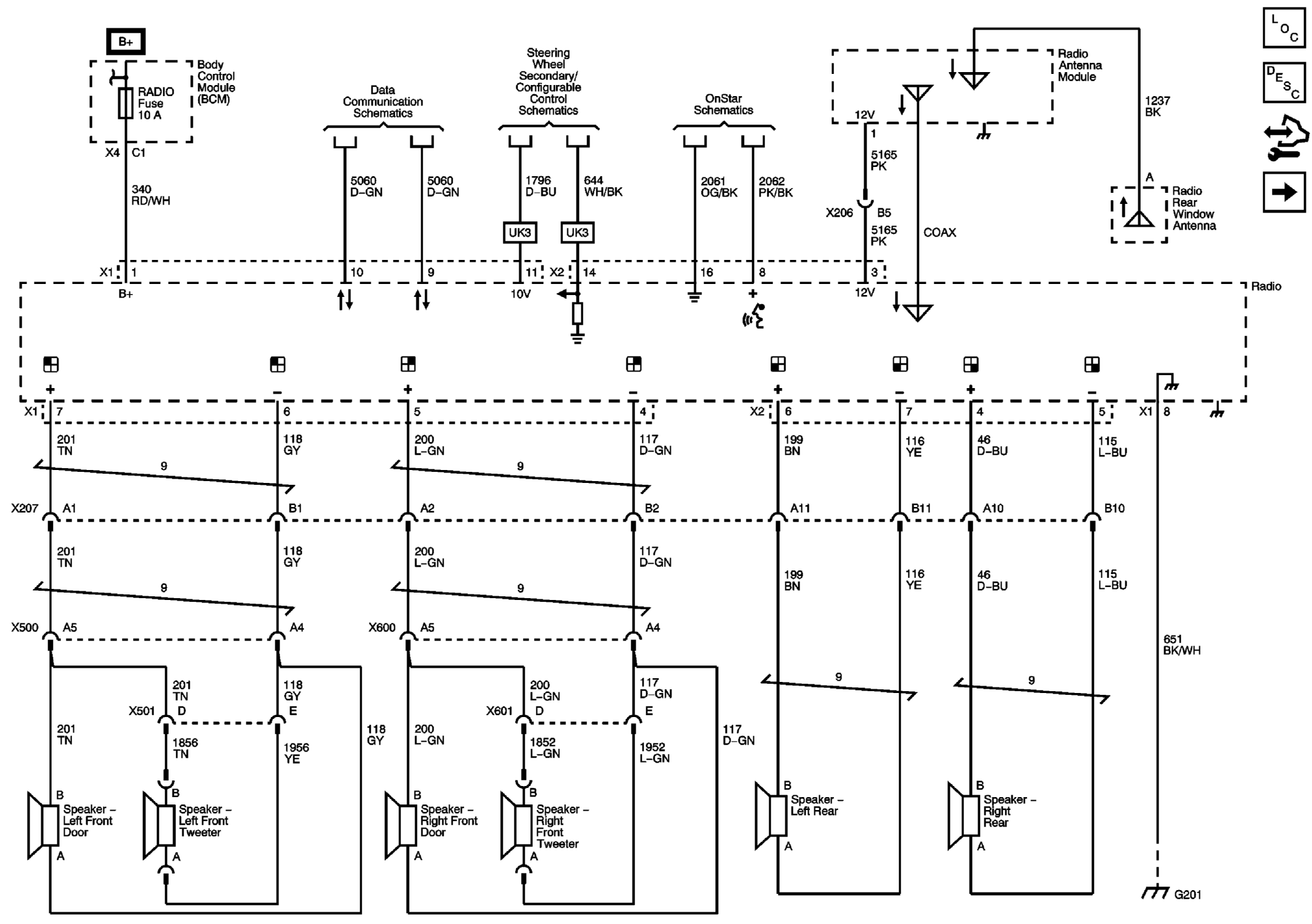

Fig 1: Digital Radio Receiver Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

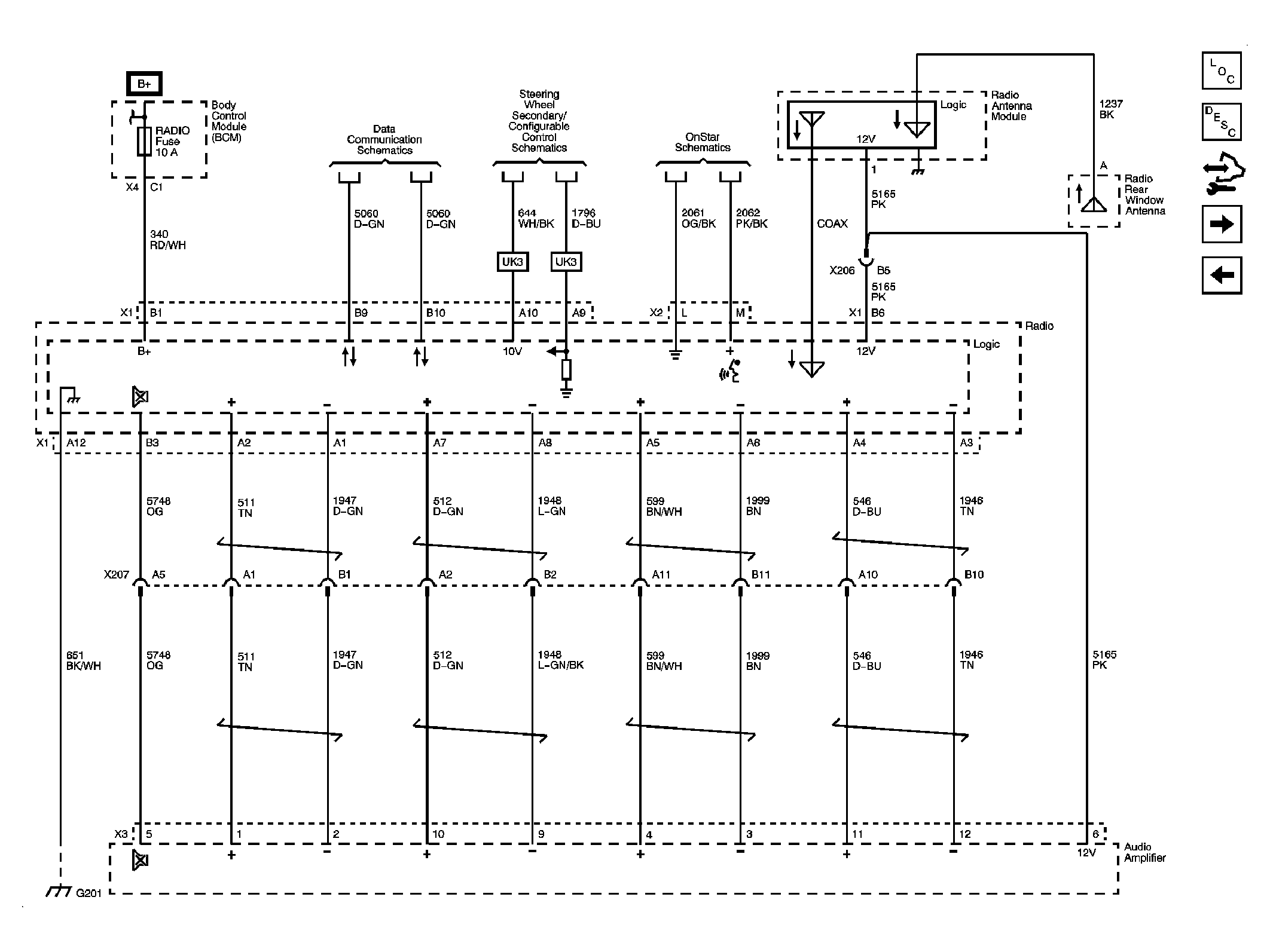

Fig 2: Radio Circuit Schematic (U85)

Courtesy of GENERAL MOTORS CORP.

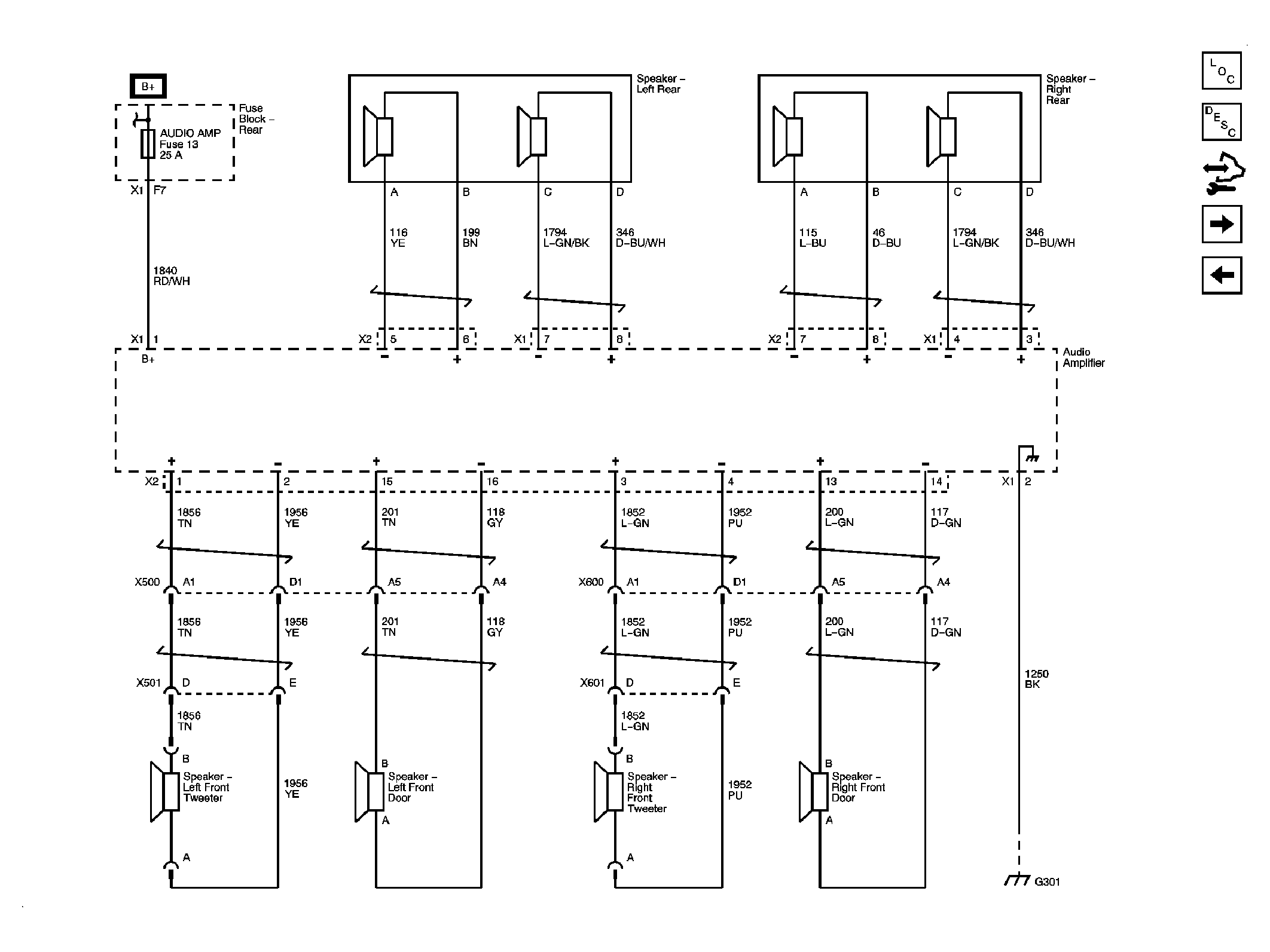

Fig 3: Radio Circuit Schematic (UZ6)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Radio Audio Signals Circuit Schematic (U85)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Redundant Radio Controls Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
