Air Cleaner Assembly Replacement

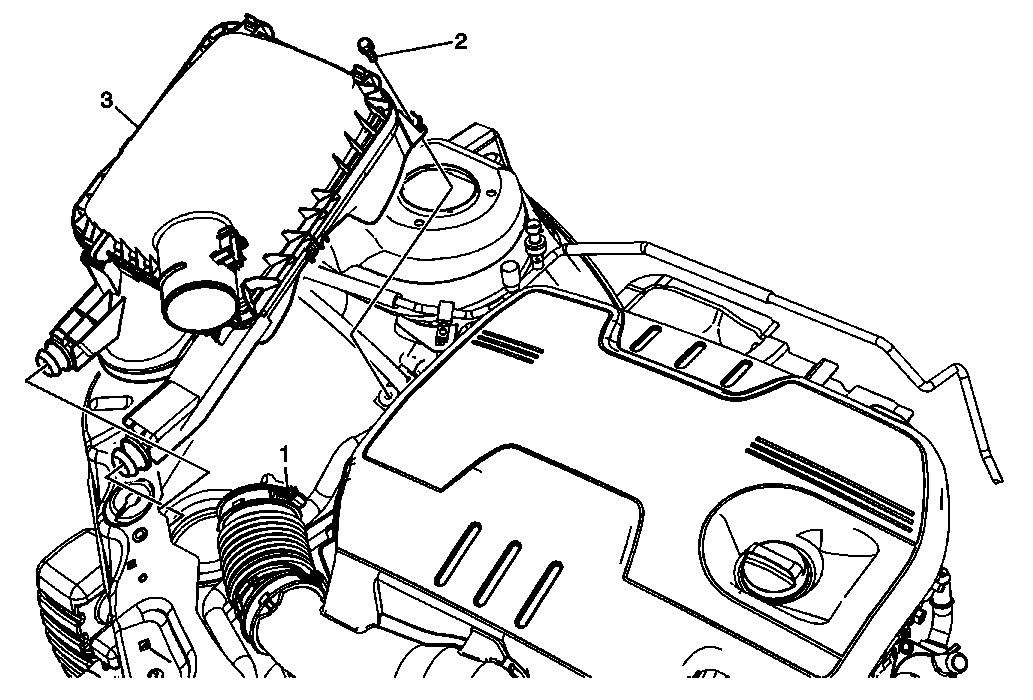

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the mass airflow (MAF) sensor. Refer to Mass Airflow Sensor with Intake Air Temperature Sensor Replacement . |
|
| 1 | Air Cleaner Outlet Duct Clamp
CAUTION:
Refer to Fastener Caution
. Procedure: Loosen the clamp in order to slide the duct off. Tighten: 4 N.m (35 lb in) |
| 2 | Air Cleaner Bolt Tighten: 10 N.m (89 lb in) |
| 3 | Air Cleaner Assembly Procedure: Reposition the air conditioning pipe as necessary. |
