Installation Procedure

    Fig 1: Air Cleaner Assembly Components
    GM1581066Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner filter into the lower air cleaner housing.
  2. Install the upper air cleaner cover to the lower air cleaner housing.
    3. CAUTION: Refer to Fastener Caution .
  3. Secure the air cleaner housing cover.

    Tighten:  Tighten the screws to 5 N.m (44 lb in).

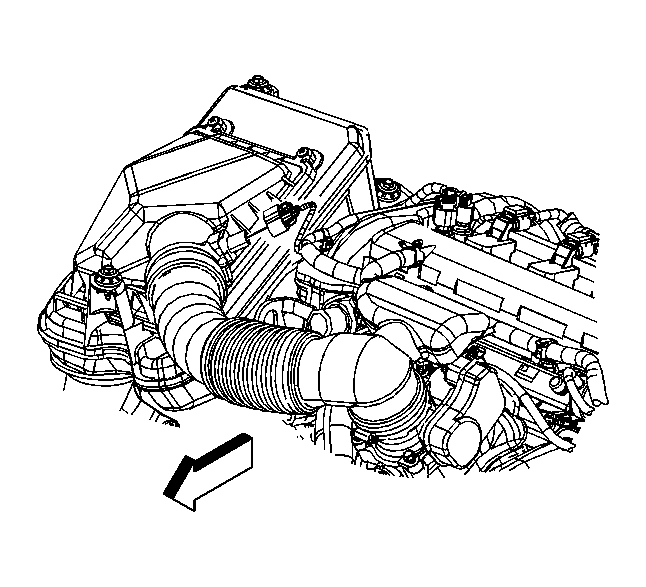

    4. Fig 2: MAF/IAT Sensor Electrical Connector
    GM1578457Courtesy of GENERAL MOTORS CORP.
  4. Connect the MAF/IAT sensor electrical connector connector.
