Installation Procedure

Fig 1: CKP Sensor & Bolt

Courtesy of GENERAL MOTORS CORP.

Lubricate the CKP sensor O-ring seal with clean engine oil.
Install the CKP sensor.
CAUTION: Refer to Fastener Caution .
Install the CKP sensor bolt.
Tighten: Tighten the sensor bolt to 10 N.m (89 lb in).

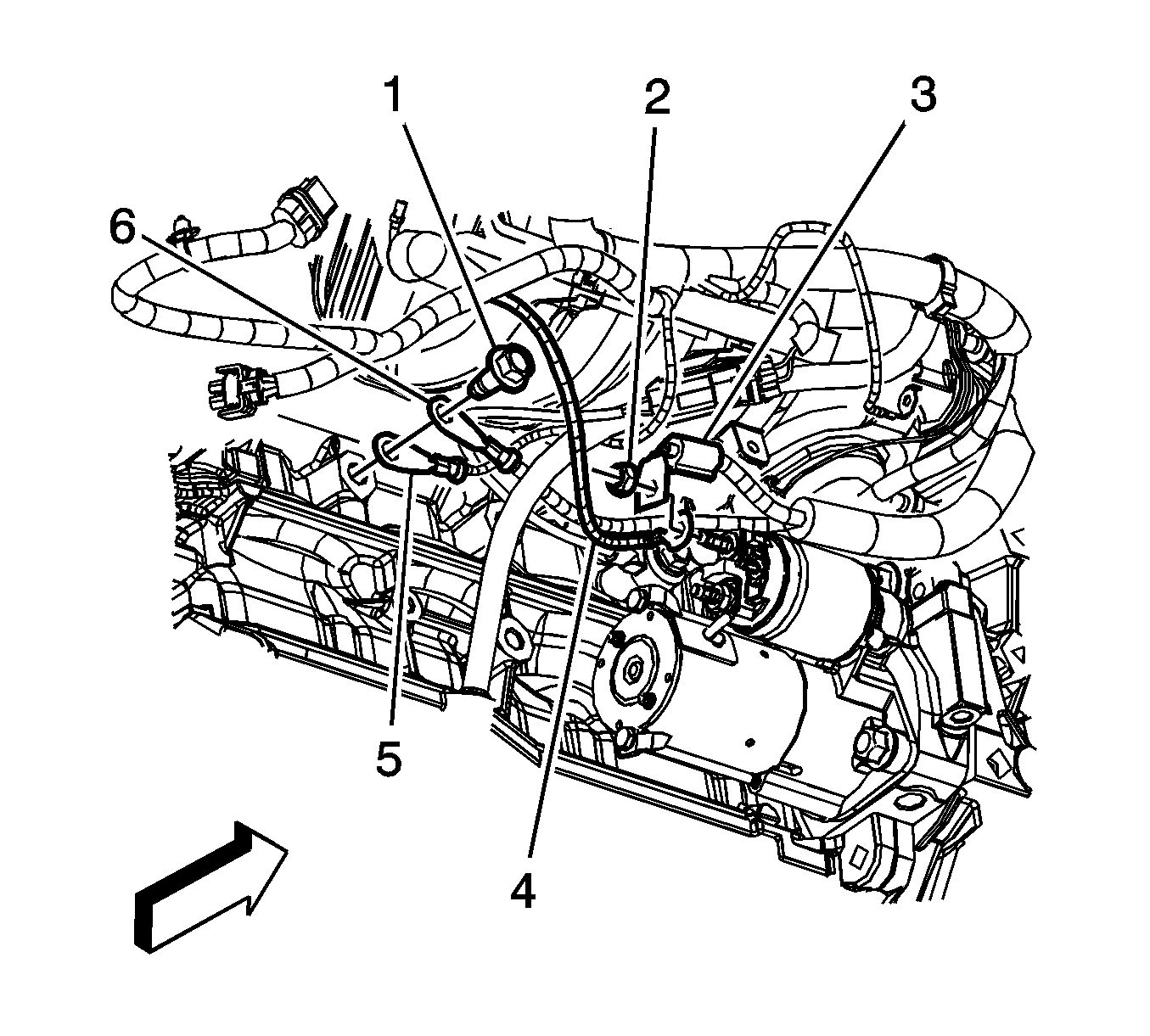

Fig 2: Battery Cables, Nuts, Bolts & Connectors

Courtesy of GENERAL MOTORS CORP.

NOTE: Ensure that the engine harness terminal (4) is still installed on the starter solenoid.

Install the positive battery cable (3) to the starter solenoid.
Install the positive battery cable nut (2) to the starter solenoid.
Tighten: Tighten the nut to 10 N.m (89 lb in).

Fig 3: Engine Oil Pressure Sensor, Knock Sensor & CKP Sensor Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Connect the CKP sensor electrical connector (3).
Install the oil level indicator tube. Refer to Oil Level Indicator Tube Replacement (LE5) .
