Body Control Module (BCM) X1

Ground Views

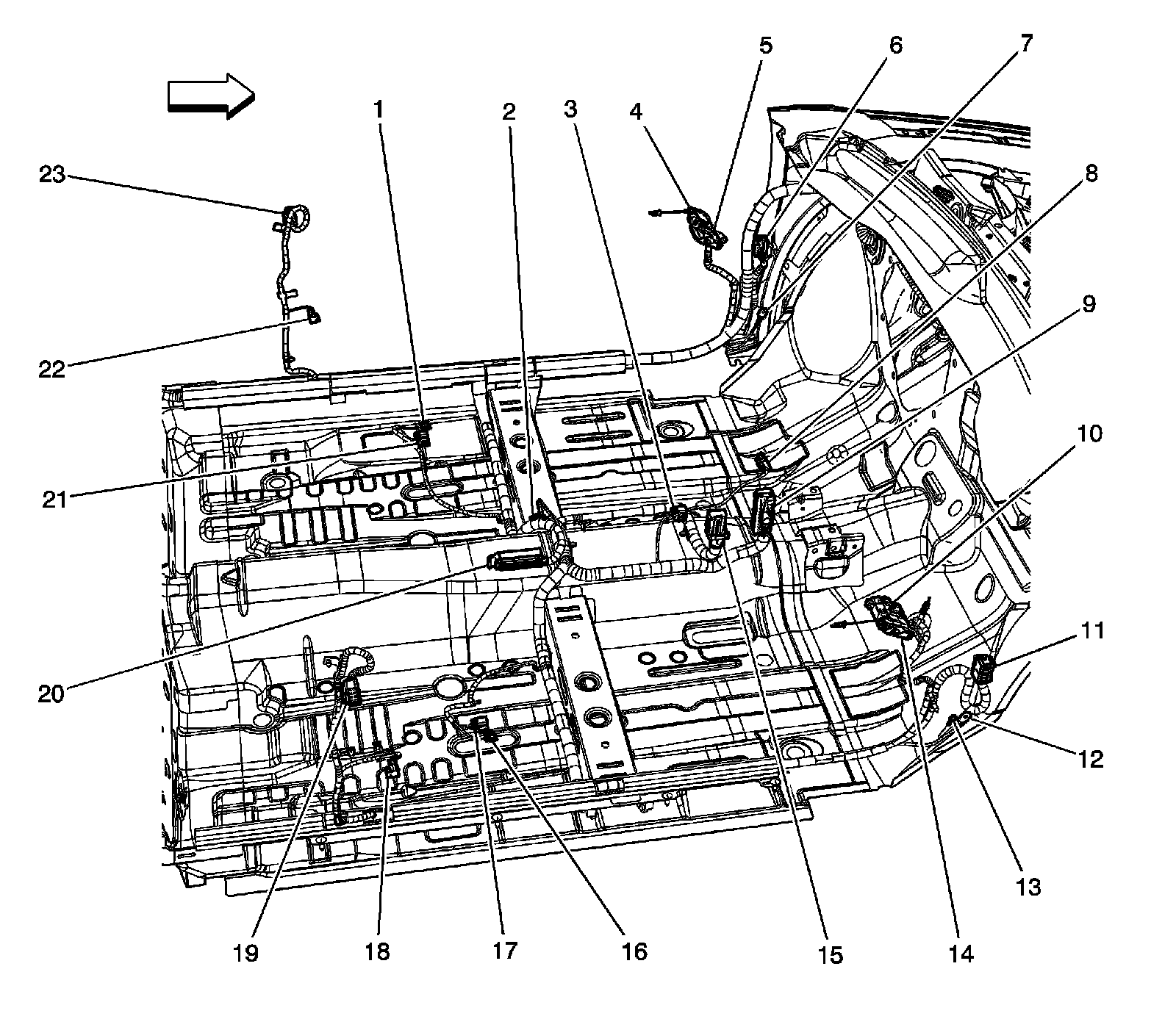

G303, G304, and G305 (Sedan)




1 - X308 (AJ7 or AY0)
2 - Park Brake Switch Connector
3 - X303
4 - X208
5 - X206
6 - X500
7 - G303
8 - X214
9 - Body Control Module (BCM) X3
10 - X216
11 - X600
12 - G305
13 - G304
14 - X207
15 - Body Control Module (BCM) X1
16 - X309 (AJ7 or AY0)
17 - X310
18 - Inflatable Restraint Seat Belt Pretensioner - Right Front Connector
19 - X800 (Sedan)
20 - Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector
21 - X300
22 - Inflatable Restraint Seat Belt Pretensioner - Left Front Connector
23 - X700 (Sedan)
