Heated Seat Control Module - Driver (KA1)

Passenger Compartment/Roof Component Views

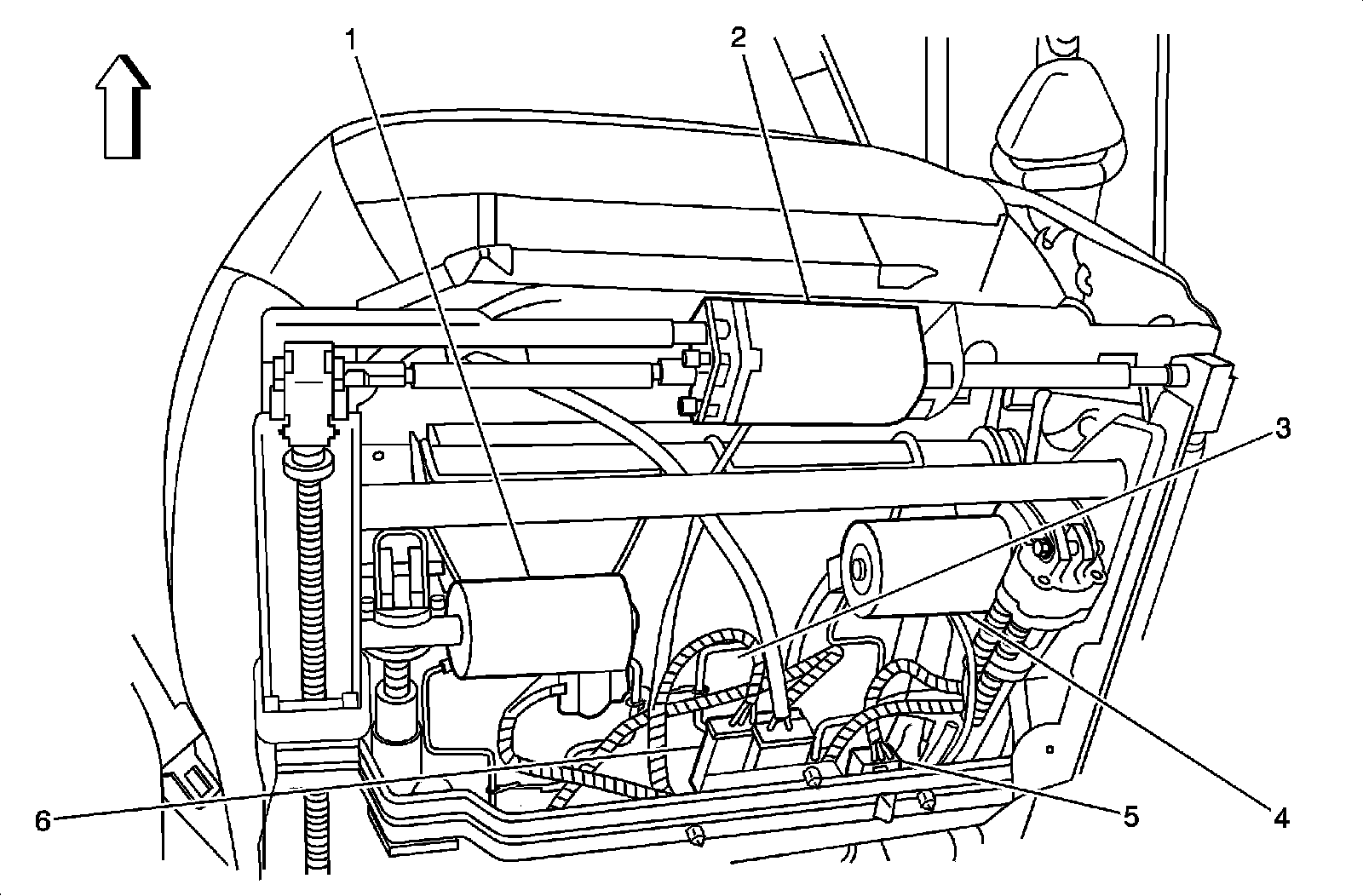

Under Driver Seat Components




1 - Seat Front Vertical Motor - Driver (AG1)
2 - Seat Horizontal Motor - Driver (AG1)
3 - Heated Seat Cushion Temperature Sensor - Driver (KA1)
4 - Seat Rear Vertical Motor - Driver (AG1)
5 - X300
6 - Heated Seat Control Module - Driver (KA1)
