Heated Seat Control Module - Passenger




Passenger Compartment/Roof Component Views

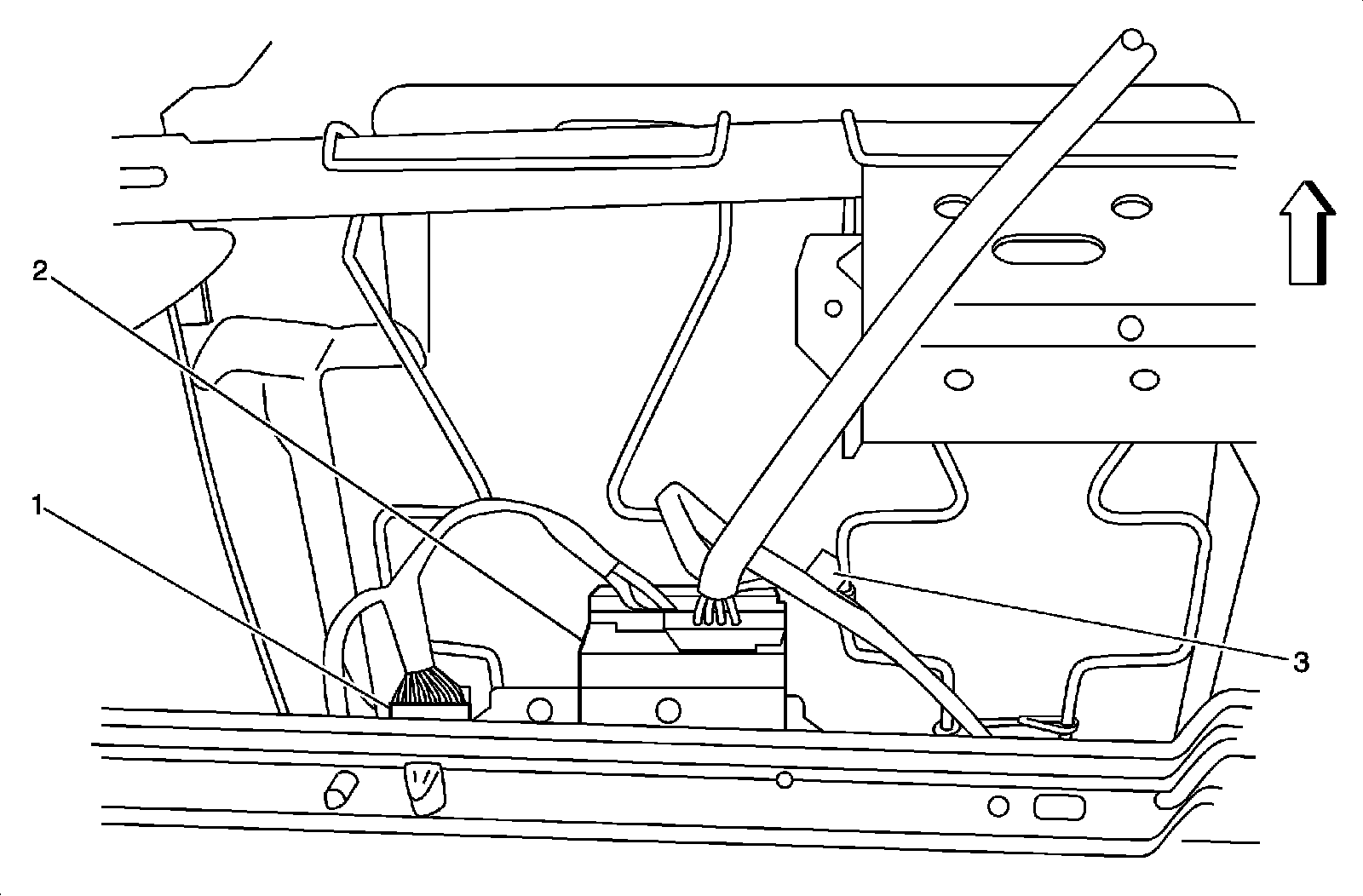

Under Front Passenger Seat Components (KA1)




1 - X310
2 - Heated Seat Control Module - Passenger
3 - Heated Seat Cushion Temperature Sensor - Passenger
