Component Locations

Ground Views

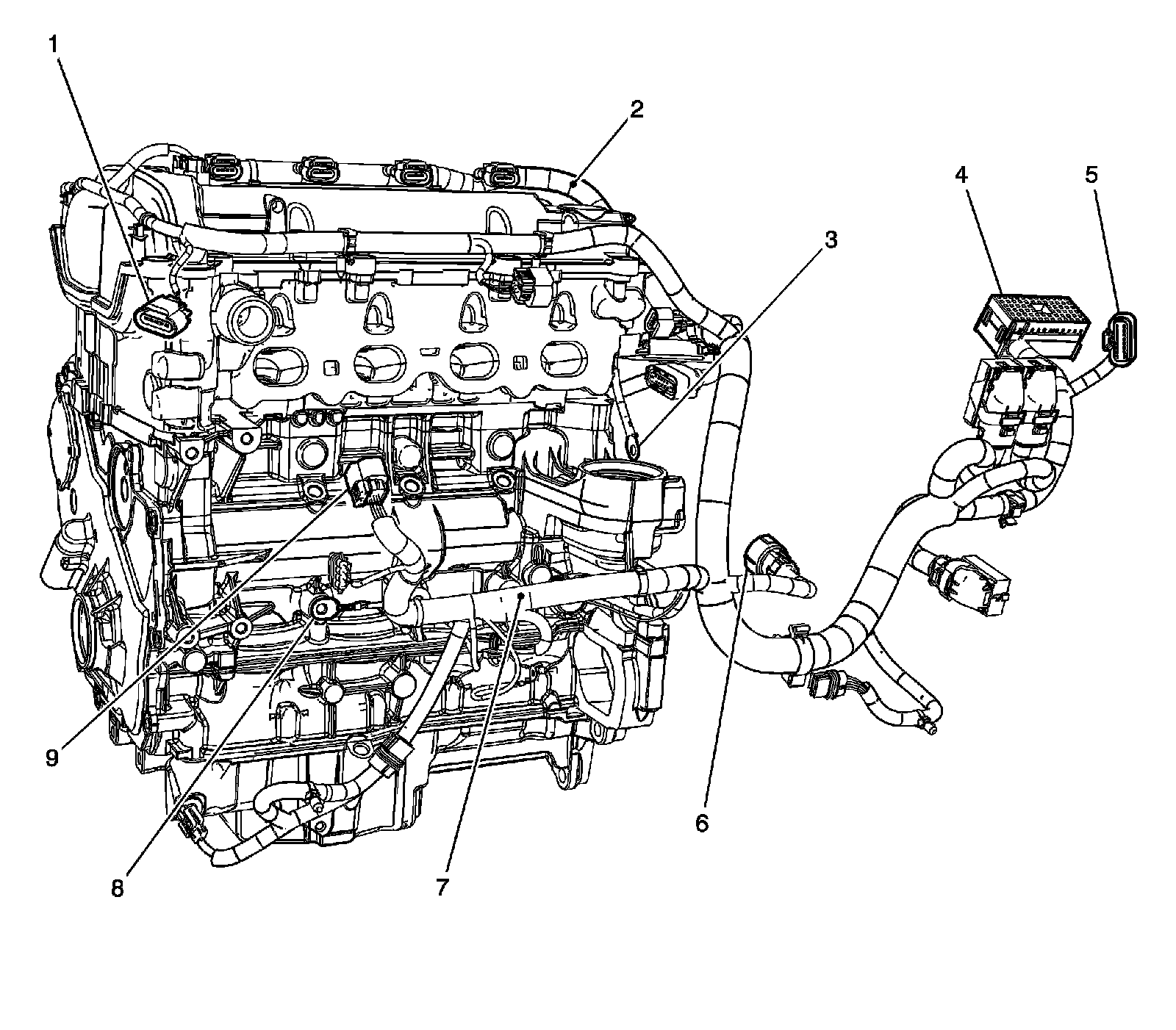

G105 and G106 (LE5)




1 - Mass Air Flow (MAF) / Intake Air Temperature (IAT) Sensor Connector
2 - J101
3 - G105
4 - Fuse Block - Underhood X1
5 - X108
6 - X100 (MN5)
7 - J118
8 - G106
9 - X130
