Traction Control Module: Locations

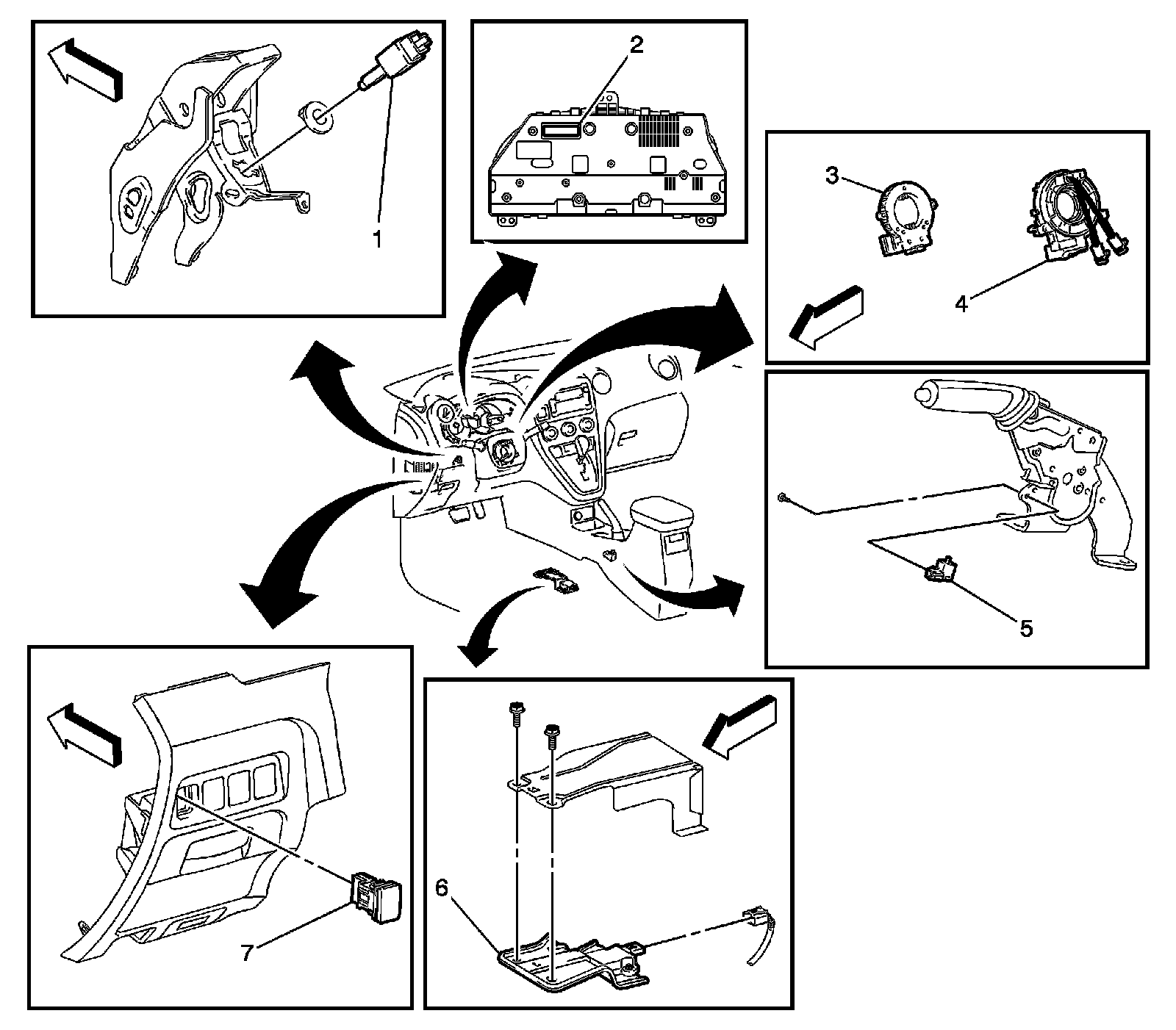

Instrument Panel/Center Console Component Views

Brake Control Components




1 - Stop Lamp Switch
2 - Instrument Panel Cluster (IPC)
3 - Steering Angle Sensor
4 - Inflatable Restraint Steering Wheel Module Coil
5 - Parking Brake Switch
6 - Yaw Rate and Lateral Accelerometer Sensor
7 - Vehicle Stability Control Module
