HVAC Control Module X1, X2




Component Connector End Views

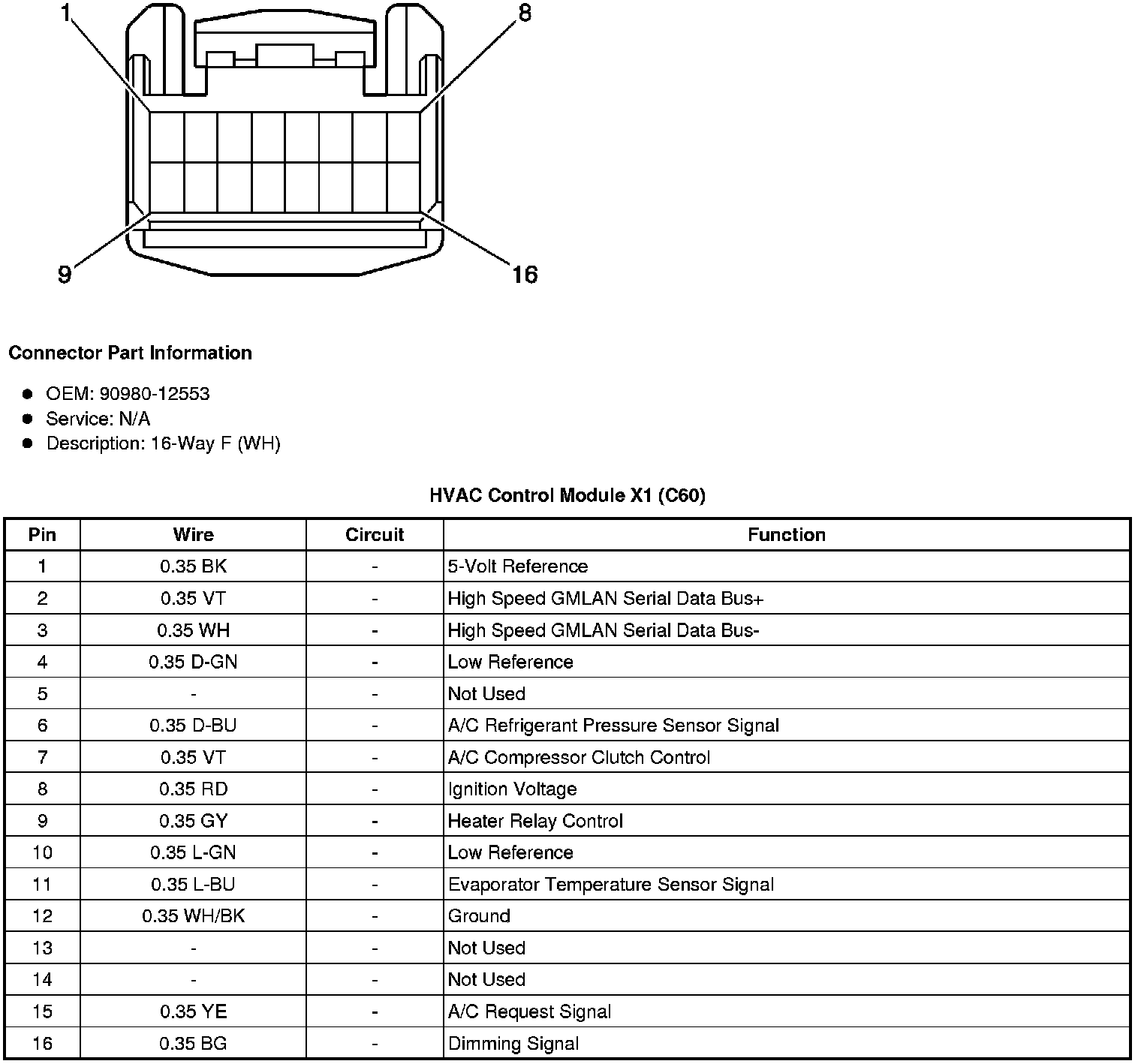

HVAC Control Module X1 (C60)

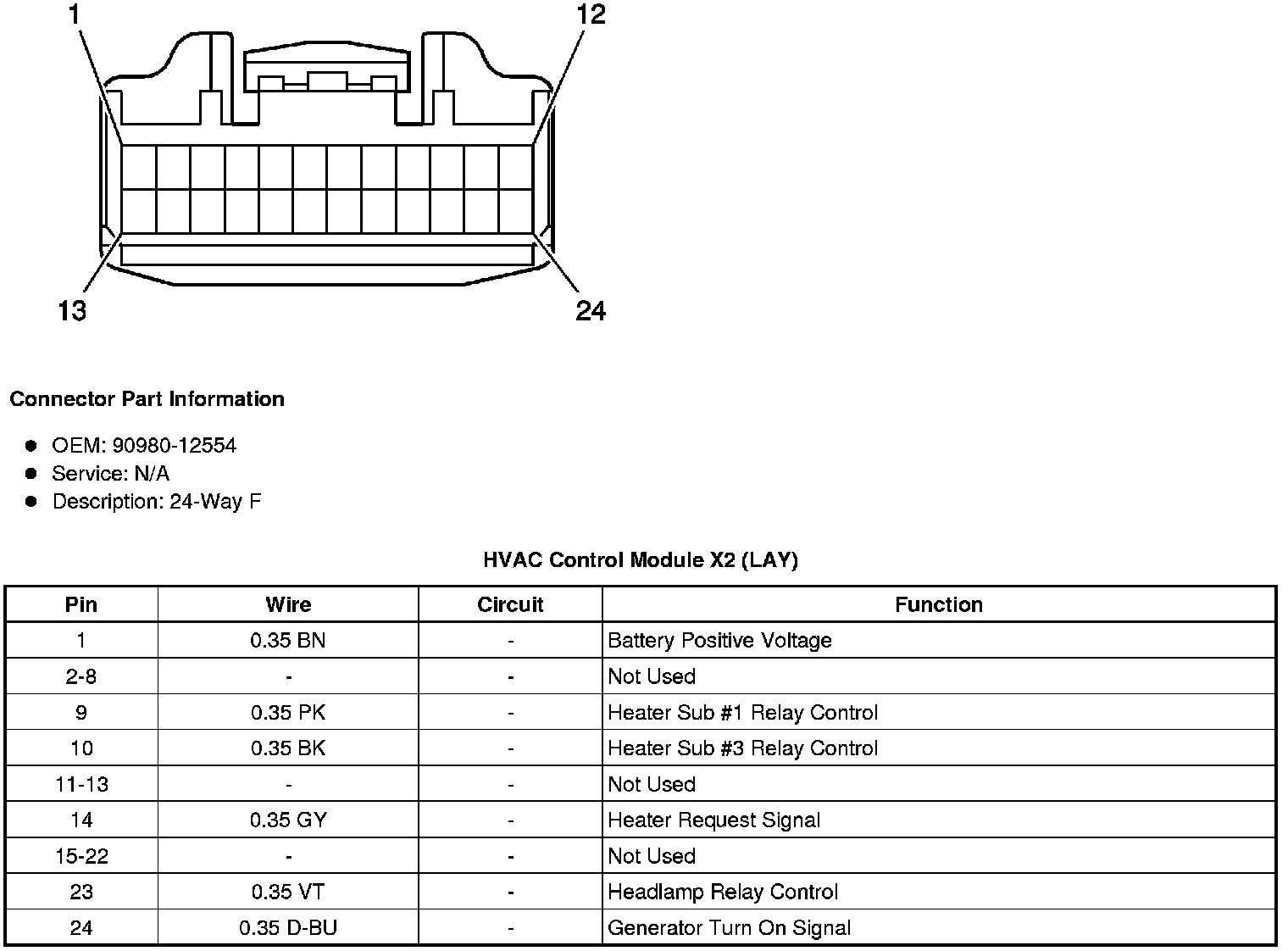

HVAC Control Module X2 (LAY)
