Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor Replacement

Removal Procedure

1. Remove the right engine under cover.
2. Disconnect the crank position sensor connector.

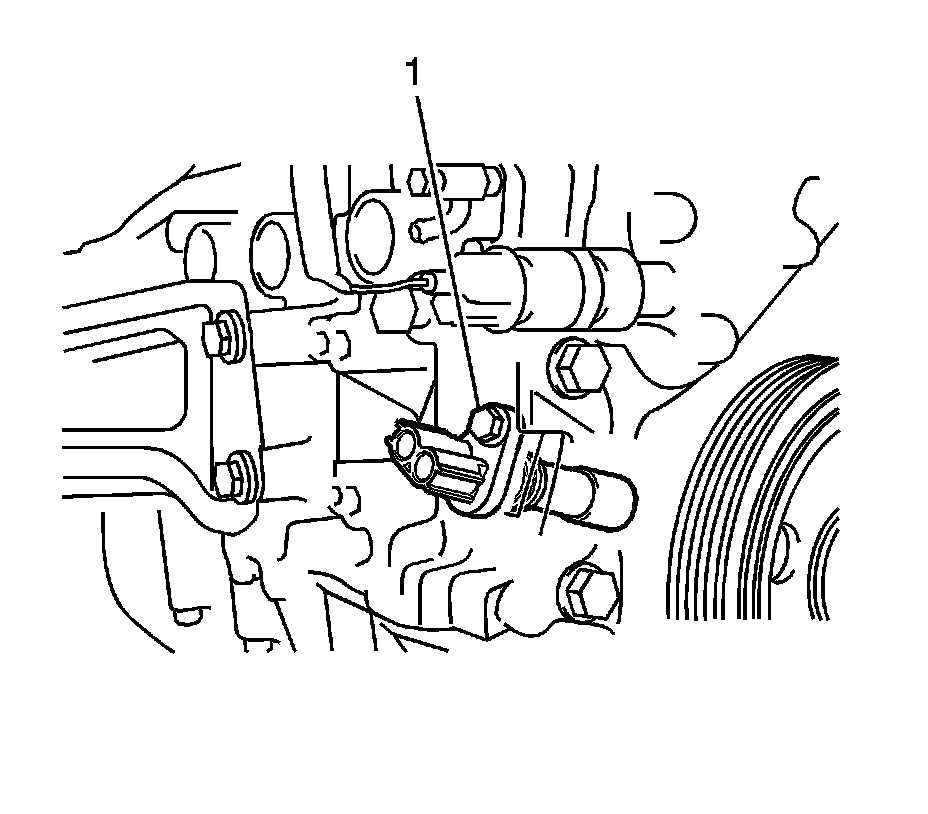

3. Remove the bolt (1) and crank position sensor.

Installation Procedure




1. Apply a light coat of engine oil to the O-ring (1) on the crank position sensor.





Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the crank position sensor with the bolt (1) and tighten to 9.0 Nm (80 lb in).
3. Connect the crank position sensor connector.
4. Inspect for an oil leak.
5. Install the right engine under cover.
