Installation Procedure

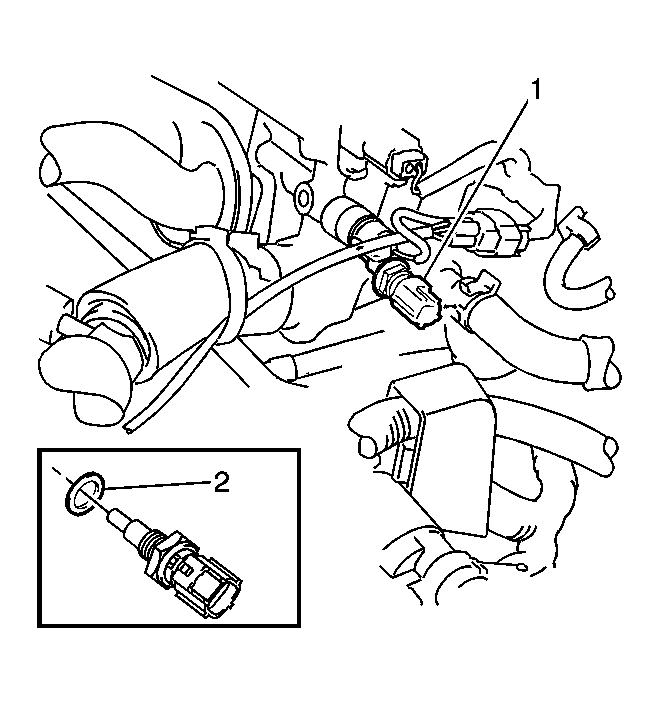

    Fig 1: Exploded View Of Engine Coolant Temperature Sensor & Gasket
    GM2016558Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the engine coolant temperature sensor (1) through a new gasket (2) and tighten to 20 N.m (14 lb ft).

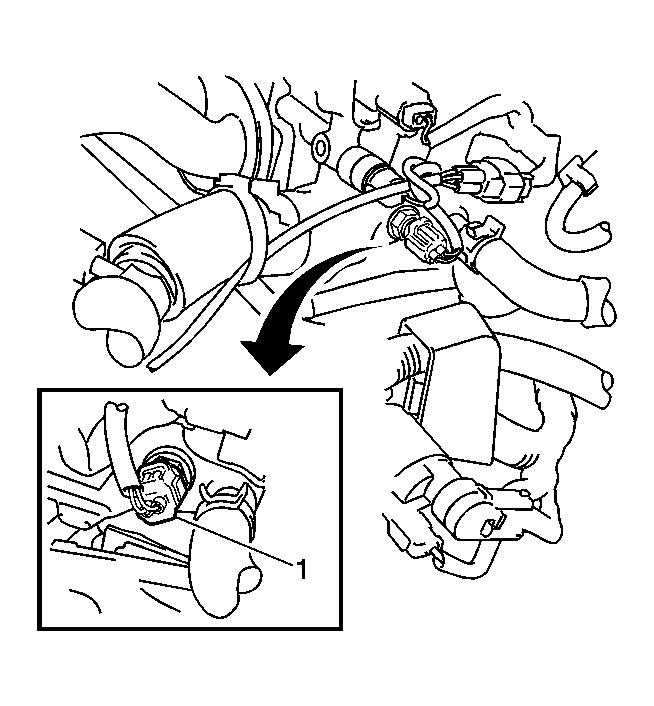

    2. Fig 2: Exploded View Of Engine Coolant Temperature Sensor Connector
    GM2016551Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine coolant temperature sensor connector (1).
  3. Install the air cleaner case.
  4. Install the air cleaner cap with hose.
  5. Add engine coolant. Refer to Cooling System Draining and Filling .
  6. Inspect for coolant leak.
  7. Install the engine cover. Refer to Engine Cover Replacement .
