Removal Procedure

    WARNING: Refer to Battery Disconnect Warning .
  1. Disconnect cable from battery negative terminal. Refer to Battery Negative Cable Disconnection and Connection
  2. Remove the engine cover sub-assembly. Refer to Engine Cover Replacement
  3. Remove the air cleaner cap sub-assembly with hose.
  4. Remove the air cleaner case.

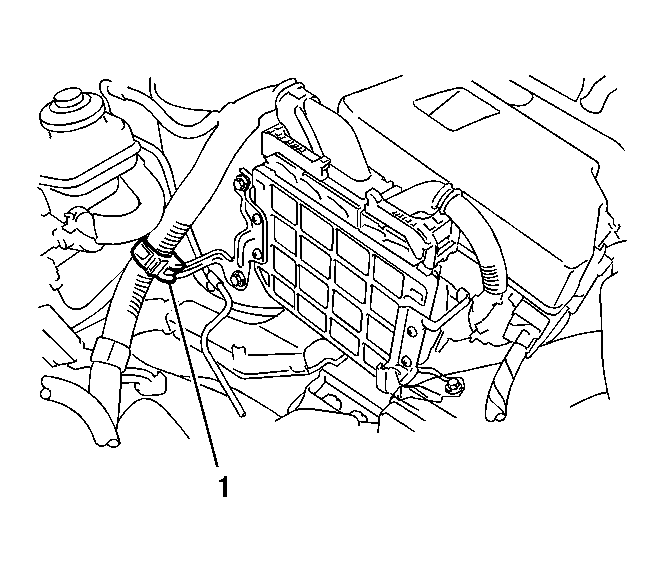

    5. Fig 1: Identifying Wire Harness Clamp
    GM2016504Courtesy of GENERAL MOTORS CORP.
  5. Separate the wire harness clamp (1).
    6. Fig 2: Disconnecting ECM Connectors
    GM2016508Courtesy of GENERAL MOTORS CORP.
  6. Push the locks on the 2 levers (1, 2), then raise the levers, and disconnect the 2 ECM connectors.
    7. Fig 3: Identifying Bolts & ECM
    GM2016509Courtesy of GENERAL MOTORS CORP.
  7. Remove the 3 bolts (1, 2, 3) and the ECM.
    8. Fig 4: View Of Screws & ECM Brackets
    GM2016512Courtesy of GENERAL MOTORS CORP.
  8. Remove the 4 screws (1, 2, 3, 4) and the 2 ECM brackets.
