Installation Procedure

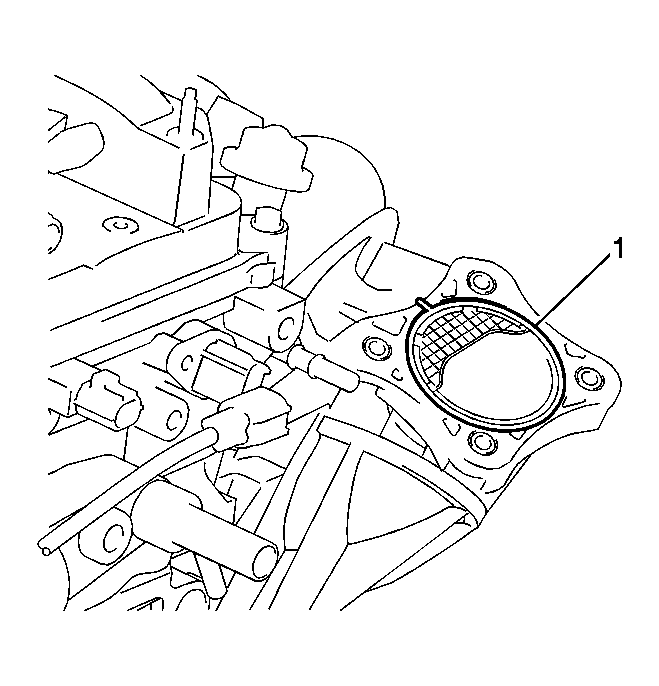

    Fig 1: View Of Gasket & Intake Manifold
    GM2016503Courtesy of GENERAL MOTORS CORP.
  1. Install a new gasket (1) onto the intake manifold.

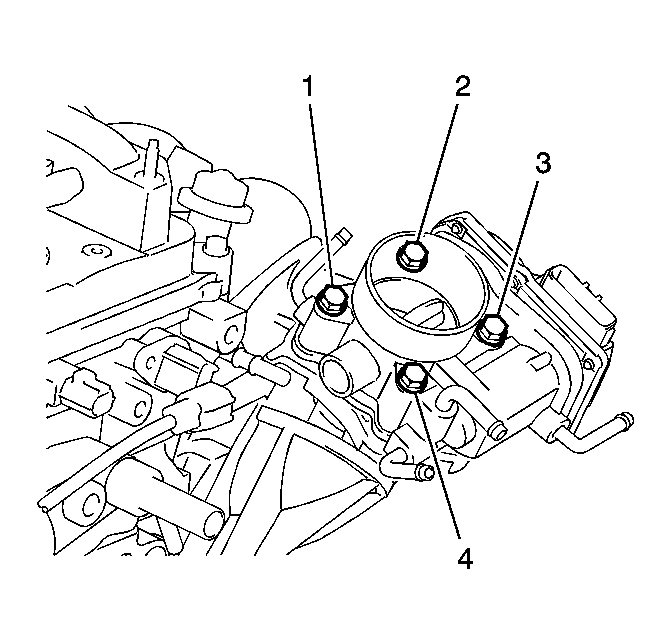

    2. Fig 2: Identifying Throttle Body Assembly Bolts
    GM2016502Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the throttle body assembly with the 4 bolts (1, 2, 3, 4) and tighten to 30 N.m (22 lb ft)
    3. Fig 3: Identifying Throttle Body Hose
    GM2016501Courtesy of GENERAL MOTORS CORP.
  3. Connect the throttle body hose (1).

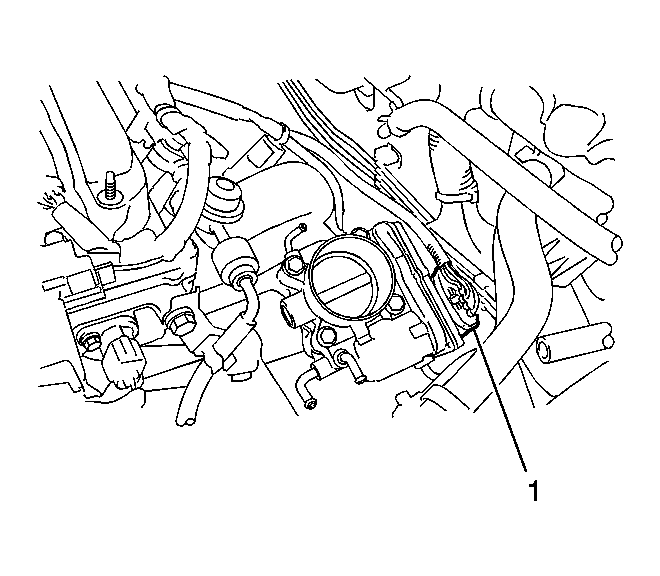

    4. Fig 4: Locating Throttle Body Assembly Connector
    GM2016499Courtesy of GENERAL MOTORS CORP.
  4. Connect the throttle body connector (1).
    5. Fig 5: Identifying Water By-Pass Hose Clamps
    GM2016498Courtesy of GENERAL MOTORS CORP.
  5. Connect the 2 water by-pass hoses (1, 2).
    6. Fig 6: View Of Air Cleaner Hose Clamp, Assembly Clamps & Cap Sub-Assembly With Hose
    GM2016496Courtesy of GENERAL MOTORS CORP.
  6. Install the air cleaner cap with hose.
  7. Install the air cleaner cap sub-assembly with hose and lock the 3 clamps (2, 3, 4).
  8. Tighten the air cleaner hose clamp (1).
    9. Fig 7: Locating Hose Clamp & Ventilation Hose
    GM2016495Courtesy of GENERAL MOTORS CORP.
  9. Connect the ventilation hose (1).

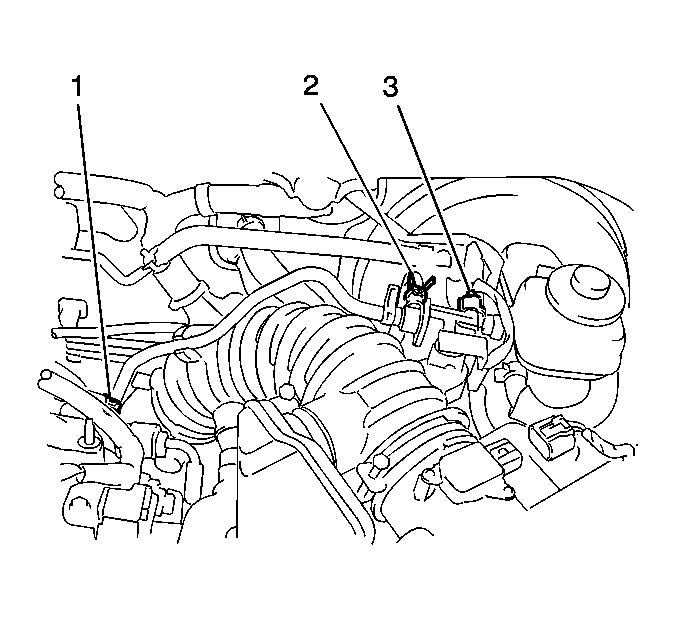

    10. Fig 8: Locating Vacuum Switching Valve Connector, Hose Clamps & Vacuum Hose
    GM2016494Courtesy of GENERAL MOTORS CORP.
  10. Connect the 2 vacuum hoses (1, 3) and the vacuum switching valve connector (2).
    11. Fig 9: Identifying Air Flow Meter Connector & Wire Harness Clamps
    GM2016492Courtesy of GENERAL MOTORS CORP.
  11. Connect the 2 wire harness clamps (2, 3) and the mass air flow meter connector (1).
  12. Add engine coolant. Refer to Engine Cover Replacement
  13. Inspect for coolant leak.
  14. Install the engine cover. Refer to Engine Cover Replacement
