Control Assembly: Service and Repair

Removing and Installing Control Switch

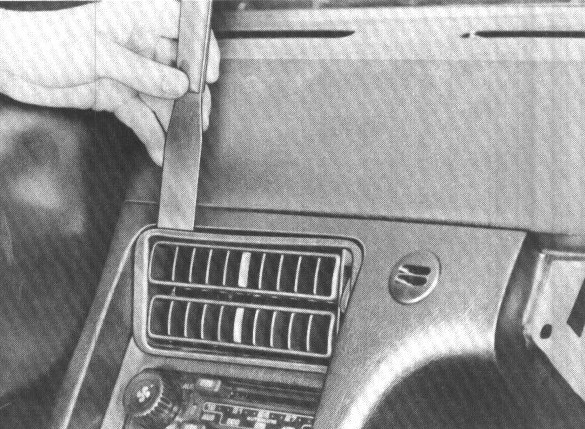

1. Press out center nozzle with a putty knife.

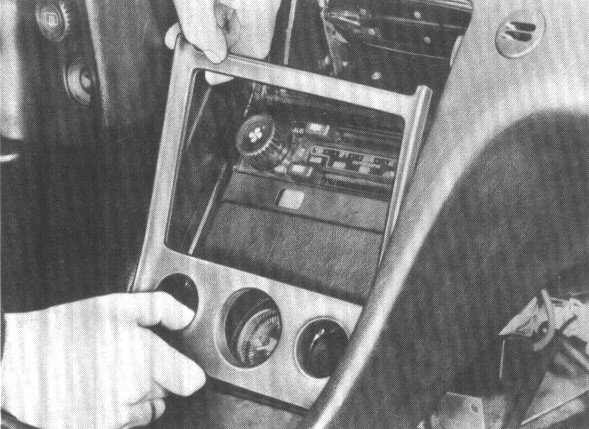

2. Pull off cover frame starting at top.

3. Loosen and remove control board (wires can remain connected).

4. Loosen and pull out control switch. Pull off plugs.
