Grounds

GROUND POINTS ON CAR

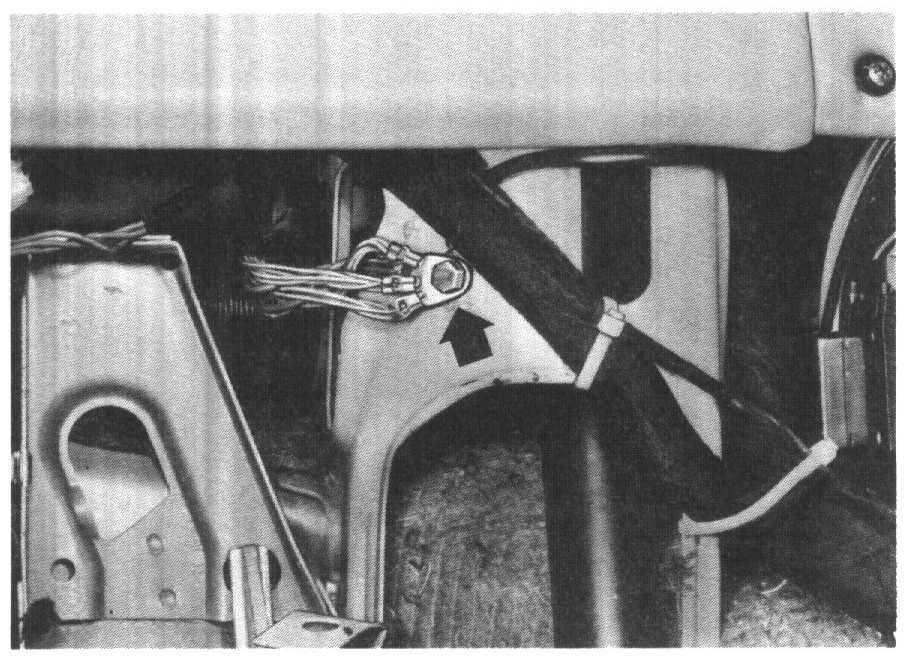

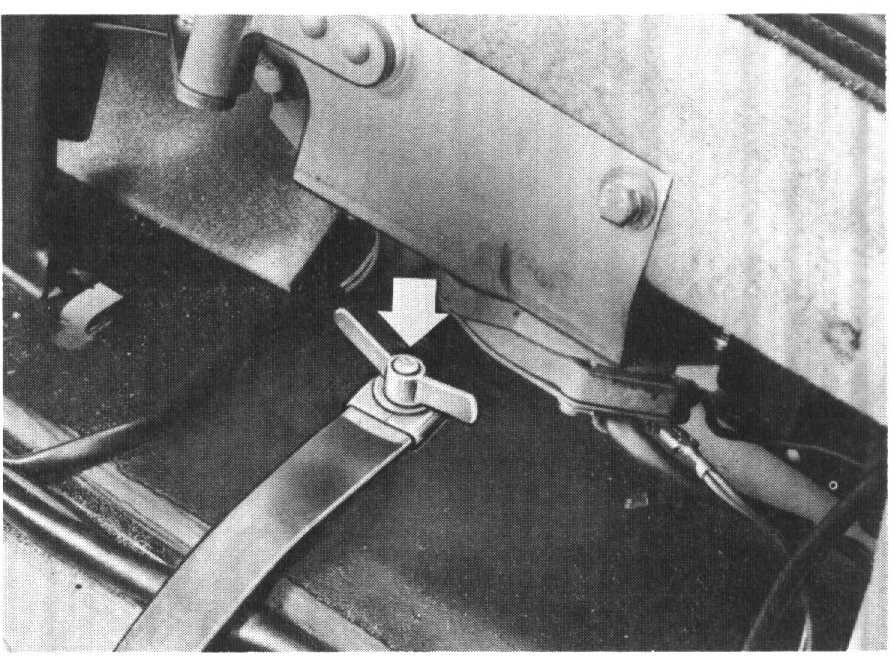

1. Battery negative pole to body in trunk at rear left.

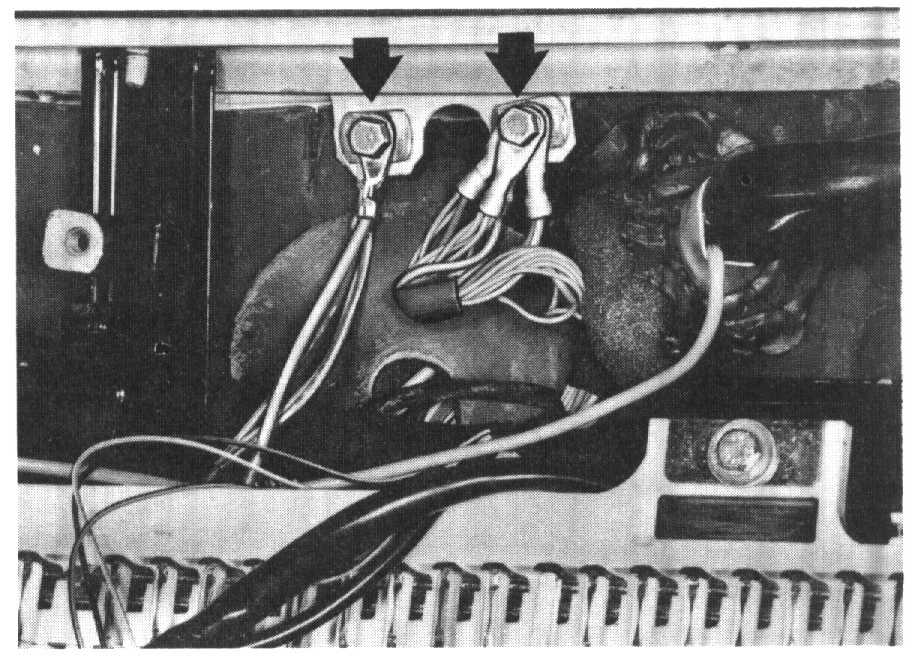

2. Ground points above central electric board.

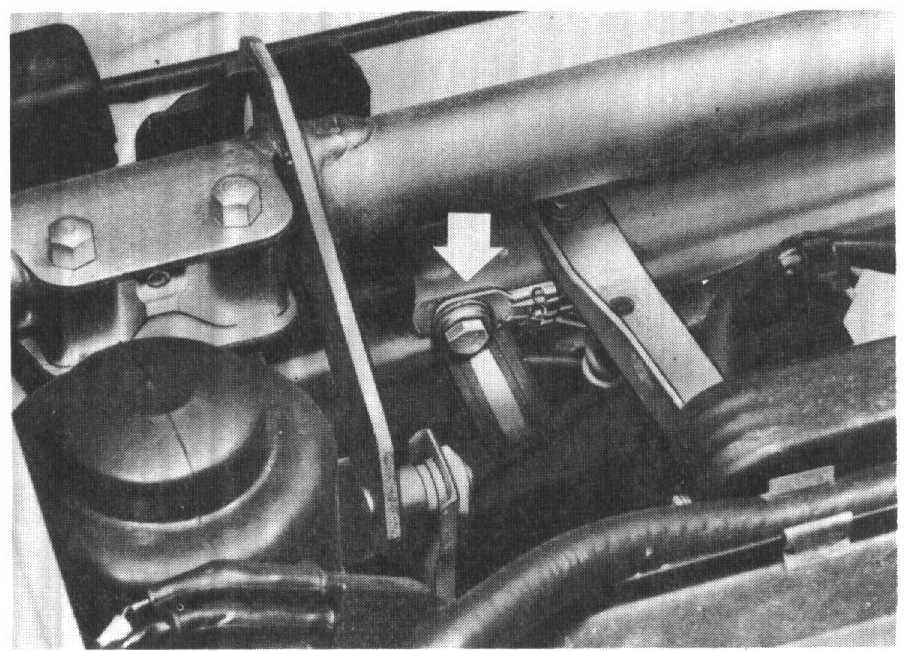

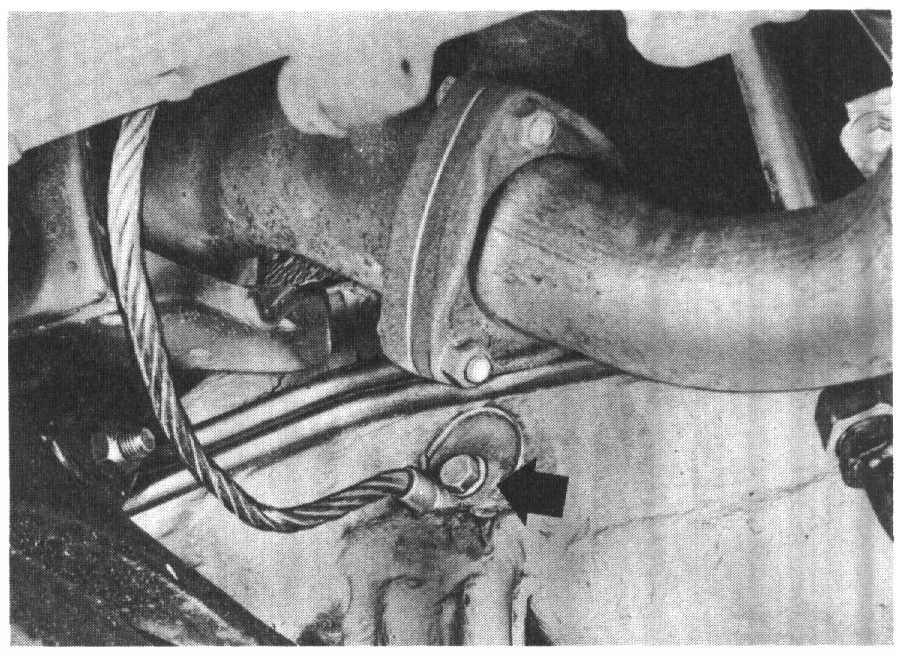

3. Engine ground to body on right side member.

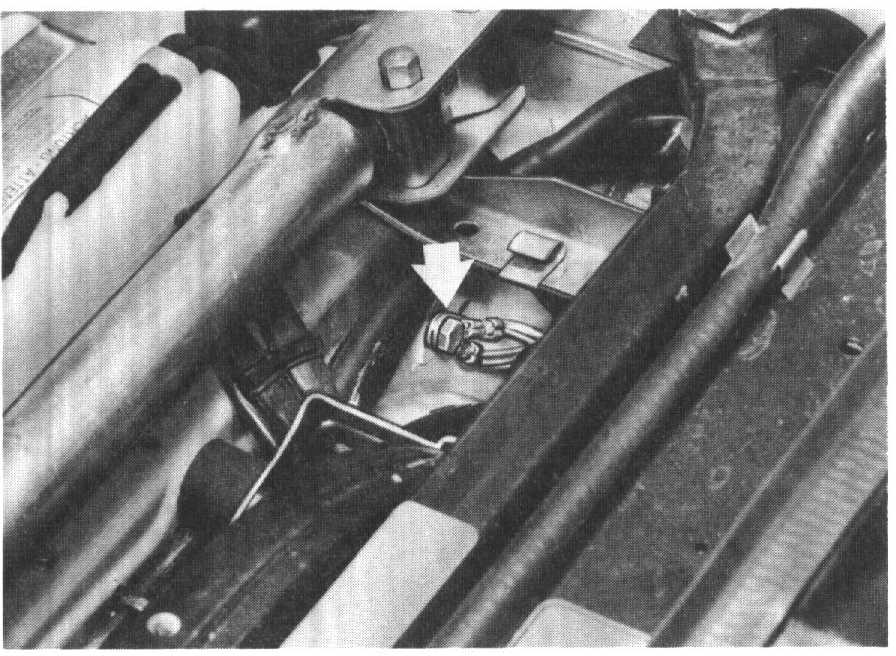

4. Ground point on front left cross member.





5. Ground point on front right cross member.





6. Ground point underneath instrument panel next to steering column.

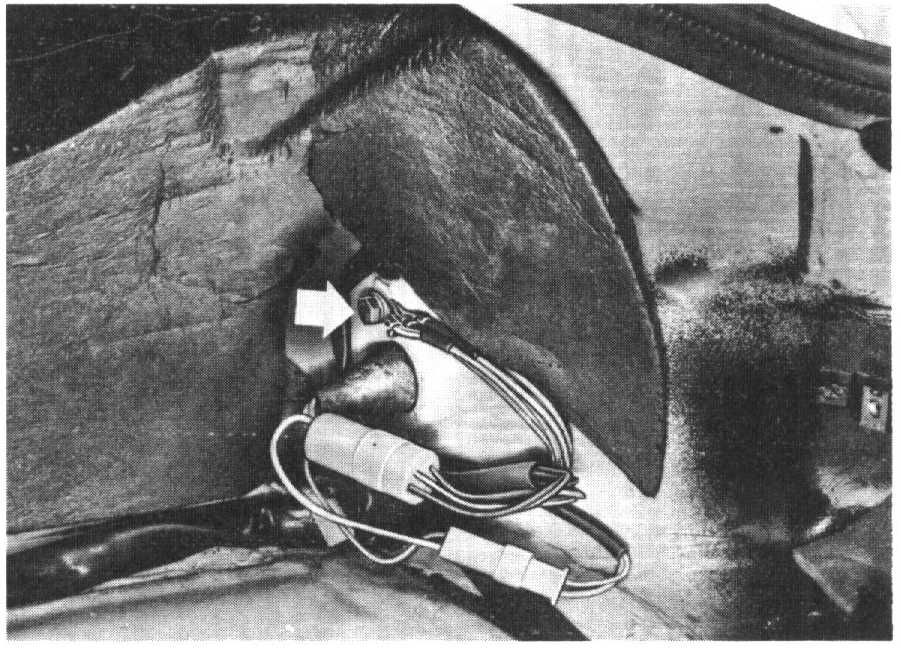

7. Ground point in trunk at rear right underneath side trim panel.

- Side trim panel has to be removed to make this ground point accessible.

GROUND TERMINALS

1 On Front Lock Member, Right
2 At Rear Of Wheel Arch Underneath Right Rear Trim Panel
3 On Steering Console
4 On Front Lock Members, Left
5 On Upper Mounting For Fuse / Relay Board
6 On Front Wall
