System Specifications

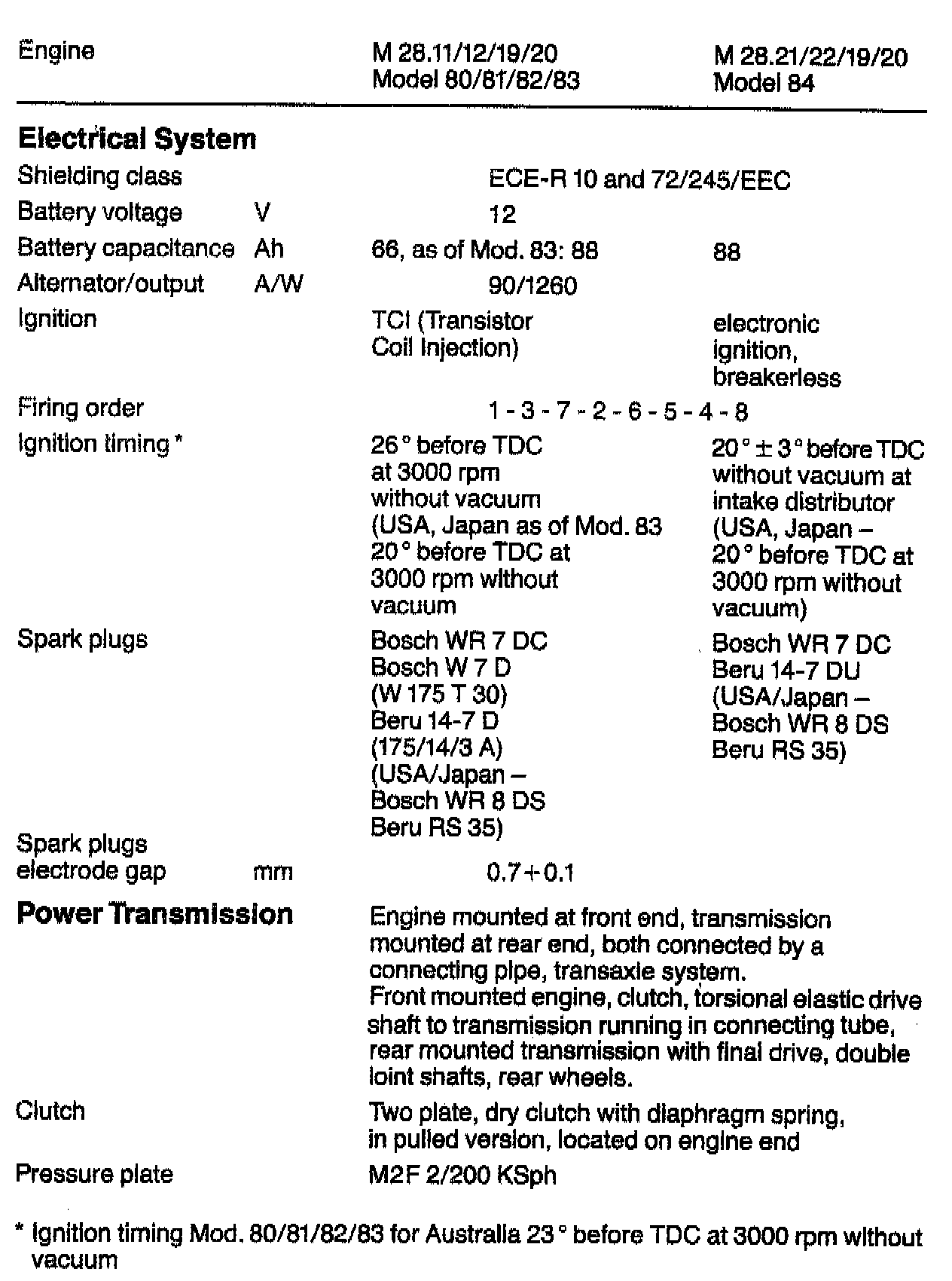

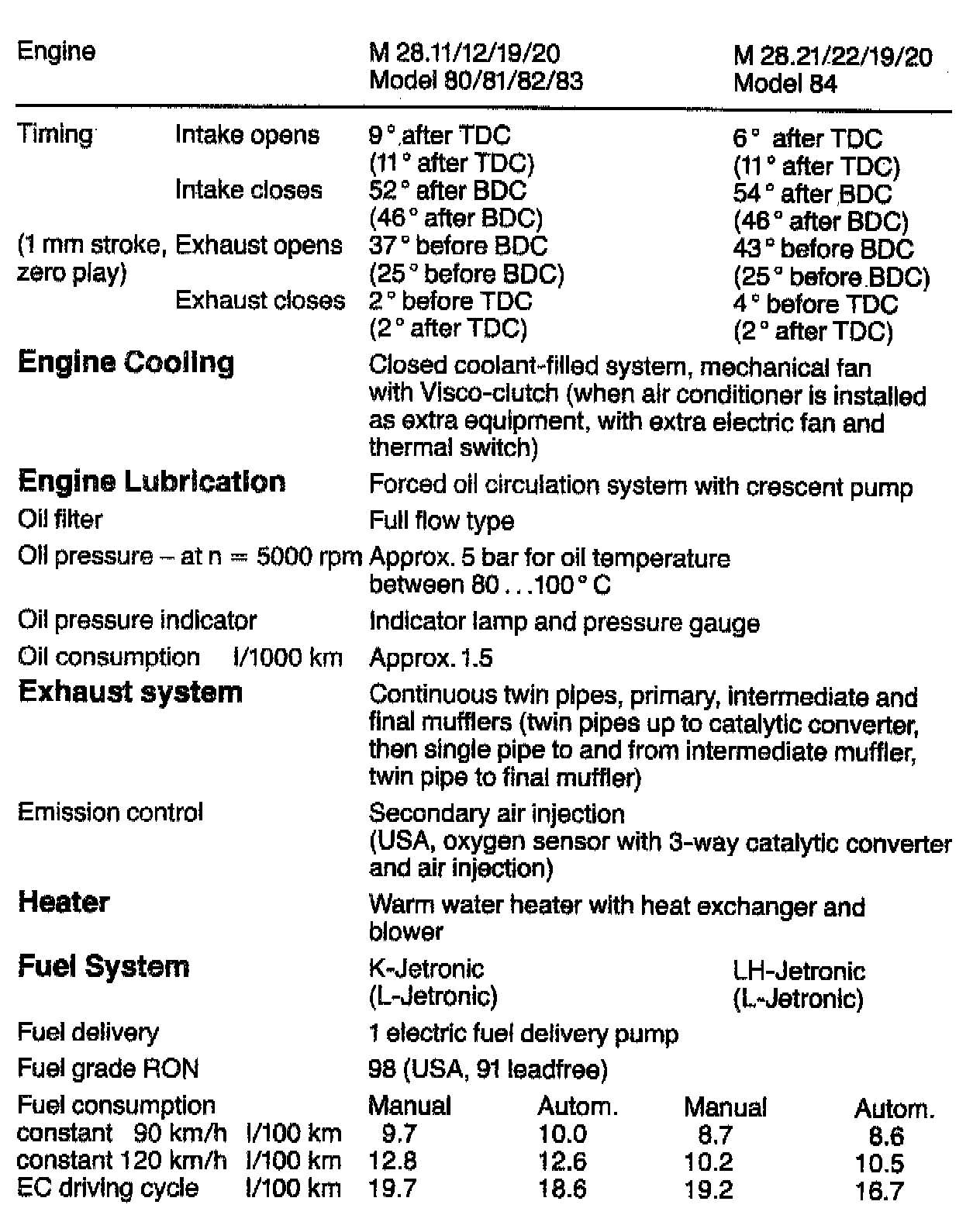

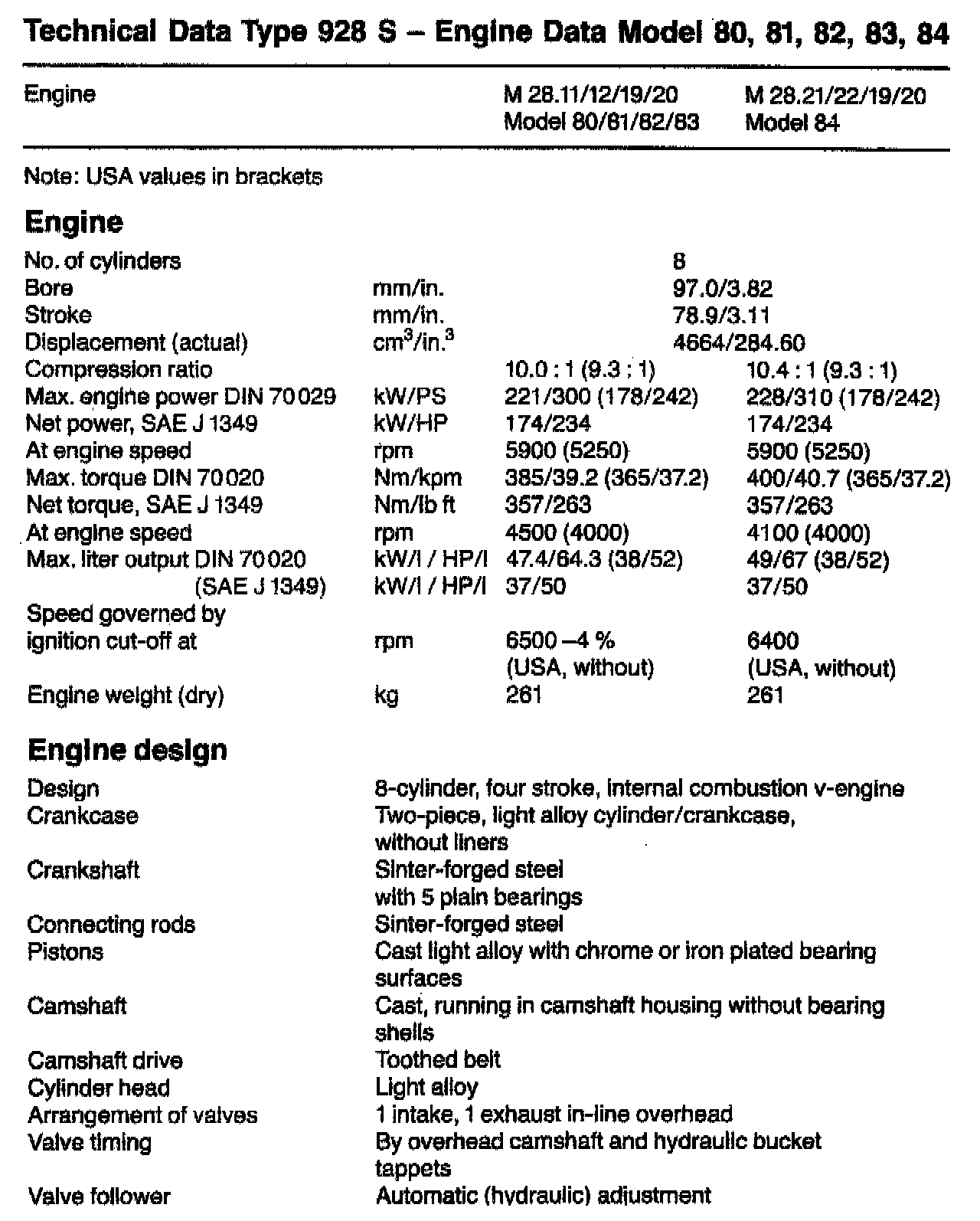

GENERAL SPECIFICATIONS













CRANKSHAFT SPECIFICATIONS





PISTON SPECIFICATIONS









TIGHTENING SPECIFICATIONS













TOLERANCES AND WEAR LIMITS









VALVE SPECIFICATIONS
