Diagram Information and Instructions
>>
Current Flow Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Current Flow Diagram

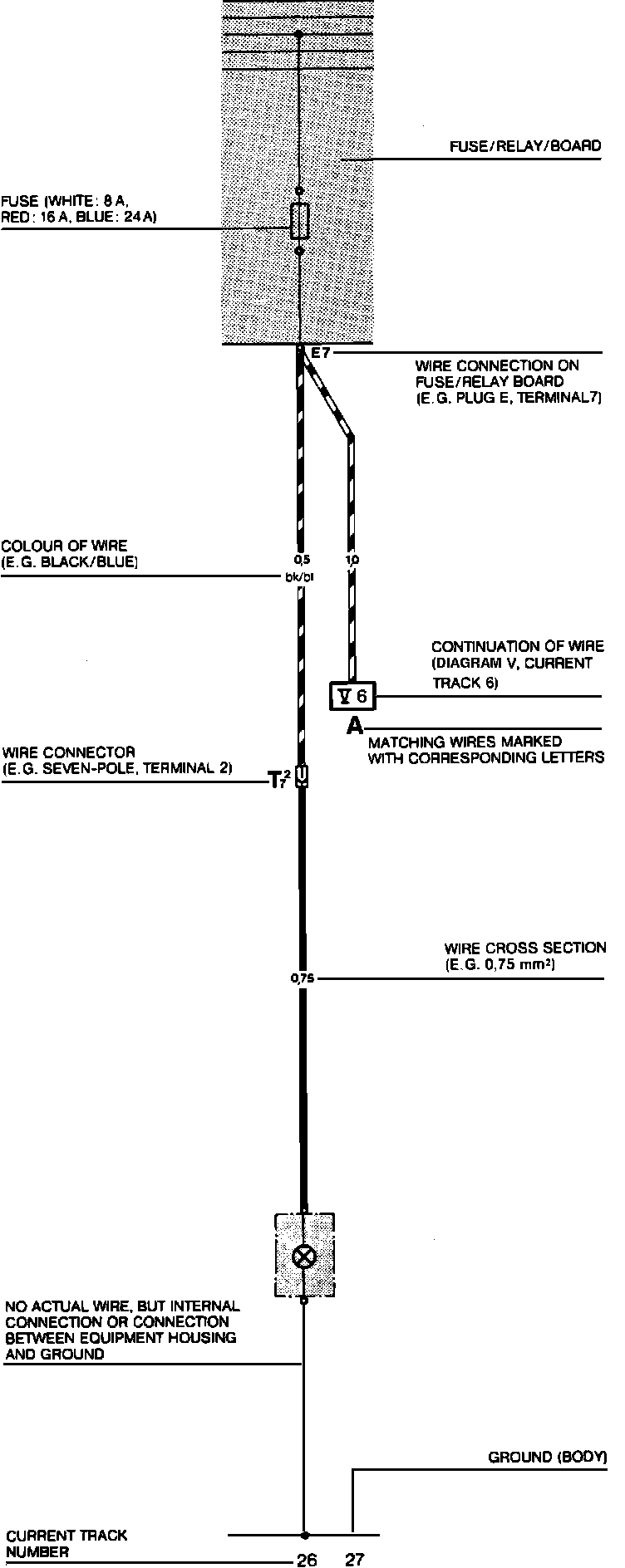

Wiring Diagram Interpretation:
