Reference Mark Sensor

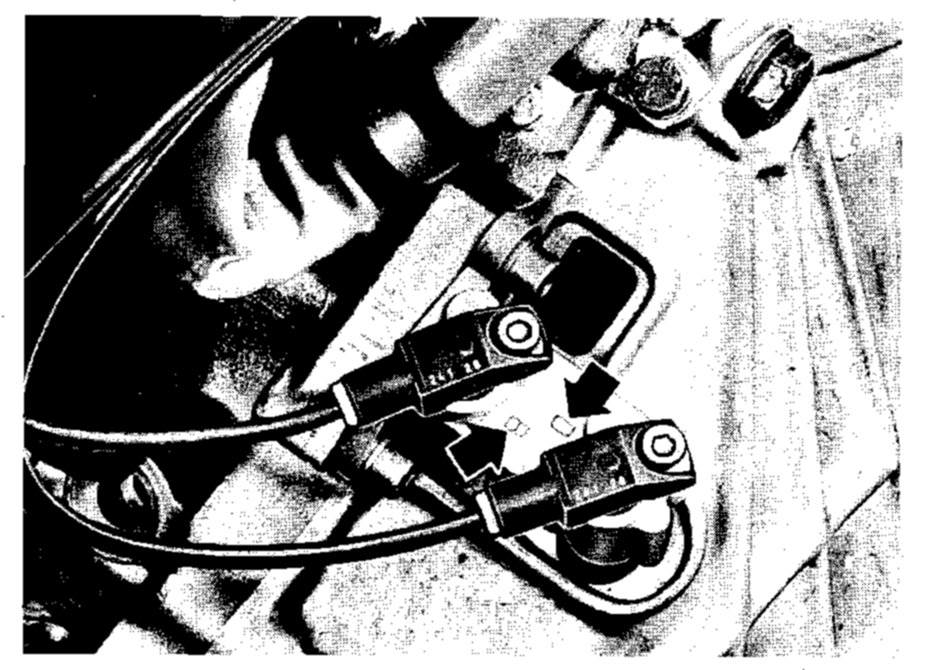

Speed & Reference Mark Sensors.:





The speed and reference sensors are mounted to the rear of the engine block, extending into the bellhousing.

Engine speed sensor is in opening D (rear)
Reference sensor is in opening B (front)
