Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

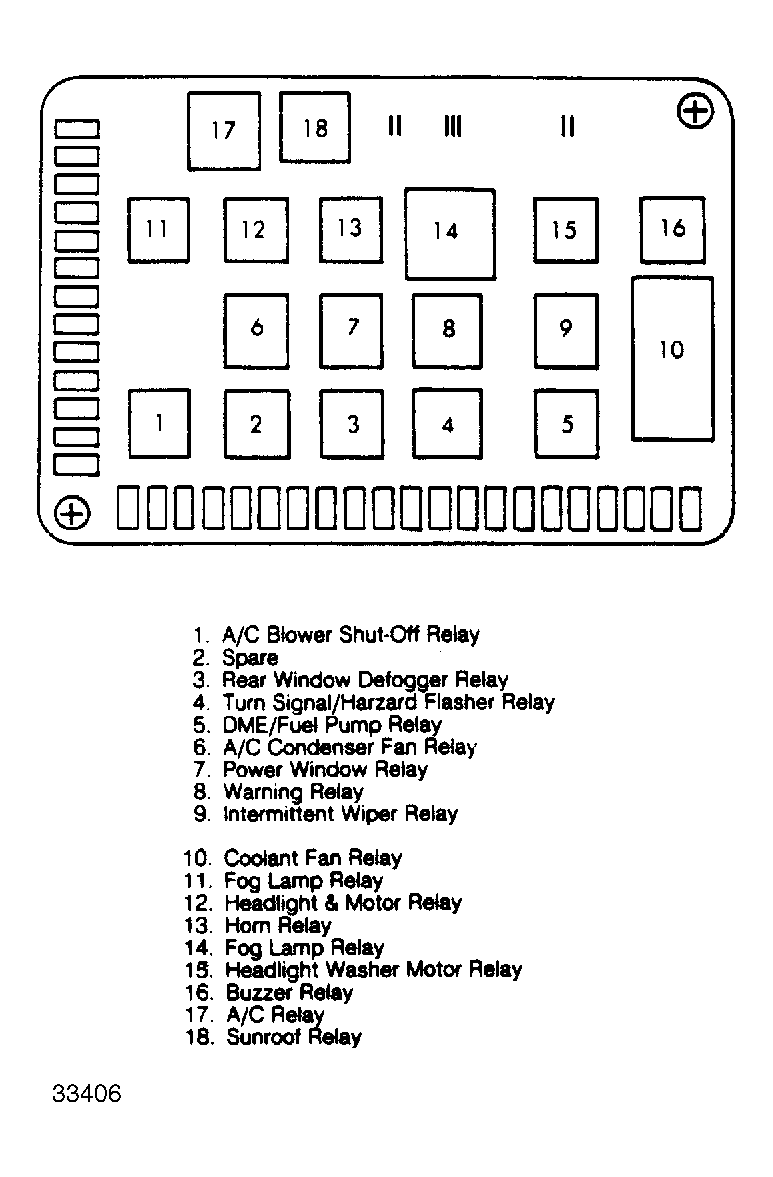

Fuse/Relay Panel In engine compartment, on left rear side of engine. See Figure .
