System Specifications

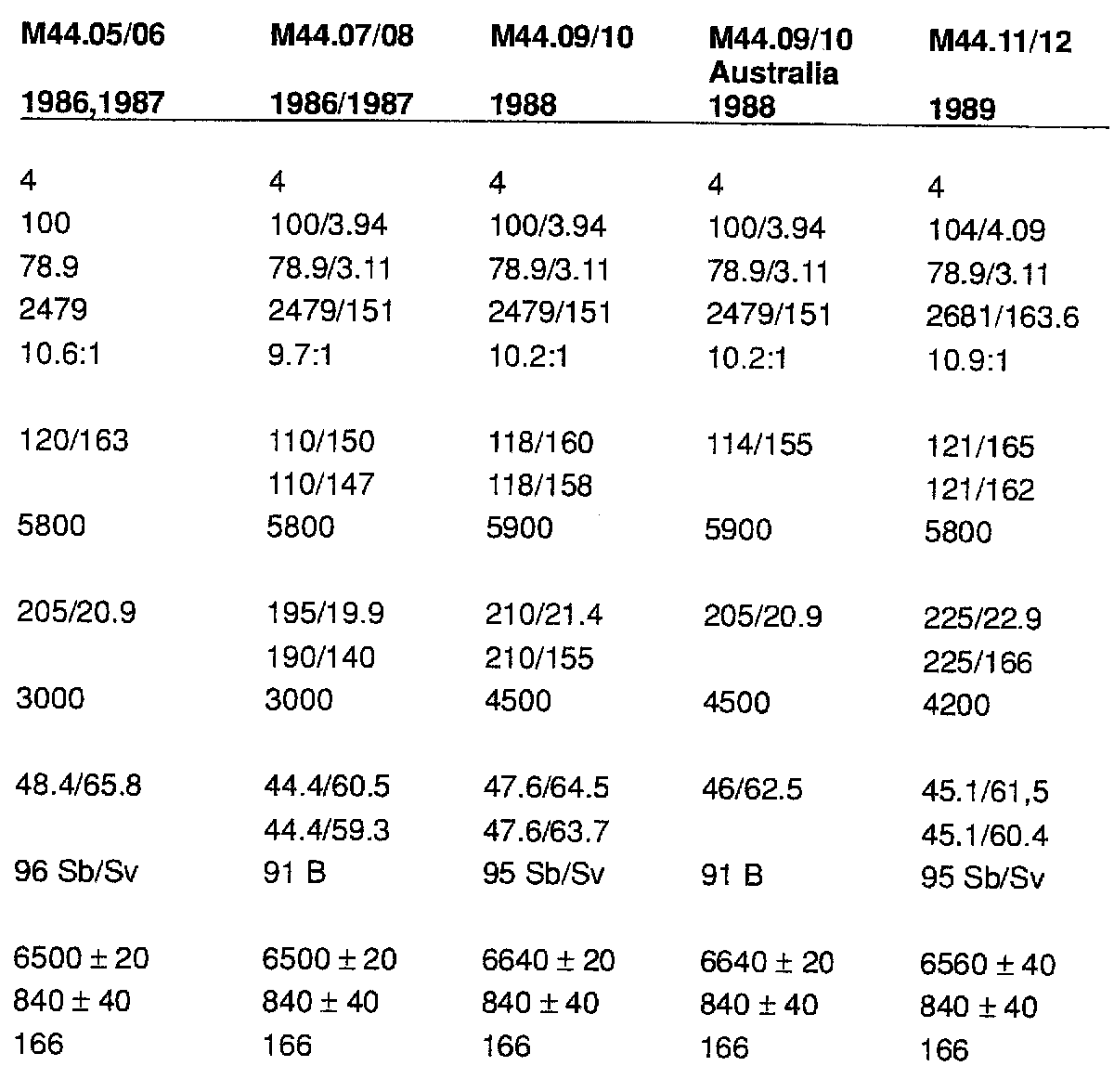

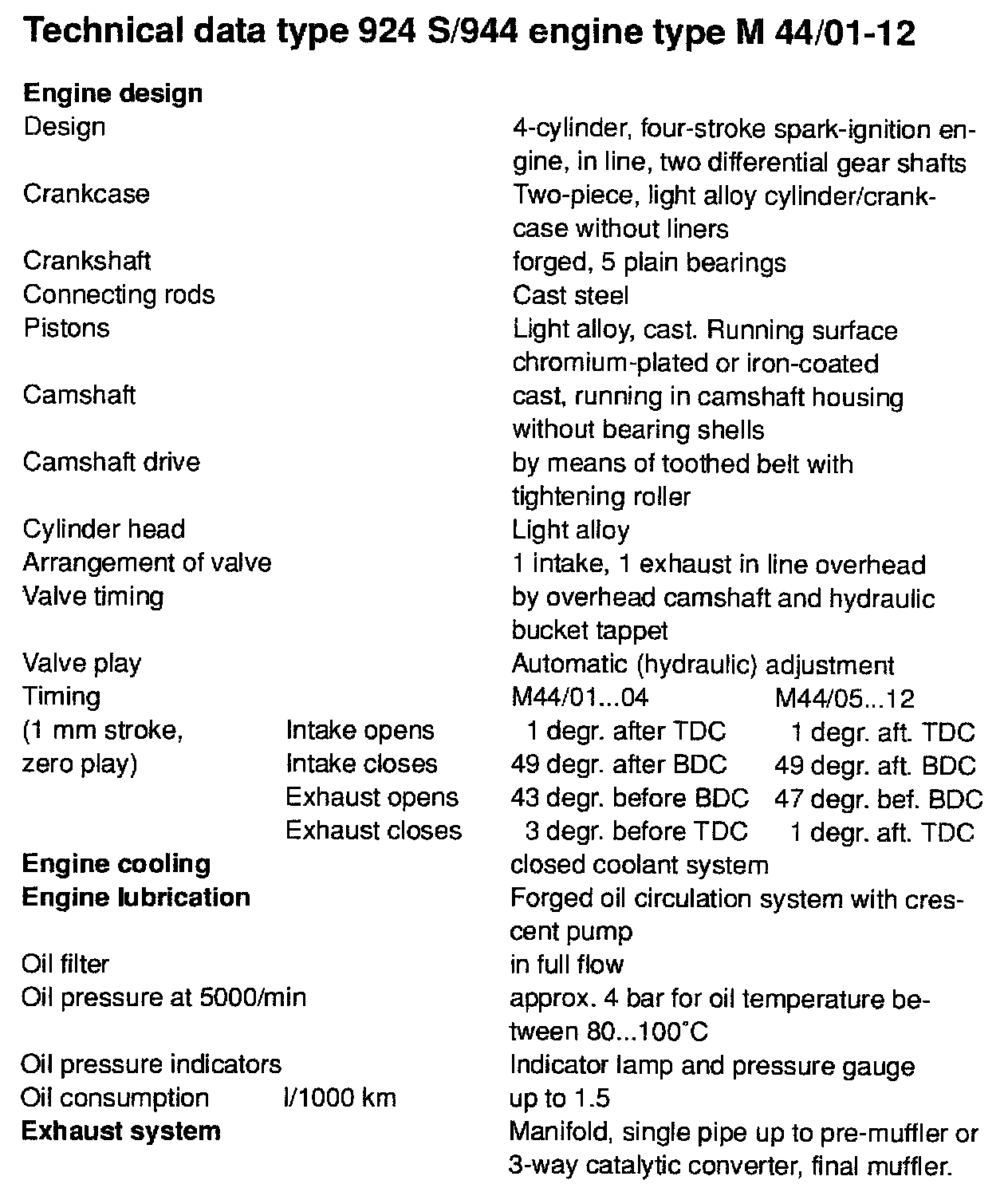

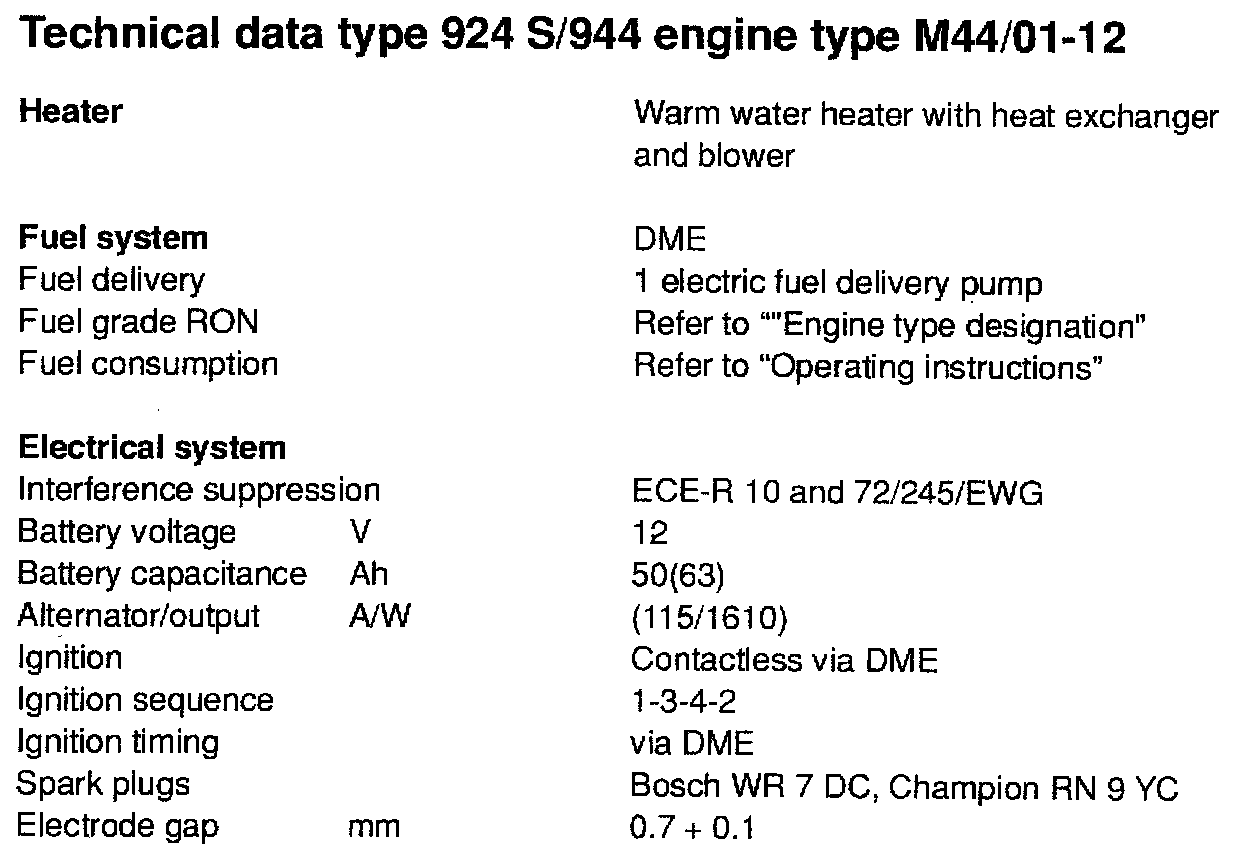

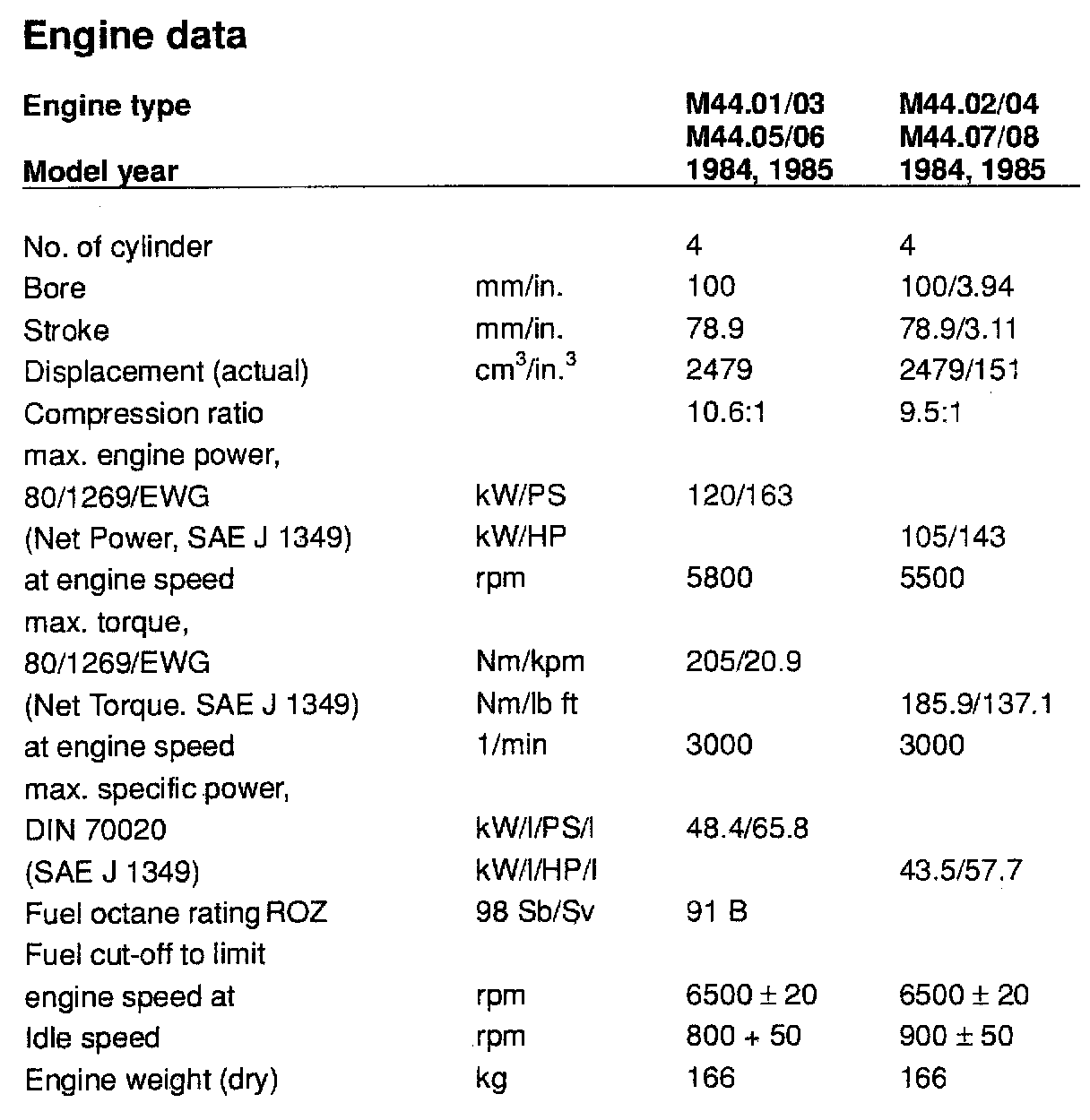

GENERAL SPECIFICATIONS

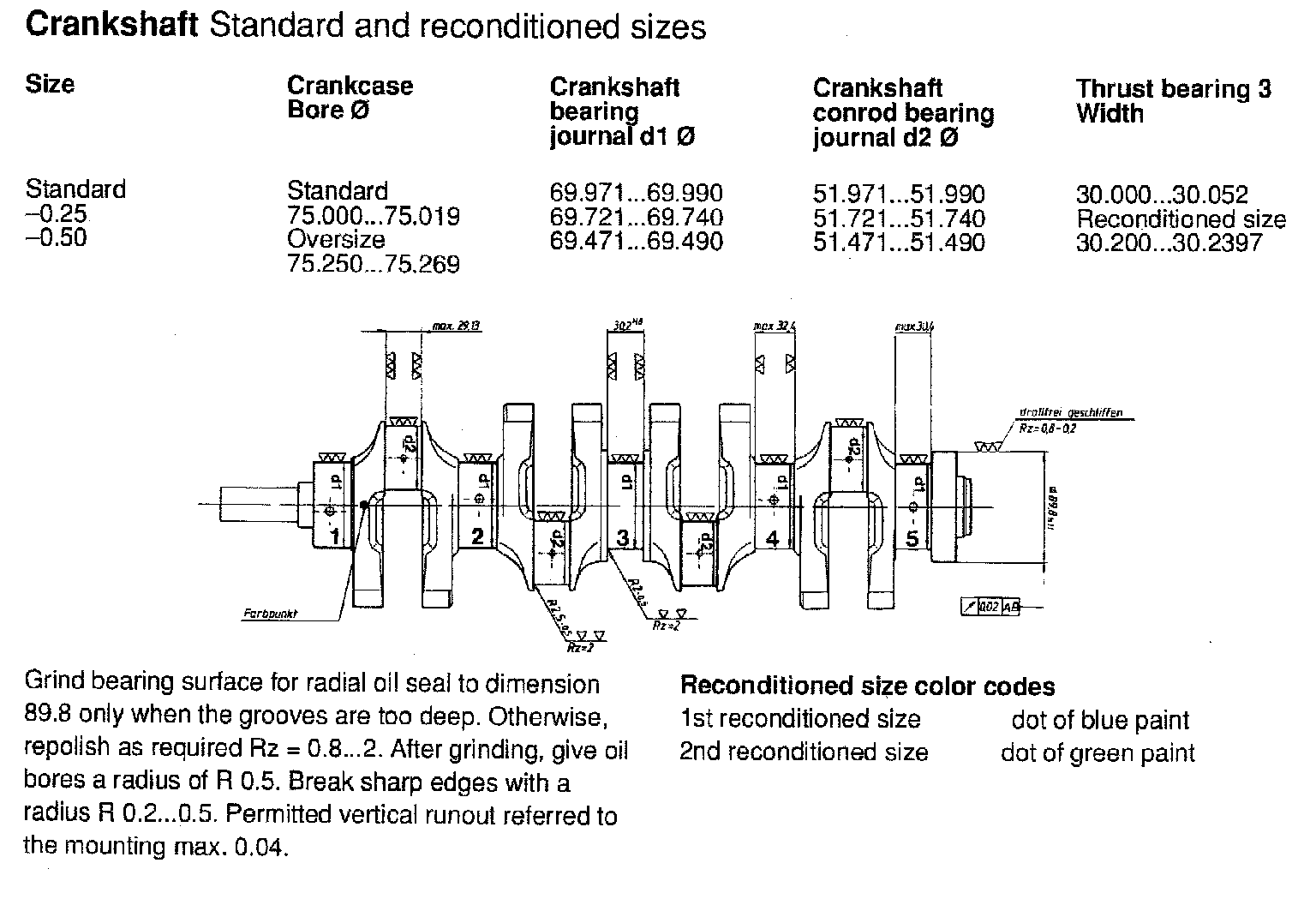

CRANKSHAFT SPECIFICATION

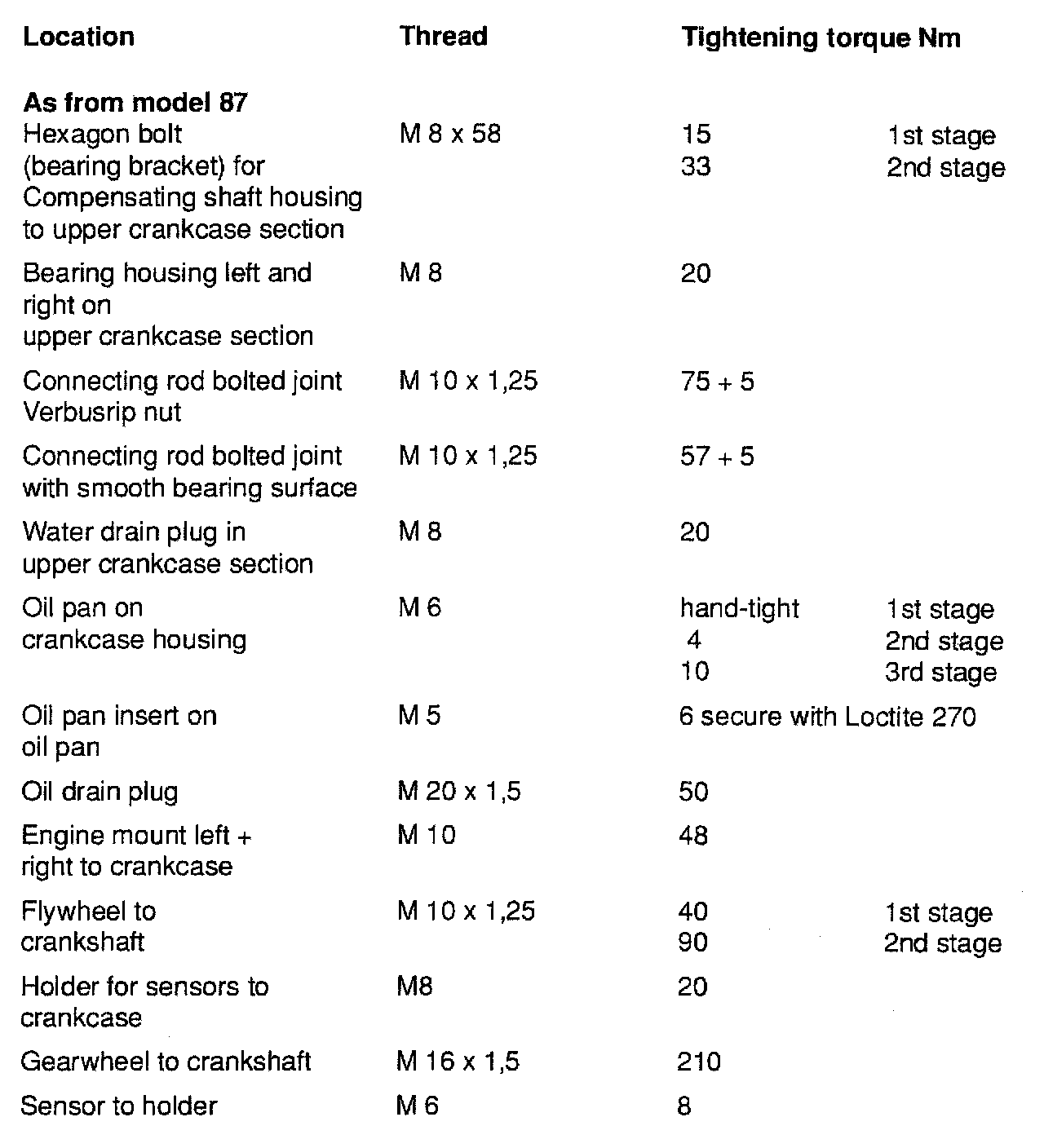

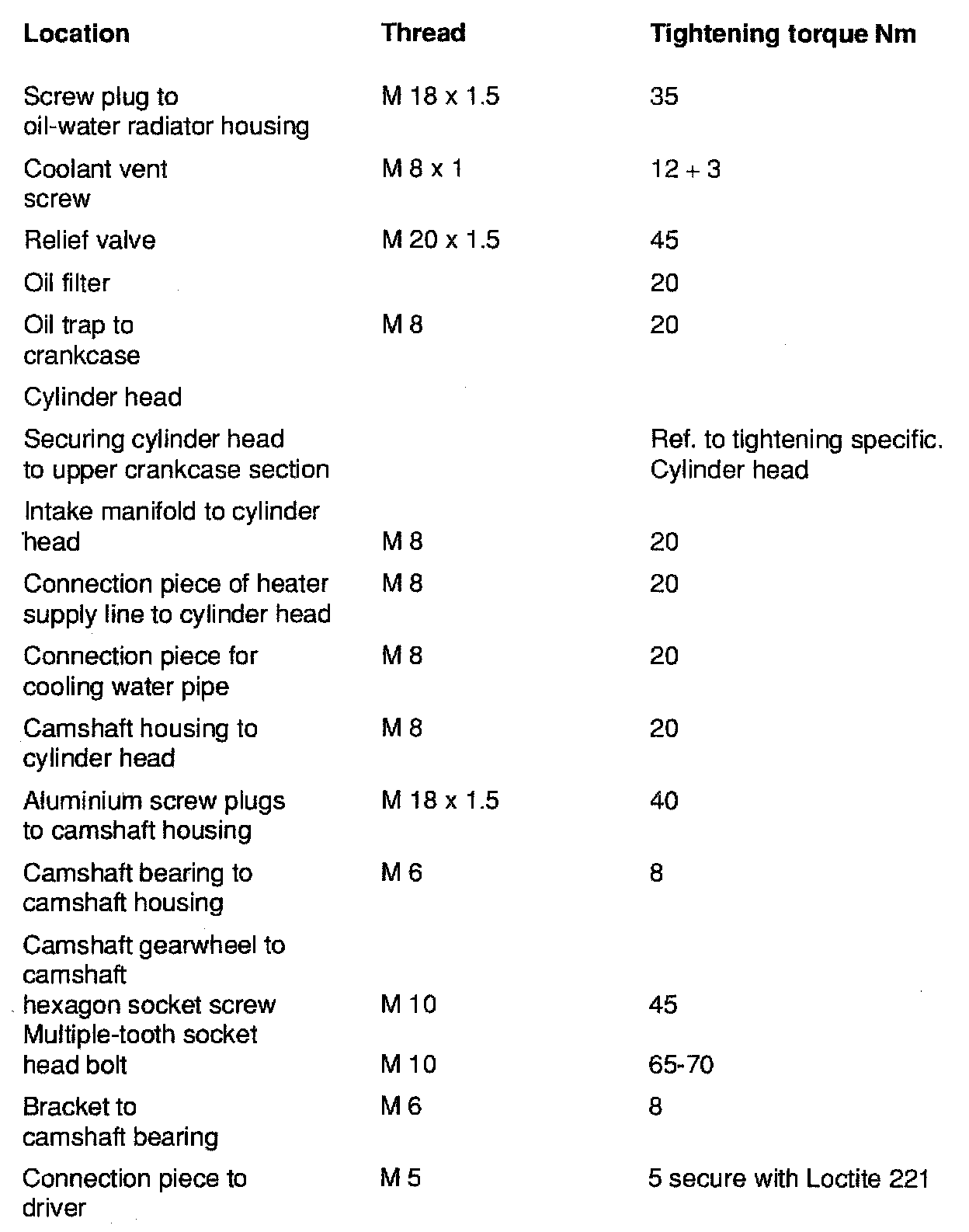

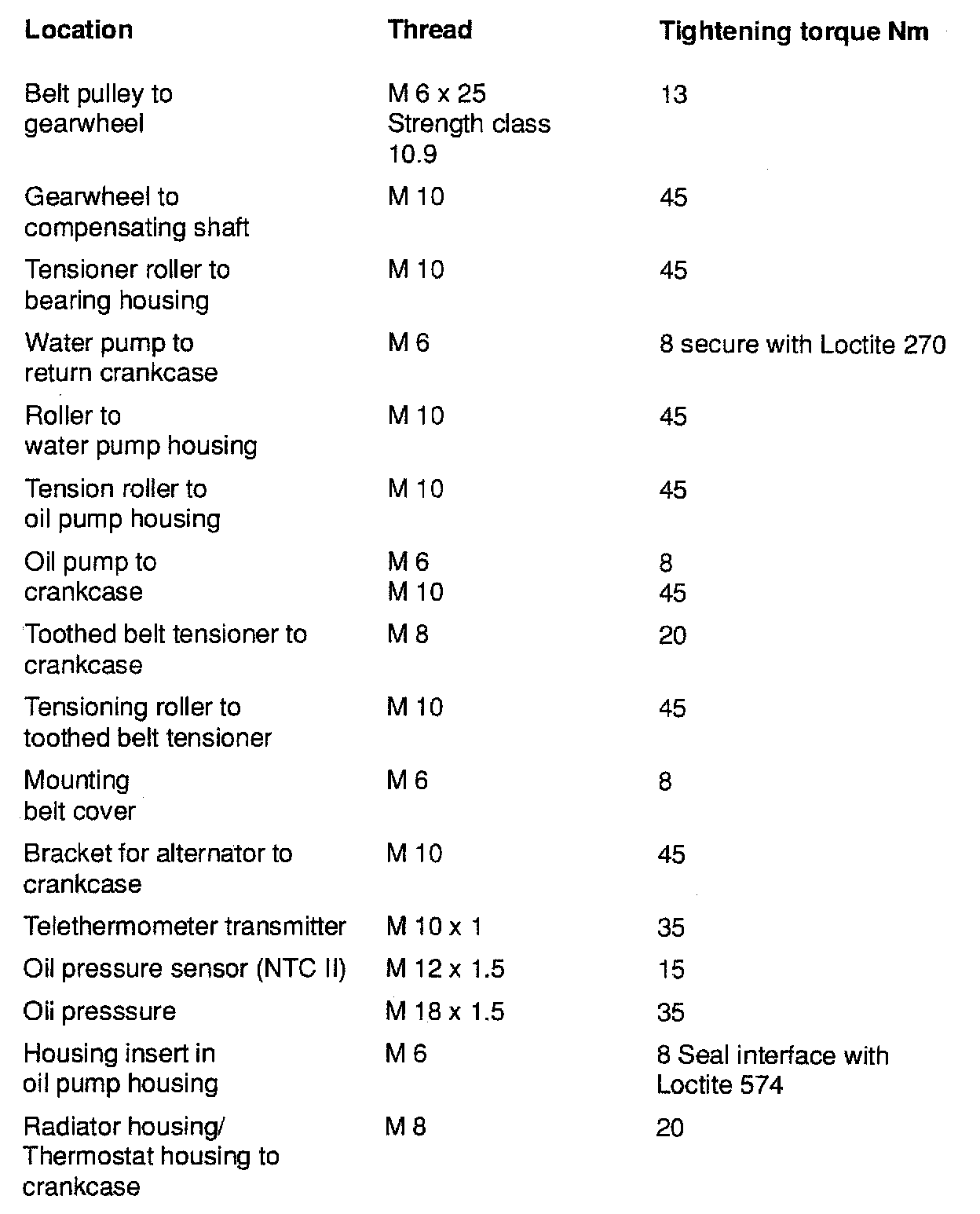

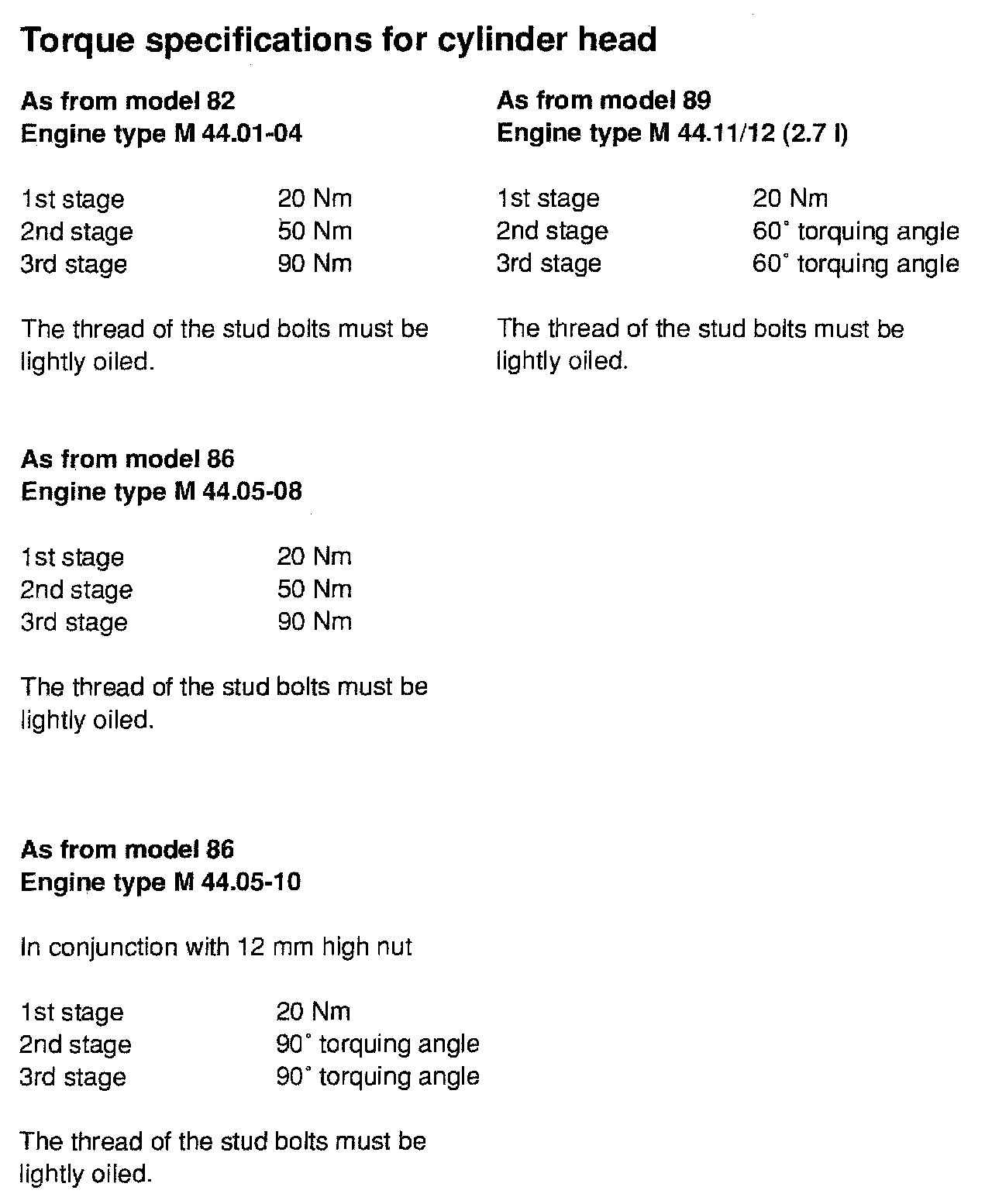

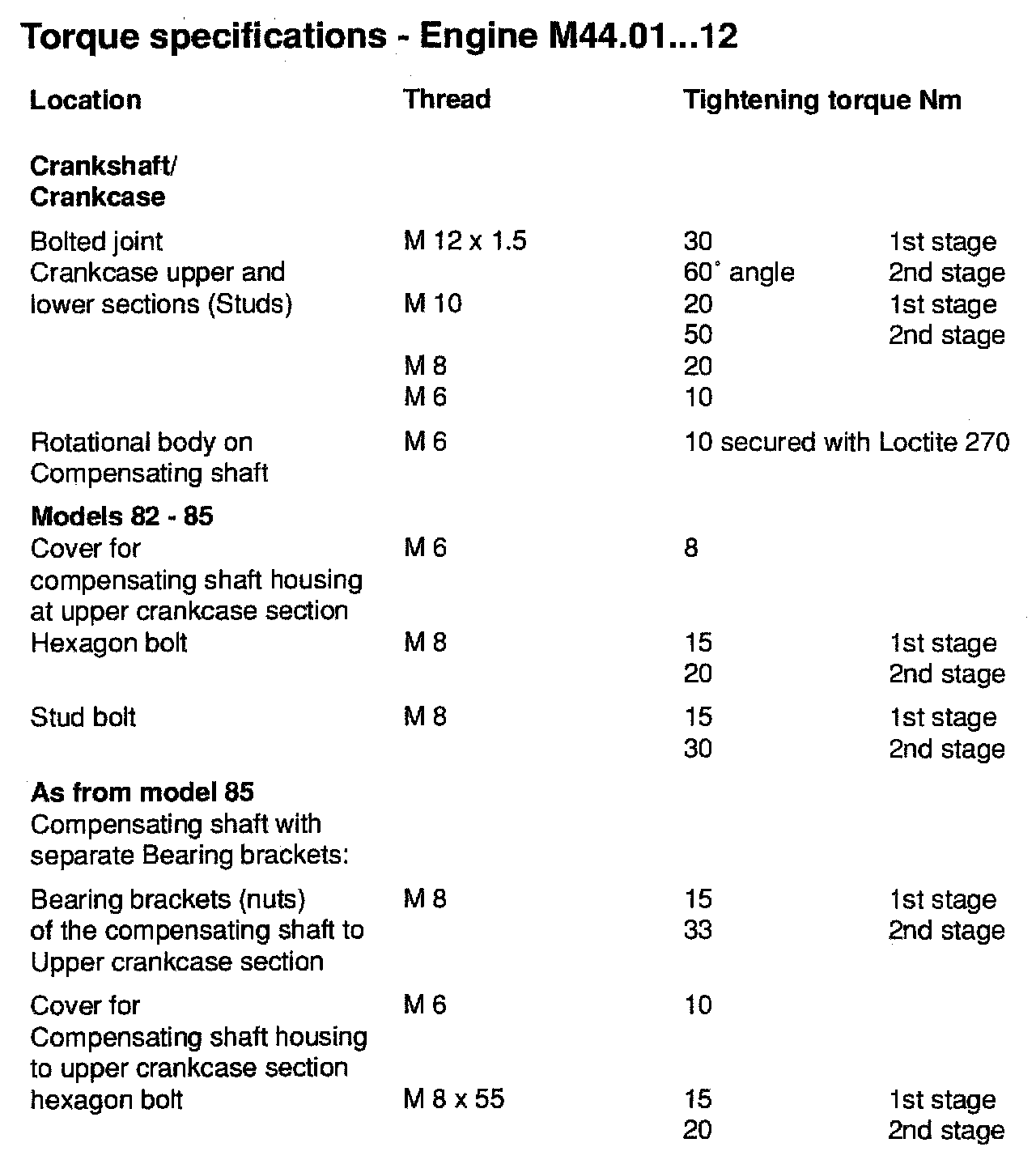

TIGHTENING SPECIFICATIONS

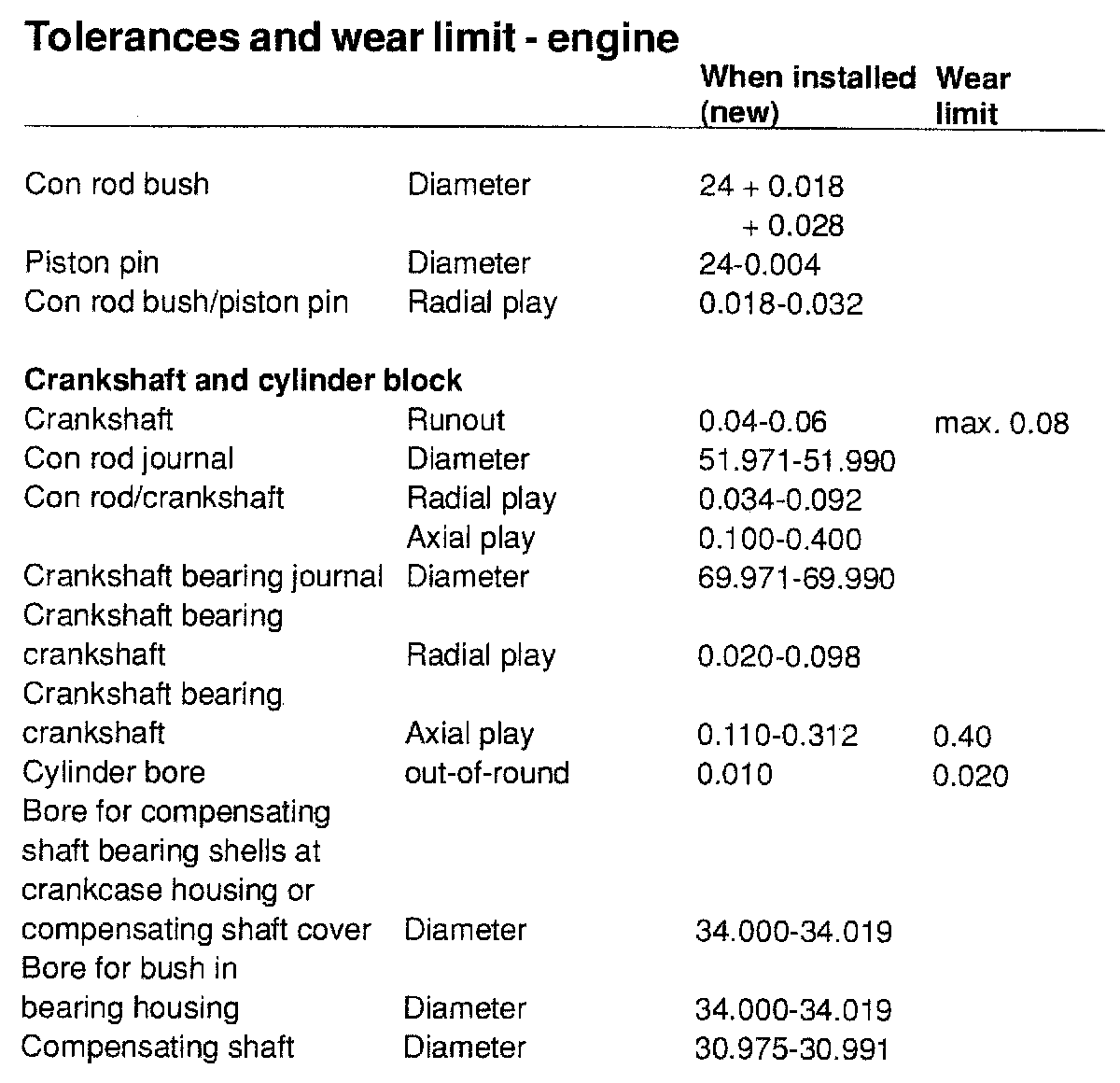

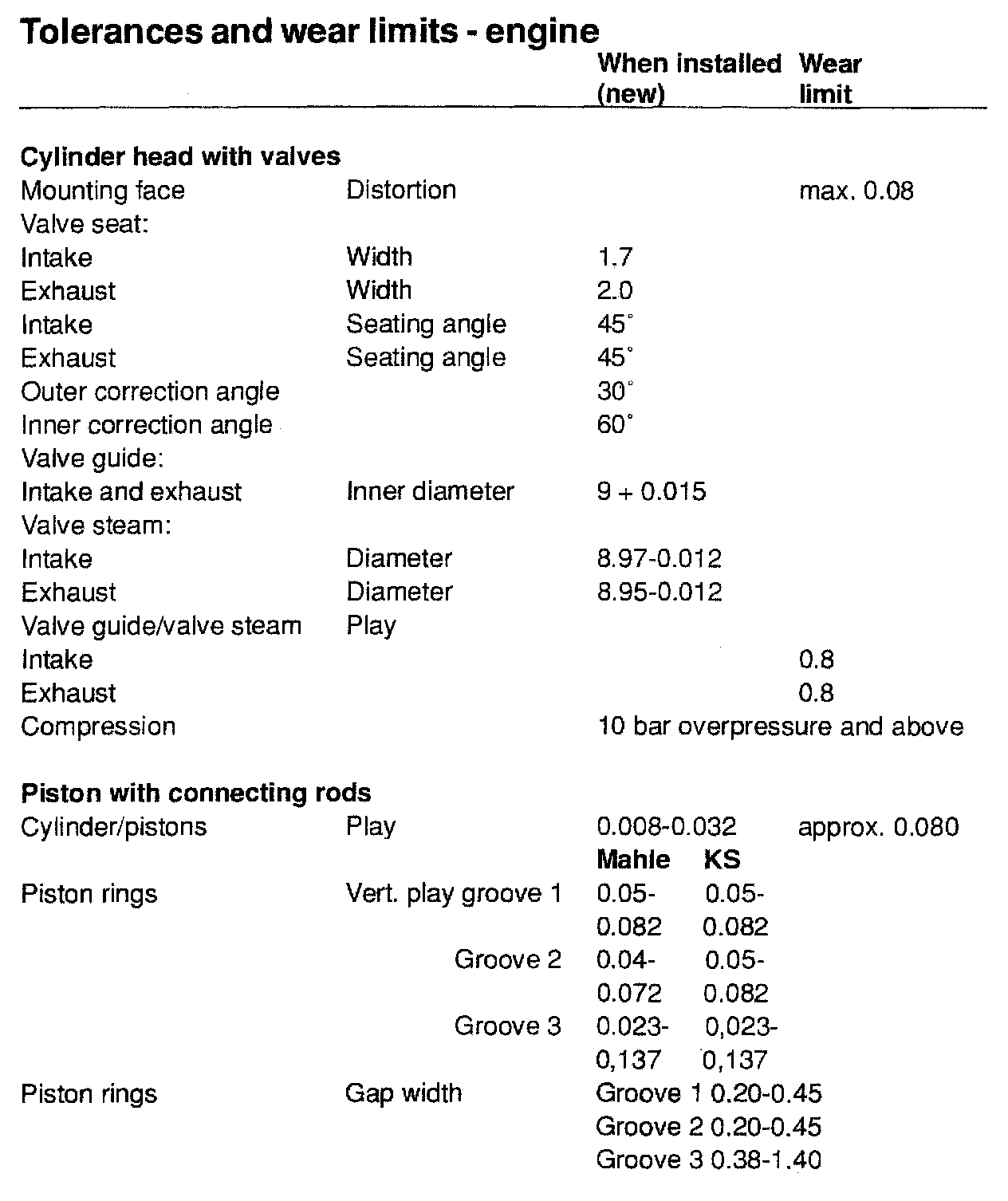

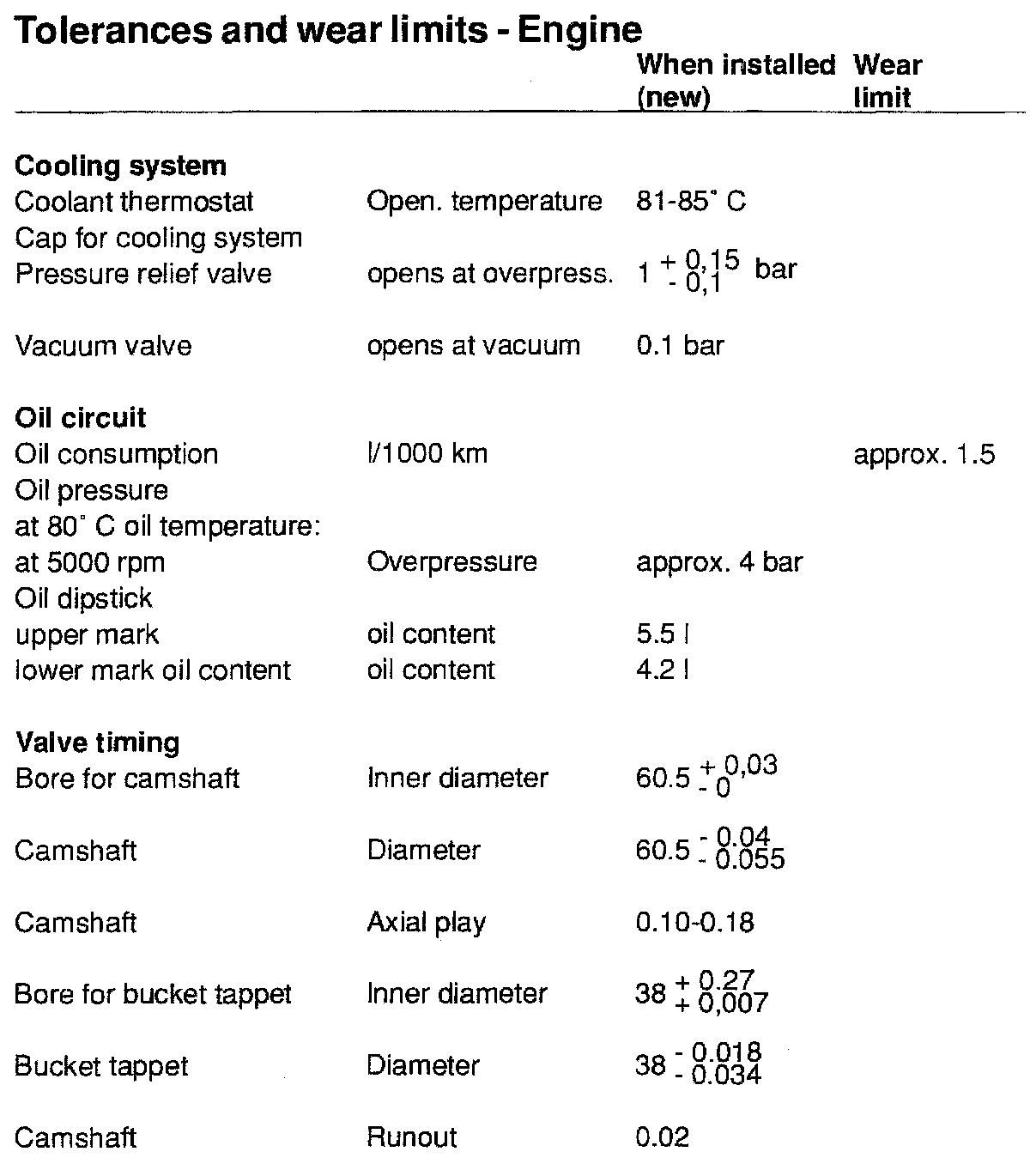

TOLERANCES AND WEAR SPECIFICATIONS

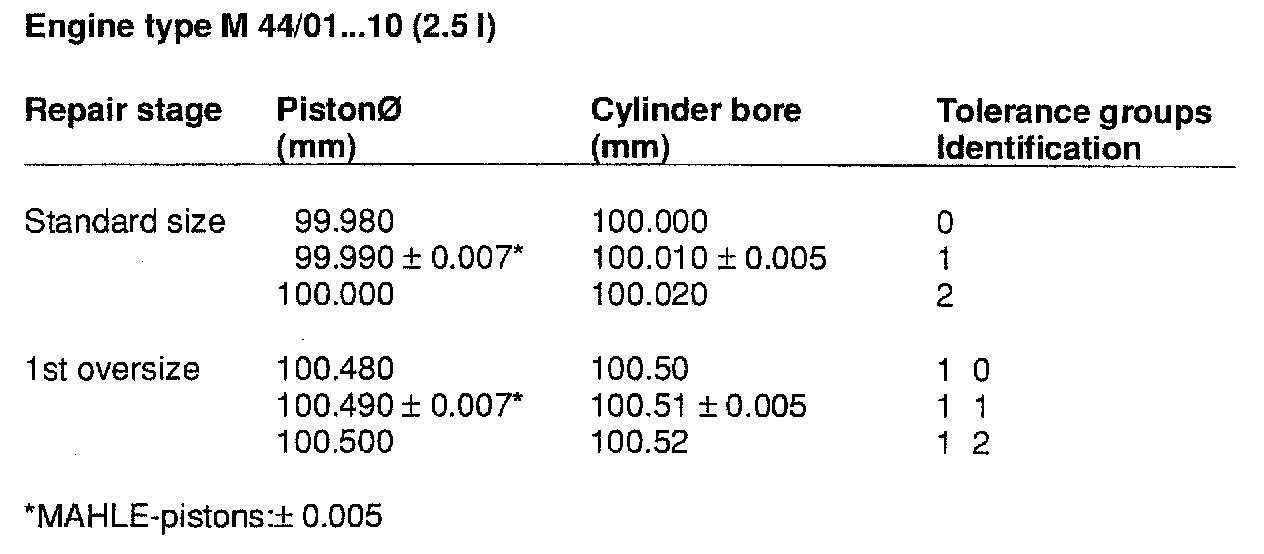

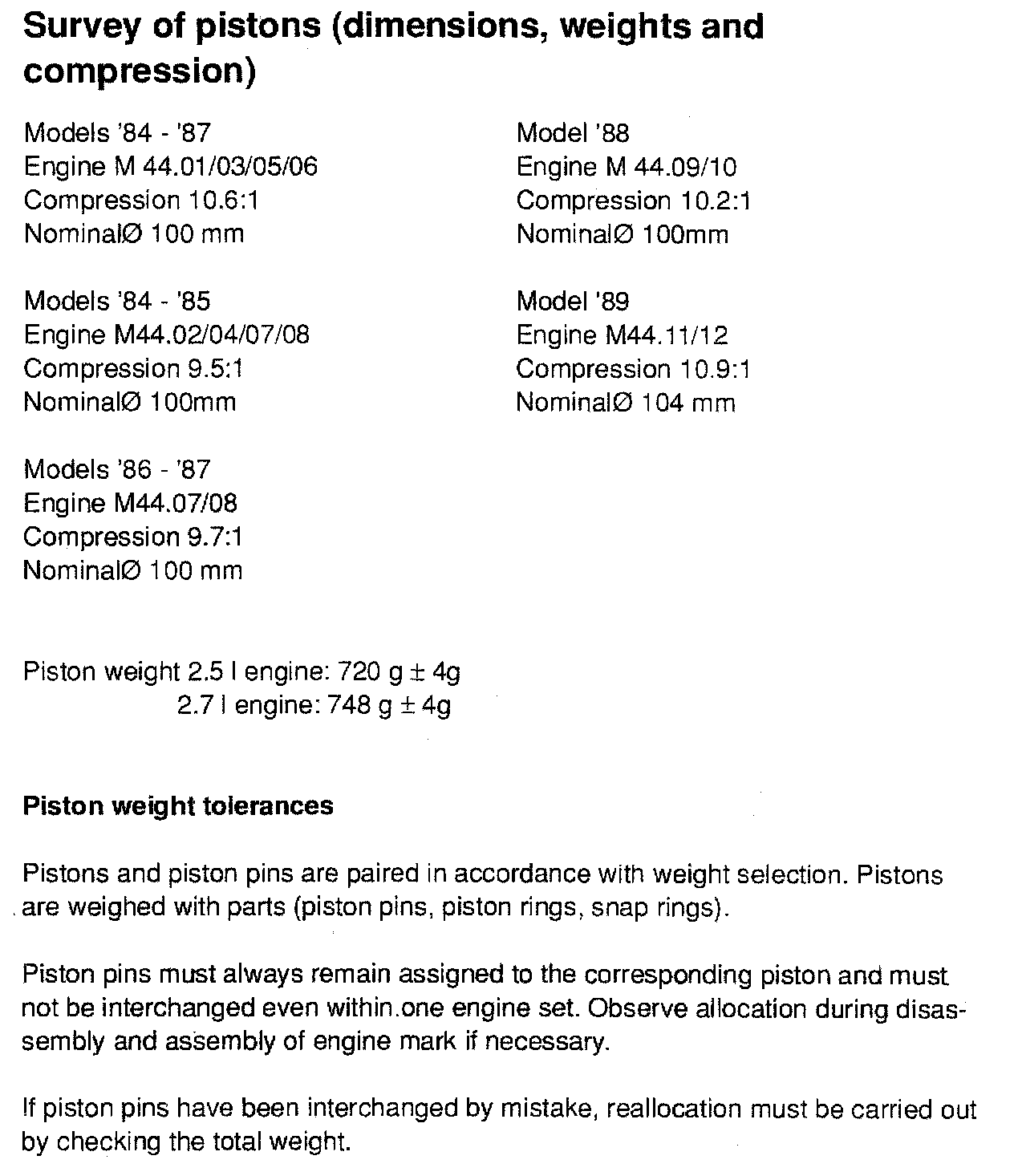

PISTON SPECIFICATIONS

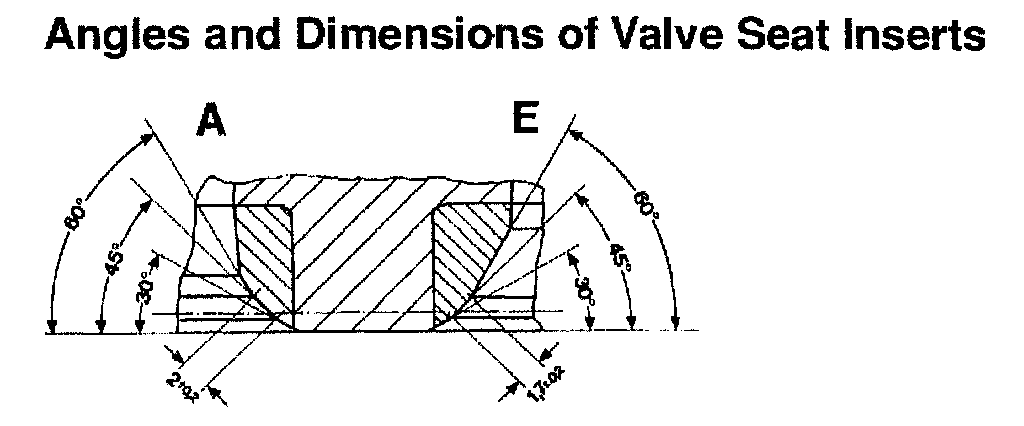

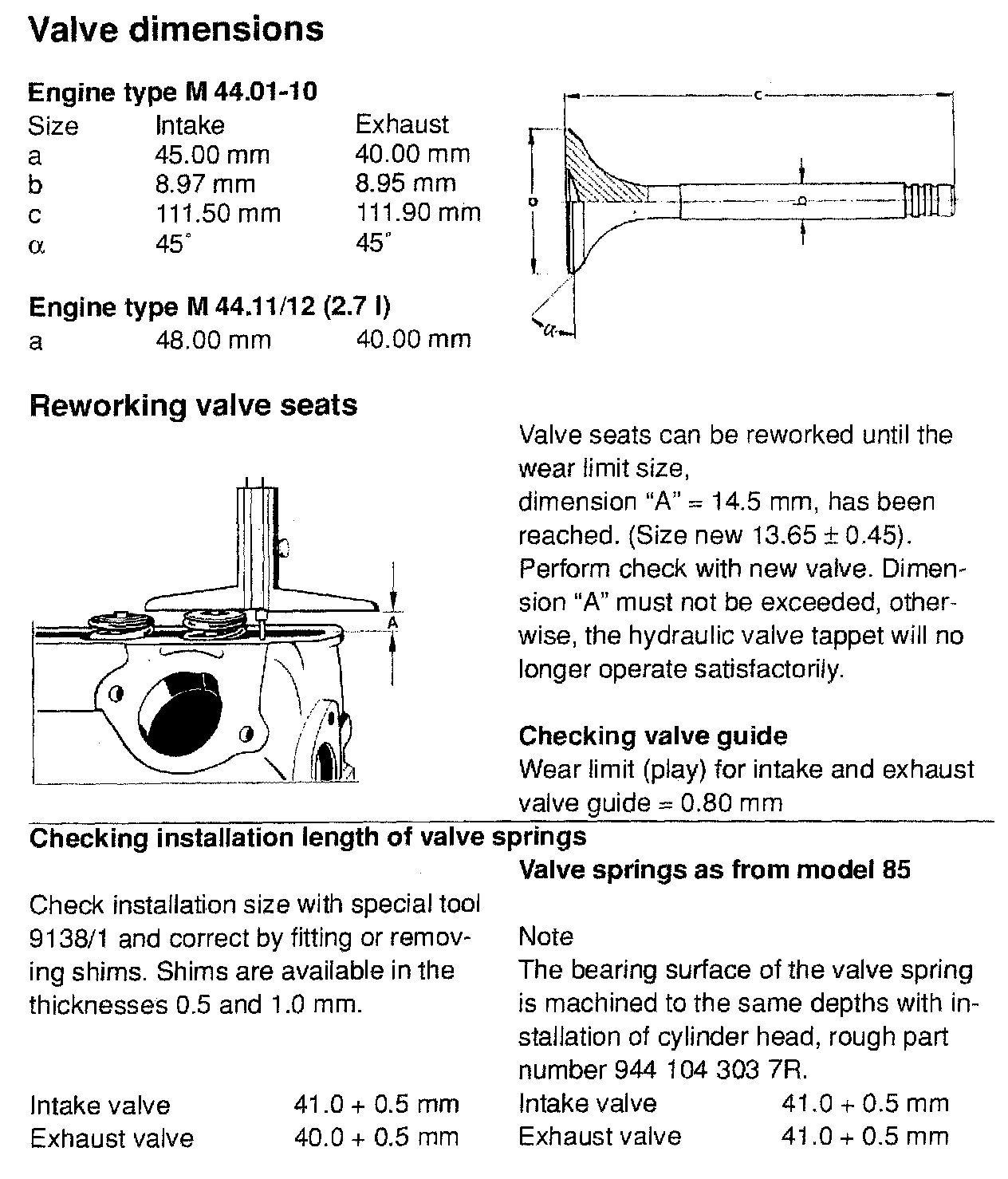

VALVE SPECIFICATIONS
