Timing Component Alignment Marks: Locations

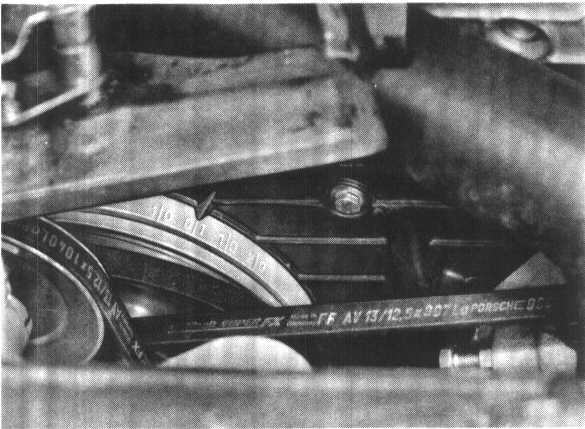

Caution: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information:
Service and Repair

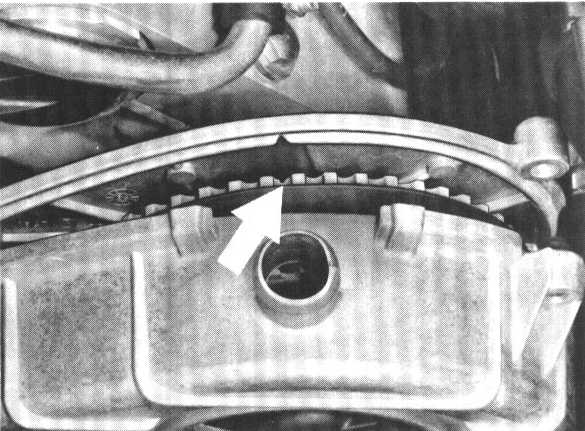

RH Camshaft:

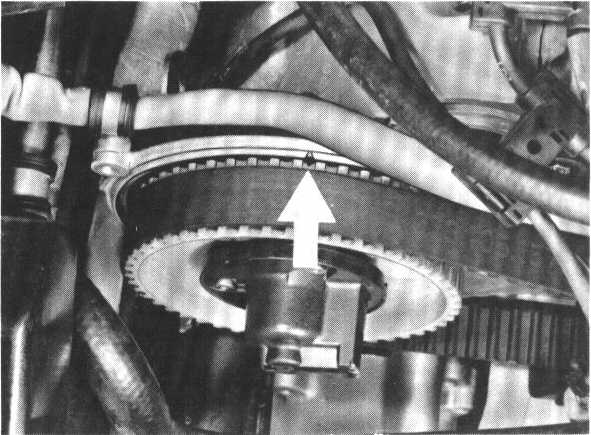

LH Camshaft:
