Ignition Control Module: Service and Repair

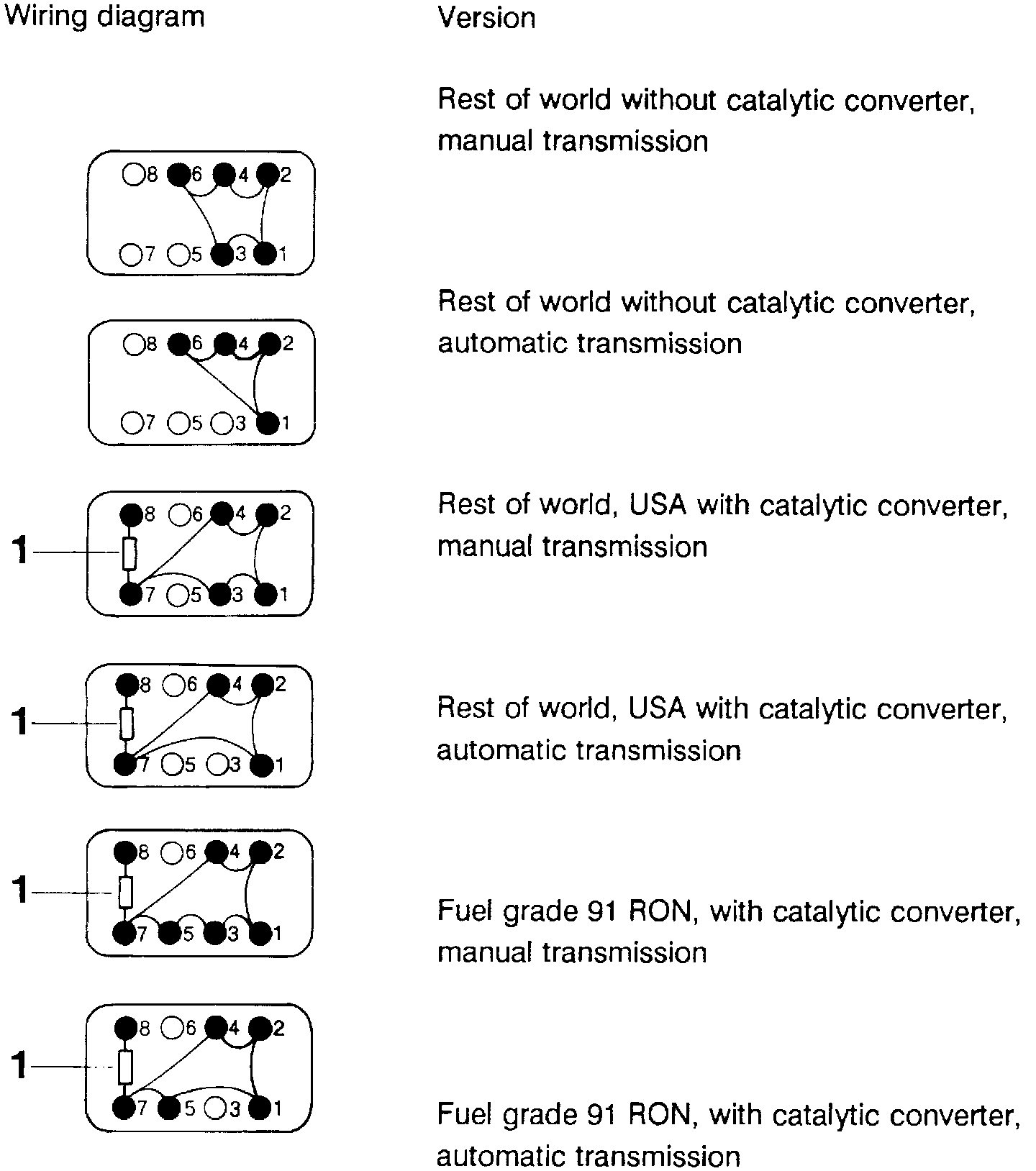

The coding connector is fitted to the mounting plate for the LH and EZK control units.
