Diagnostic procedure: Notes

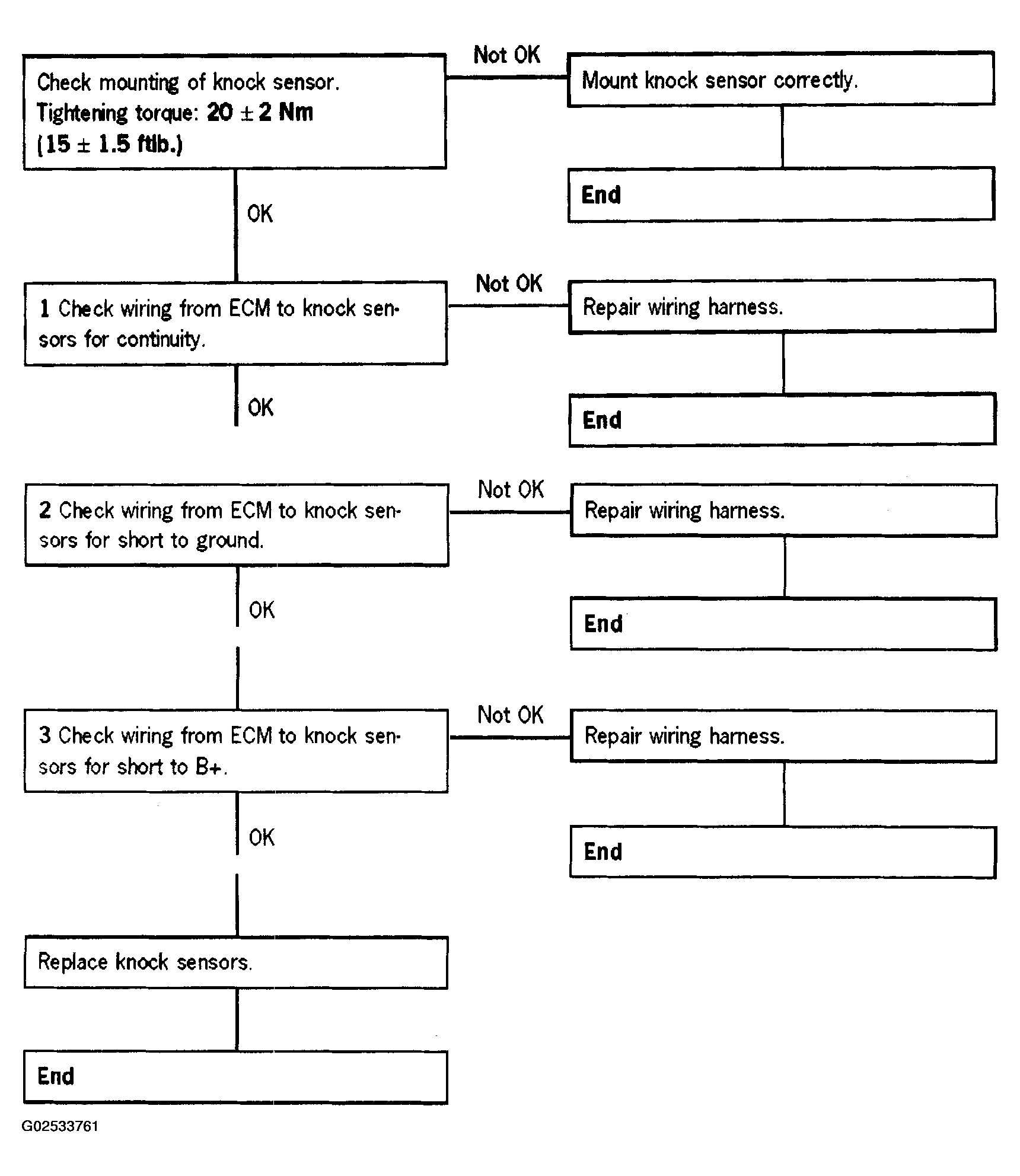

Fig 1: DTC P1384, P1385 & P1386 Diagnostic Procedure (1 Of 2)
G02533761Courtesy of PORSCHE OF NORTH AMERICA, INC.

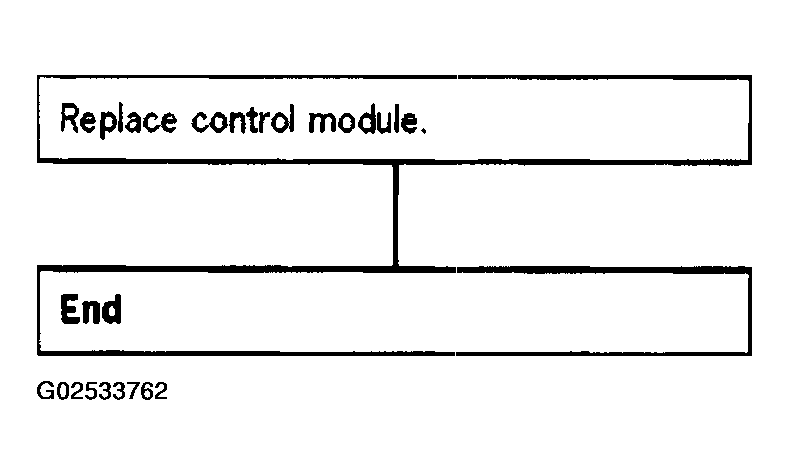

Fig 2: DTC P1384, P1385 & P1386 Diagnostic Procedure (2 Of 2)
G02533762Courtesy of PORSCHE OF NORTH AMERICA, INC.
