Removing And Installing Side-Panel Lining
REMOVAL AND INSTALLATION PROCEDURE FOR SIDE-PANEL LINING

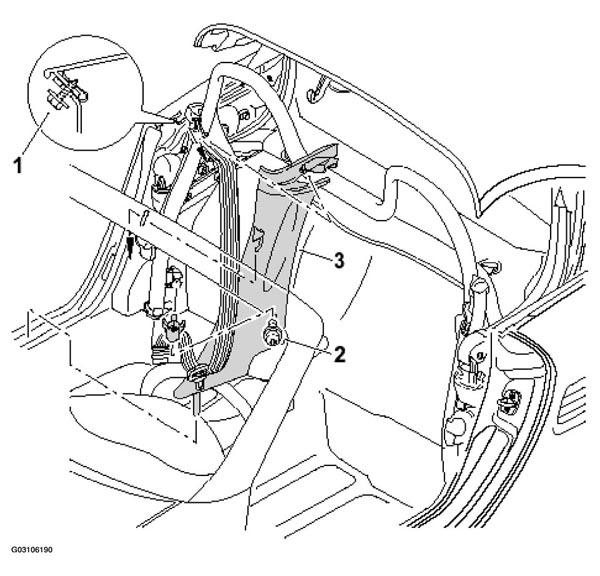

| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Fastening screw | 1 | Unscrew fastening screw -1- (1) | Screw in fastening screw -1- (1) | ||
| 2(1) | Fastening screw | 1 | Undo fastening screw two turns -2- (1) | Tighten fastening screw -2- (1) | ||
| 3(1) | Side-panel lining | 1 | Lift side-panel lining -3- (1) | Connect electrical plug connection of the rear window heater. -3- (1) insert retaining lug of the side-panel lining -3- (1) |
||
| 4(1) | Holder | 1 | Check, replace if necessary. | |||
|
||||||
