Installing The Control Module For The Antenna

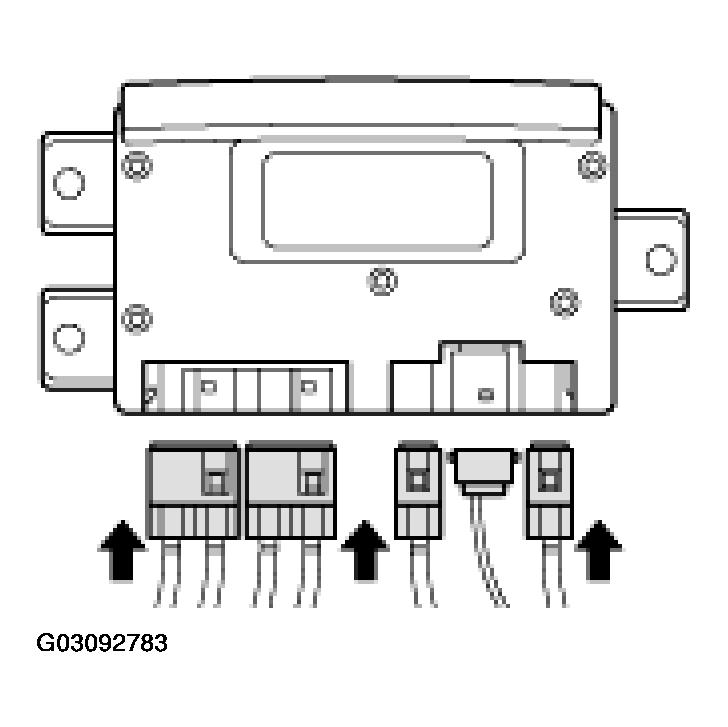

1. Connect the electrical connectors in turn.
   Fig 1: Connecting Antenna Control Unit Electrical Connectors In Turn

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

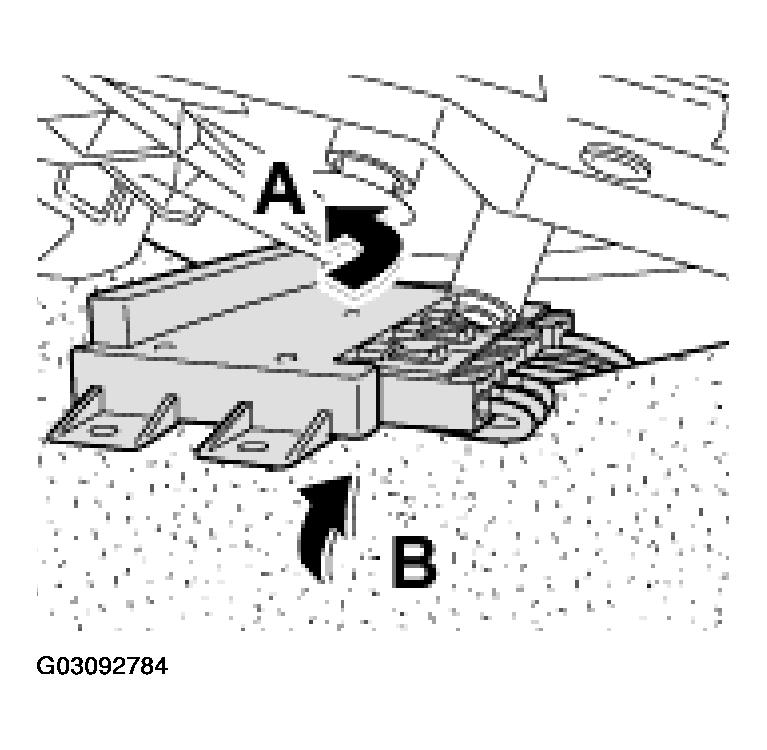

2. Push the control unit carefully over the interior carpet -B-  and position it in the holder -A-  . See Fig 2 .
   Fig 2: Pushing Antenna Control Unit Control Unit Carefully Over Interior Carpet

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

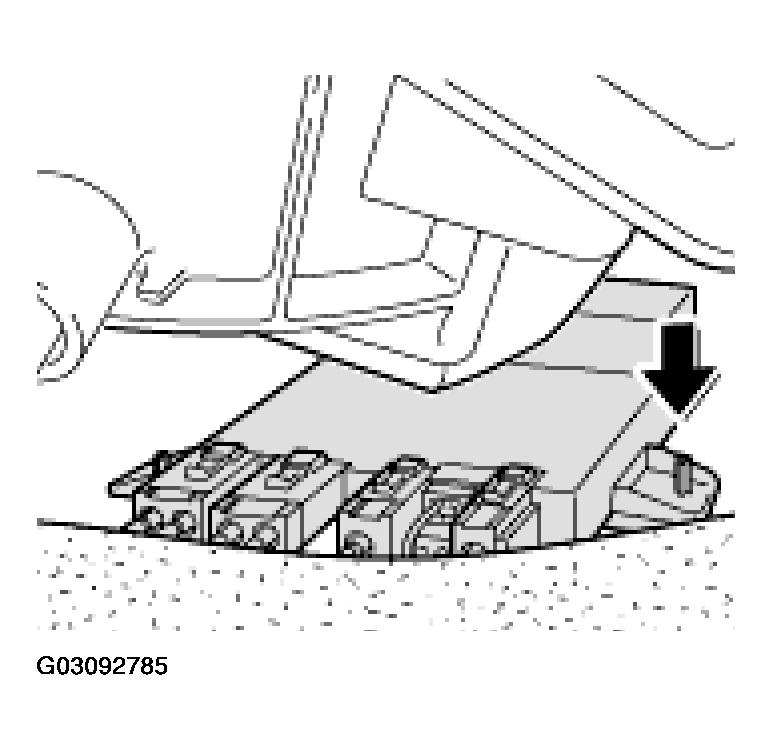

3. Fasten the control unit with the clip to the holder.
   Fig 3: Fastening Antenna Control Unit Control Unit With Clip To Holder

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

Install the right trim under the instrument panel. Refer to REMOVING AND INSTALLING DOOR TRIM PANEL .
